Description

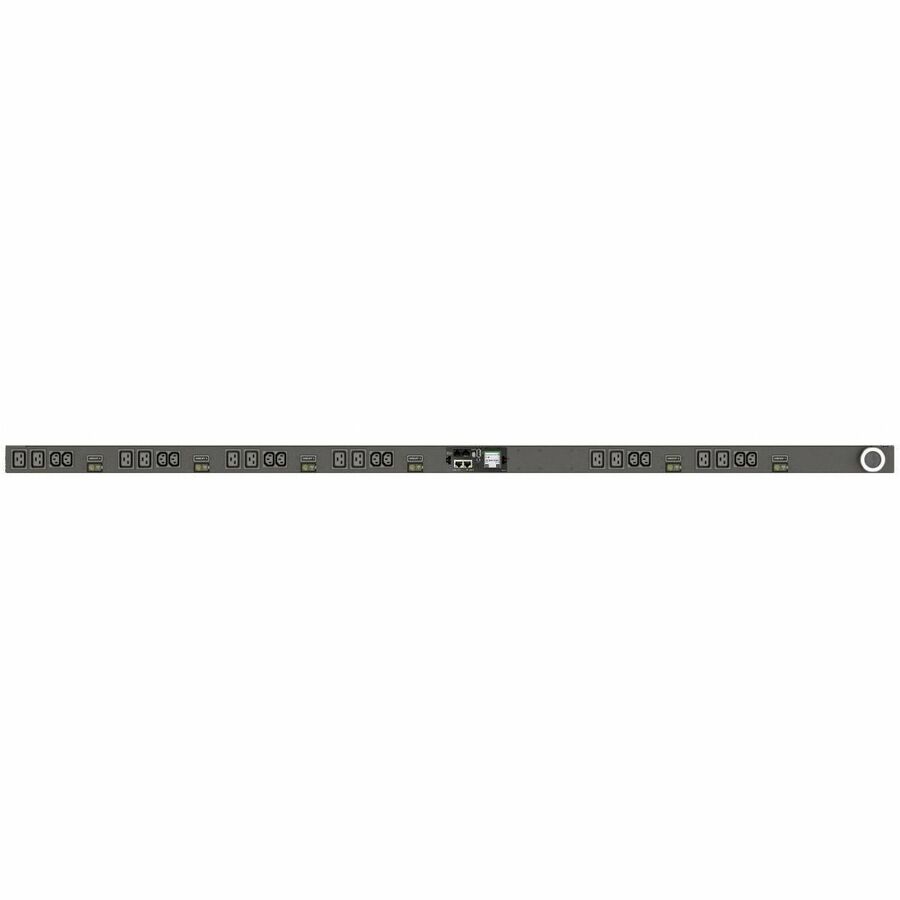

The Vertiv Geist VP4N60AF is a high-performance, 60A 208V three-phase vertical rack PDU engineered for critical IT infrastructure. This intelligent rPDU offers unit-level EC monitoring, delivering real-time visibility of input and per-phase power usage via a network-connected, high-visibility LCD display. It supports environmental sensors, dual Ethernet connectivity, and daisy chaining up to 50 units with self-configuration, minimizing IP address consumption. With a durable black powder-coated steel chassis, it provides 24 total outlets (12 × IEC C13 and 12 × IEC C19), and features advanced overload protection with six 20A magnetic breakers. Ideal for enterprise data centers and edge deployments demanding reliability, visibility, and flexibility.
| Specification | Details |
|---|---|
| Model Number | VP4N60AF |
| Input Voltage | 208V, 3-Phase Delta |
| Current Rating | 60A |
| Power Capacity | 17.2kW |
| Frequency | 50/60Hz |
| Plug Type | IEC60309 3P+E (IP44) |
| Receptacles | 12 × IEC C13, 12 × IEC C19 |
| Monitoring | Unit Level EC Monitoring (Input, Phase, Circuit/Breaker) |
| Display | Local LCD touchscreen (auto-oriented) |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet, RS232, USB, RSTP |
| Environmental Sensors Support | Yes (up to 16 sensors) |
| Mounting | Vertical, 72in / 1829mm (Toolless Brackets Included) |
| Enclosure | Steel with Black Powder Coat |
| Overcurrent Protection | (6) 20A Double Pole Magnetic Breakers |
| Data Formats Supported | JSON, JSON API, CSV, Syslog, SNMP, HTTPS |
| Compliance | UL 62368-1, RoHS, FCC Class A, TAA, Buy American Act |
| Operating Temperature | Max 60°C / 140°F |
| Warranty | 5 Years (with registration), otherwise 3 Years |
| Country of Origin | USA |
| Weight | 30 lbs (13.61 kg) |
