Description

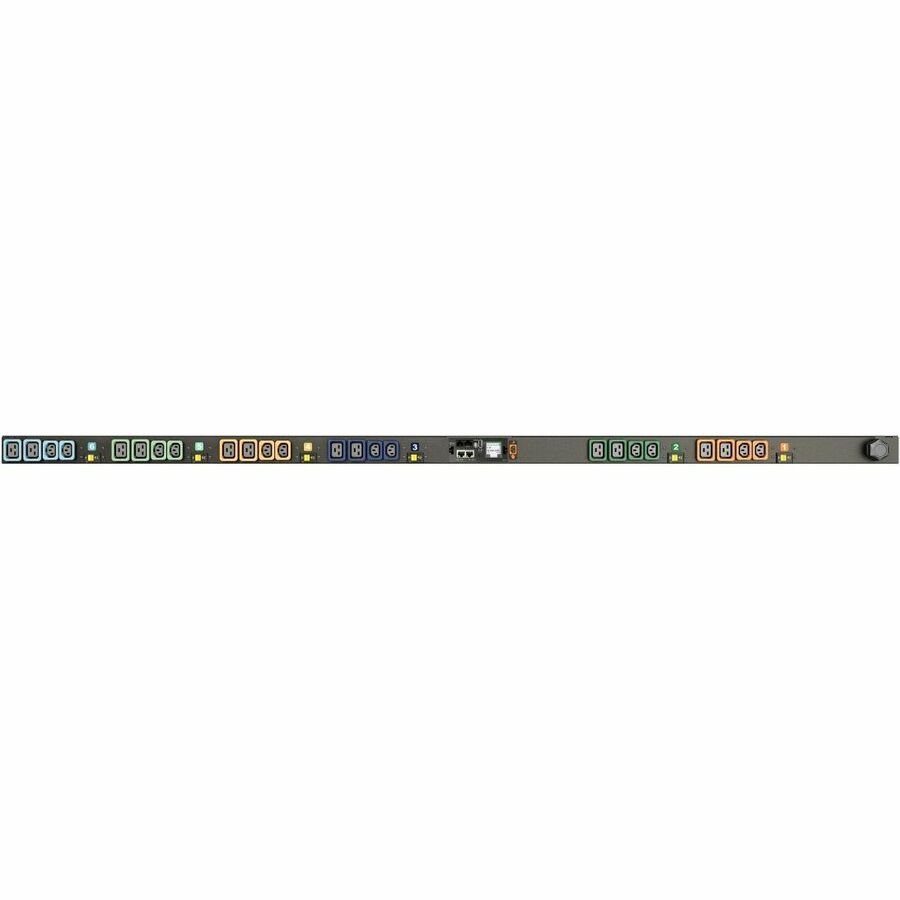

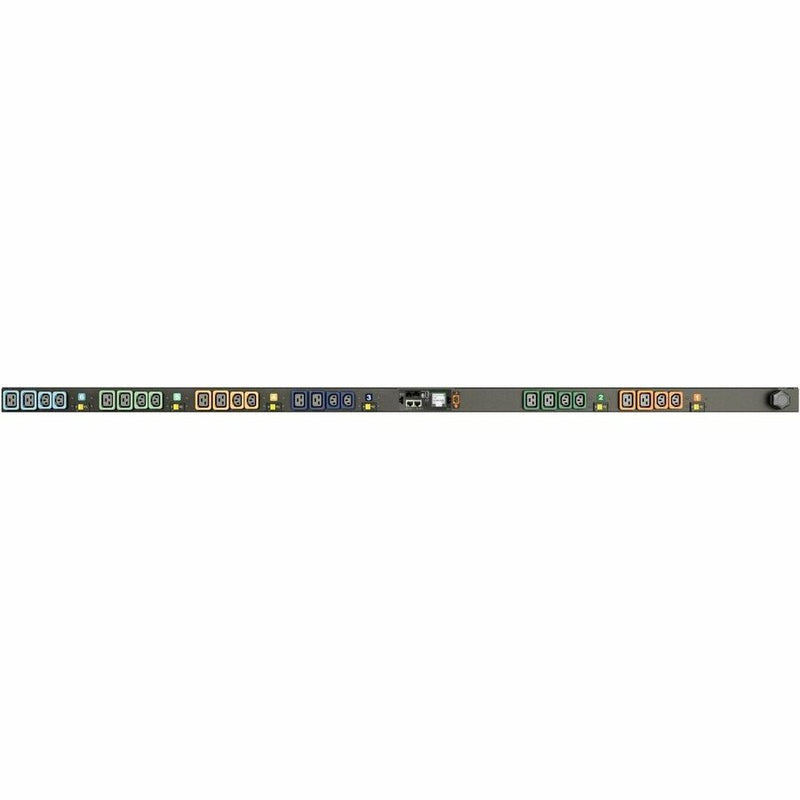

The Vertiv VP4N60A0 is a high-performance monitored rPDU designed to deliver reliable and intelligent power distribution for critical IT environments. Featuring 60A 208V Delta input, 24 locking IEC outlets (12x C13, 12x C19), and a robust 17.2kW capacity, it provides real-time unit-level monitoring and environmental sensing via an optional sensor port. The hot-swappable monitoring module allows future upgrades without downtime. With daisy-chain Ethernet support and a local touchscreen display, it enables full visibility and control in high-density deployments.
| Specification | Details |
|---|---|
| Part Number | VP4N60A0 |
| Input Voltage / Current | 208V Delta / 60A (3-Phase) |
| Power Capacity | 17.2 kW |
| Receptacle Count | 24 total – (12) Locking IEC C13, (12) Locking IEC C19 |
| Mounting Orientation | Vertical (72in / 1829mm) |
| Monitoring Type | EC Monitored, Unit-Level (kWh, W, VA, PF, A, V) |
| Breaker Protection | (6) 20A Double Pole Magnetic Breakers |
| Plug Type | IEC60309 3P+E, 60A, IP44 Splashproof |
| Power Cable | 10ft / 3m, 6/4 AWG |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet, Daisy-chain up to 50 |
| Environmental Monitoring | Optional via remote sensor (supports up to 16) |
| Display | Local LCD touchscreen, auto-oriented |
| Compliance | UL 62368-1, RoHS, FCC Part 15 Class A, TAA, BAA |
| Construction | Black Powder-Coated Steel, Toolless Mounting |
| Warranty | 5 years (if registered within 120 days) |
| Country of Origin | USA |
| Operating Temp (Max) | 60°C / 140°F |
| Weight | 30 lbs / 13.61 kg |
