Description

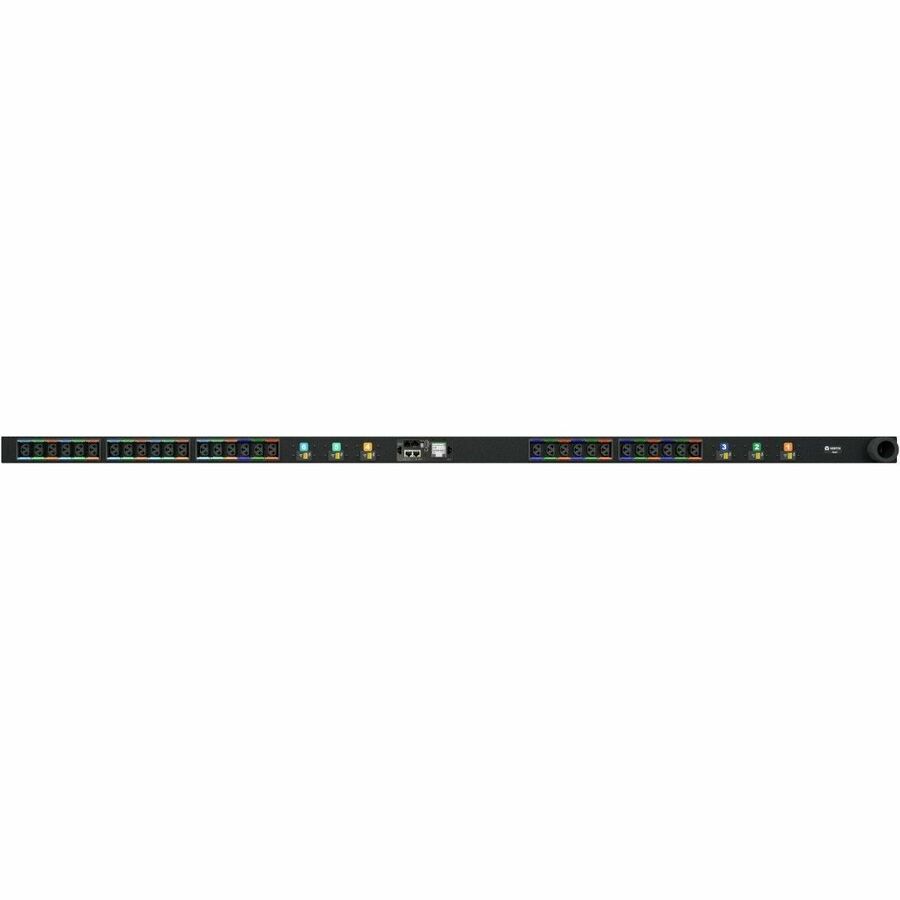

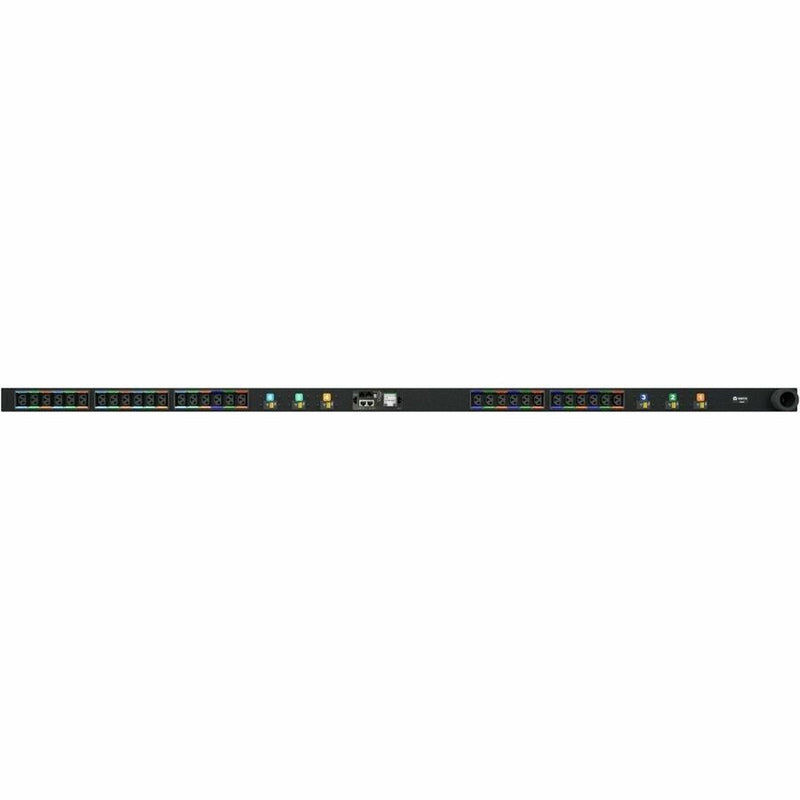

The Vertiv Geist VP4N60AD is a high-performance, EC-monitored vertical rack PDU designed for critical IT environments. With a 60A 208V Delta input and 17.2kW capacity, it delivers reliable and intelligent power distribution across (30) combination C13/C19 outlets. It features input, phase, and circuit-level monitoring, hot-swappable monitoring modules, and remote environmental sensor support. Designed for efficiency, uptime, and rapid deployment, it’s perfect for data centers and enterprise IT.
| Specification | Details |
|---|---|
| Model Number | VP4N60AD |
| Input Voltage / Current | 208V Delta / 60A 3-Phase |
| Power Capacity | 17.2kW |
| Plug Type | IEC60309 3P+E, IP67 Watertight |
| Power Cord Length | 10 ft (3m), 6/4 AWG |
| Receptacles | 30 × Combination C13/C19 |
| Receptacle Grouping | 6 Banks, 5 per Breaker, 10 per Phase |
| Monitoring | Unit, Phase, Circuit-Level; Input kWh, W, VA, PF, V, A |
| Breaker Configuration | 6 × 20A DP Magnetic Breakers, 10kAIC |
| Form Factor | Vertical, Zero U |
| Dimensions (HxWxD) | 70in × 2.10in × 3in (1778mm × 54mm × 76mm) |
| Mounting | Vertical Mount, Toolless Kit Included |
| Network Interfaces | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/S, SSH, Modbus TCP, RADIUS, etc. |
| Environmental Sensor Support | Yes, 1 RJ jack (up to 16 sensors) |
| Display | Local LCD Touchscreen, Auto Orientation |
| Chassis Material / Color | Powder-Coated Steel / Black |
| Certifications | UL 62368-1, FCC Class A, RoHS Compliant |
| Country of Origin | USA; TAA & BAA COTS Compliant |
| Warranty | 5 Years (with registration within 120 days) |
| Weight (Shipped) | 32 lbs (14.51 kg) |
