Description

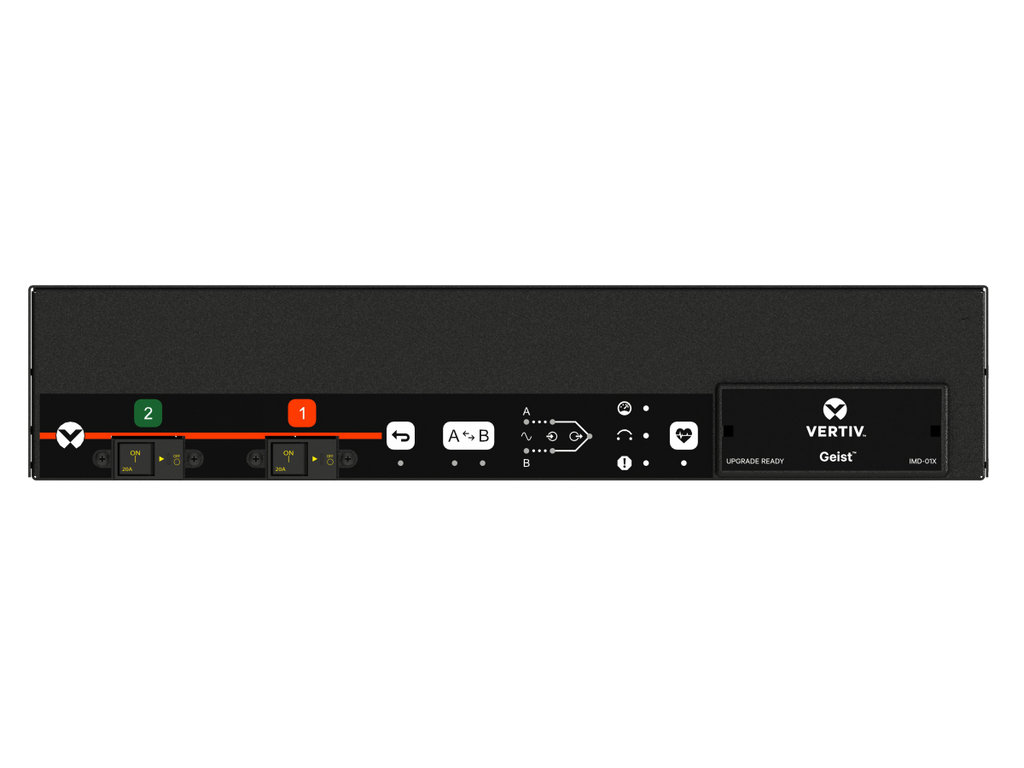

The Vertiv Geist rPDU VA1N3200 delivers reliable, rack-mountable power distribution for critical IT equipment. This basic rack PDU features 24 combination C13/C19 outlets, dual NEMA L6-30P inputs, and supports 230V AC with 30A input current, providing dependable performance in enterprise environments. Equipped with hot-swappable, upgradeable IMD technology, it allows easy transition to metered or monitored power management. Built with overcurrent protection, TAA compliance, and RoHS environmental certification, the VA1N3200 ensures secure, scalable, and compliant deployment in sensitive installations.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Product Series | rPDU |
| Model Number | AN01X2R1-24CF18-3TL6TL6A011-D |
| Part Number | VA1N3200 |
| Product Type | Basic Rack PDU |
| Input Plug Type | NEMA L6-30P (x2) |
| Input Voltage Range | 200–240V AC |
| Rated Input Voltage | 230V AC |
| Output Voltage | 208V AC |
| Input Current | 30A |
| Power Rating | 4900 Watts |

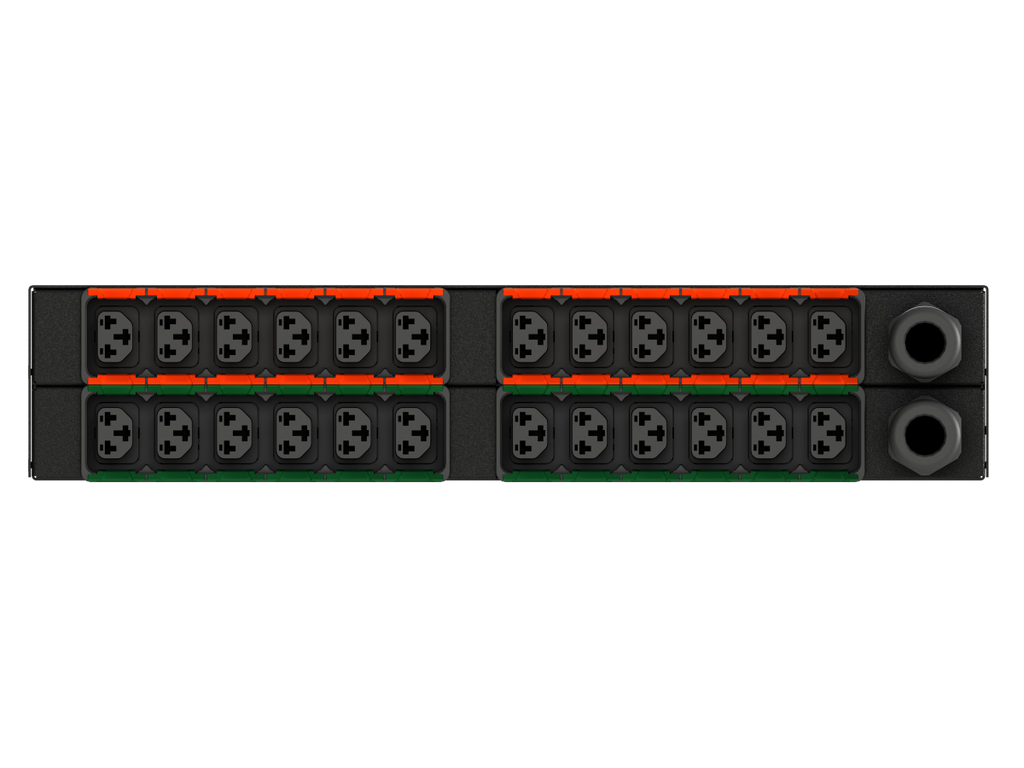

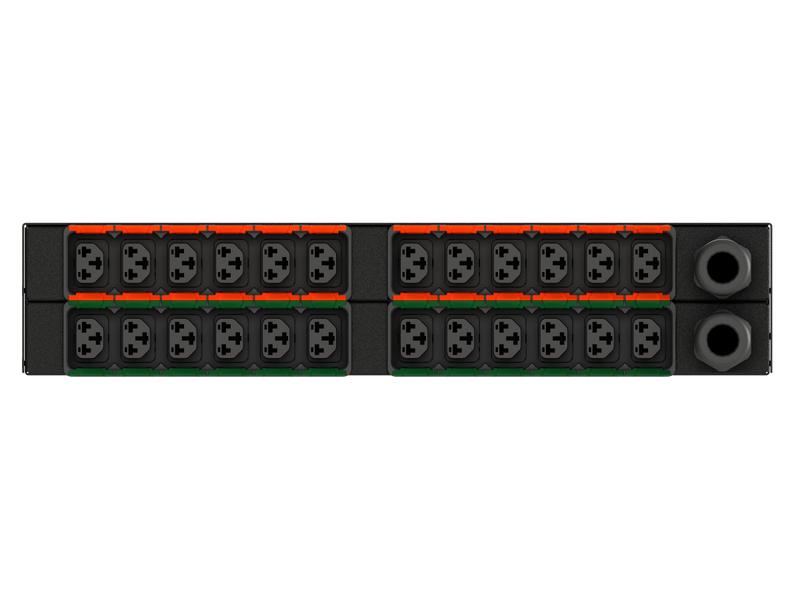

| Receptacles | 24 x Combination C13/C19 |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Hot-swappable |
| Product Color | Black Powder Coat |
| Height | 3.4 in |
| Width | 17 in |
| Depth | 18 in |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS, Environmentally Friendly |
| Country of Origin | United States |
| Warranty | 5-Year Limited (3-Year if not registered within 120 days) |
| Shipping Weight | 24 lbs |
