Description

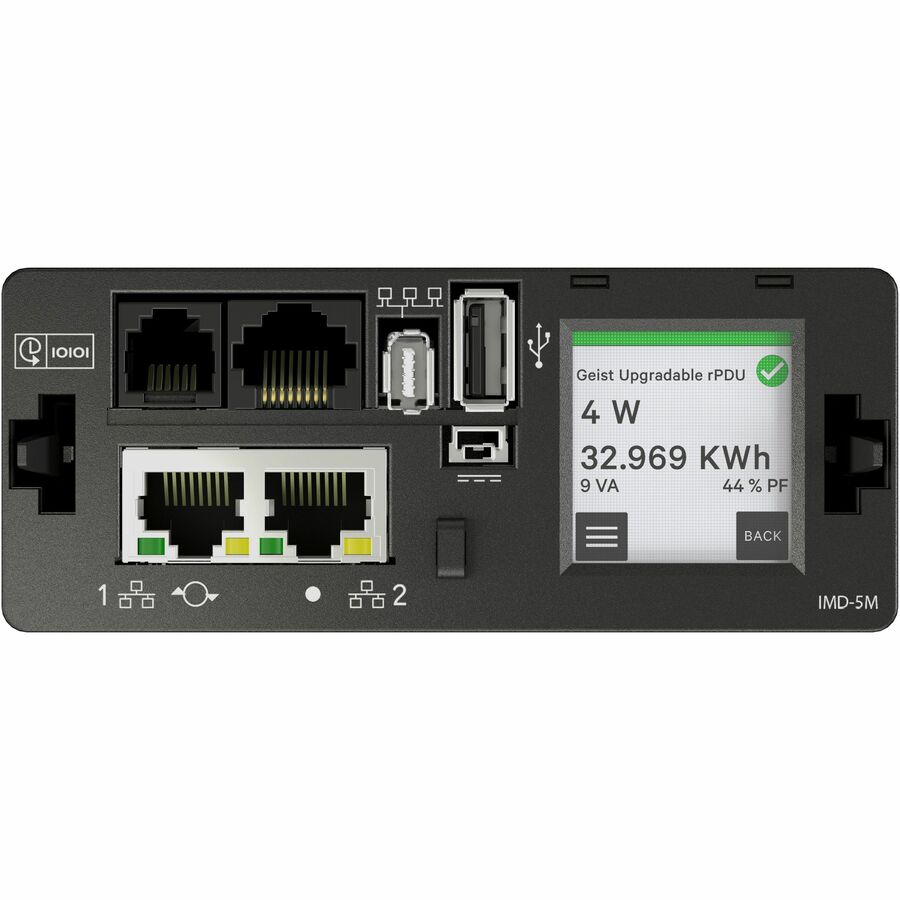

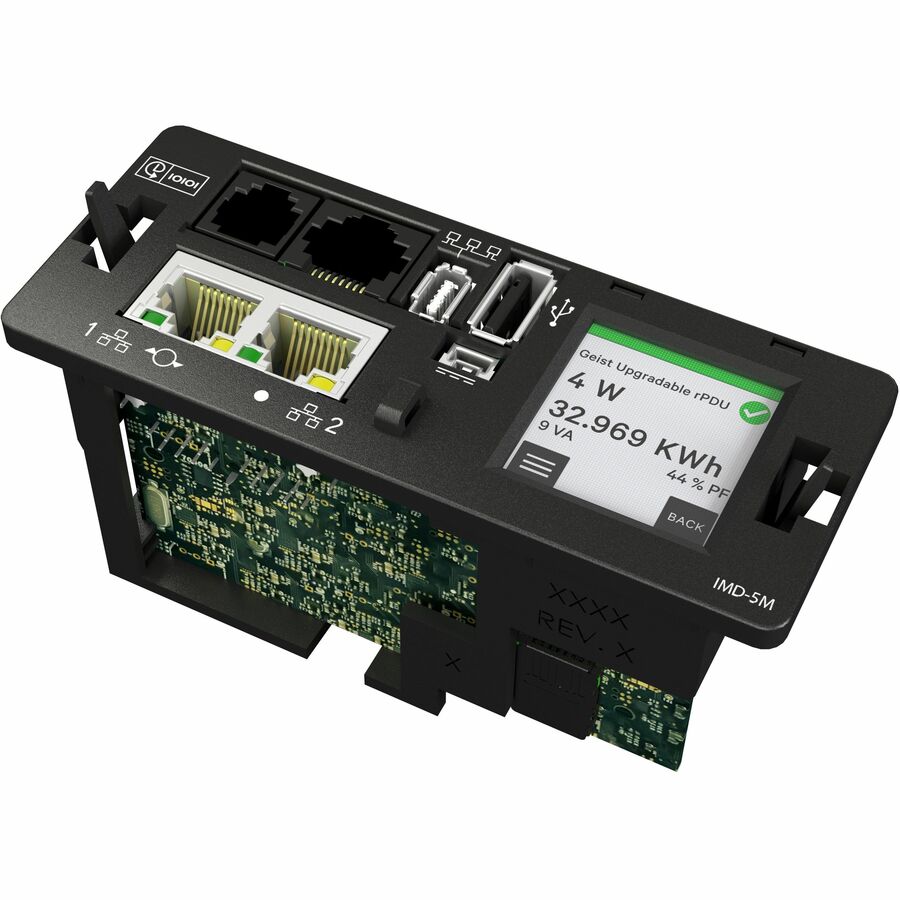

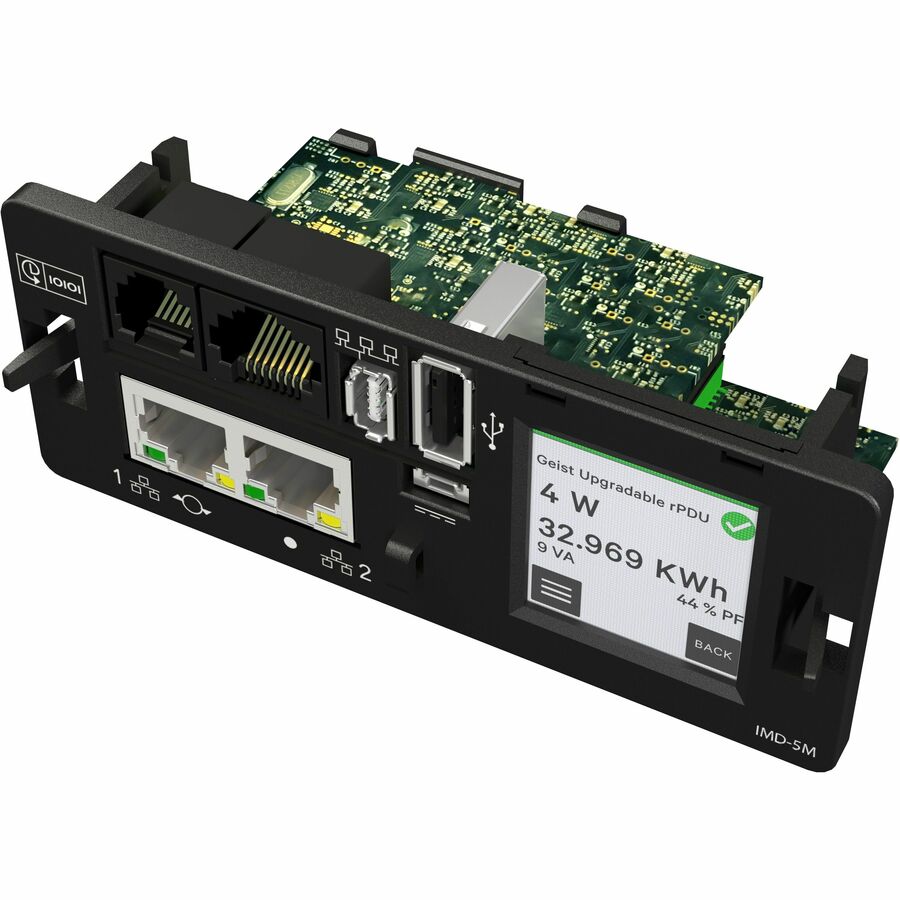

The Vertiv Geist VP7UU0A2 is a switched rack PDU (rPDU) delivering reliable, intelligent power distribution and individual outlet-level control for critical IT equipment. With 24 combination C13/C19 receptacles, a universal inlet, and integrated outlet-level monitoring, it offers real-time visibility and control of power usage. Featuring hot-swappable IMD support, environmental monitoring capabilities, daisy-chain connectivity, and a high-visibility local display, the VP7UU0A2 is ideal for dynamic data center environments requiring efficient energy management and operational uptime.
| Specification | Details |
|---|---|
| Model Number | VP7UU0A2 |
| Product Type | Switched rPDU, Outlet Level Monitoring |
| Mounting | Vertical, Zero U |
| Input Power | Variable (Max 11.0kW depending on configuration) |
| Power Configurations | 48A 1-Phase (240V), 24A 3-Phase Delta (240V), 16A 3-Phase WYE (415V) |
| Frequency | 50/60 Hz |
| Outlets | 24 × Combination C13/C19 with U-Lock, Alternating Phase, 3 Circuits |
| Monitoring Capabilities | Input, Outlet, Circuit-Level, Environmental Sensors (Optional) |
| Remote Management | Individual Outlet Switching with Delay & Sequencing |
| Display | LCD Touchscreen, Auto-Oriented |
| Connectivity | Dual Ethernet (10/100/1000 Mbps), RS232 via RJ45, USB, RJ Sensor Ports |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, RADIUS, Modbus TCP, JSON API, Syslog & more |
| Environmental Sensors | Optional via RJ Ports (Supports up to 16 sensors) |
| Certifications | UL 62368-1, CE, UKCA, RoHS, FCC Class A, IEC 62368-1, EN 55032/55035 |
| Chassis Material & Color | Heavy Steel with Black Powder Coat |
| Dimensions (HxWxD) | 72in x 2in x 2.6in (1829mm x 51mm x 66mm) |
| Weight | 27 lbs (12.25 kg) |
| Warranty | 5-Year Limited (with registration within 120 days), else 3 years |
| Compliance | TAA & Buy American Act (BAA) COTS Compliant |
