Description

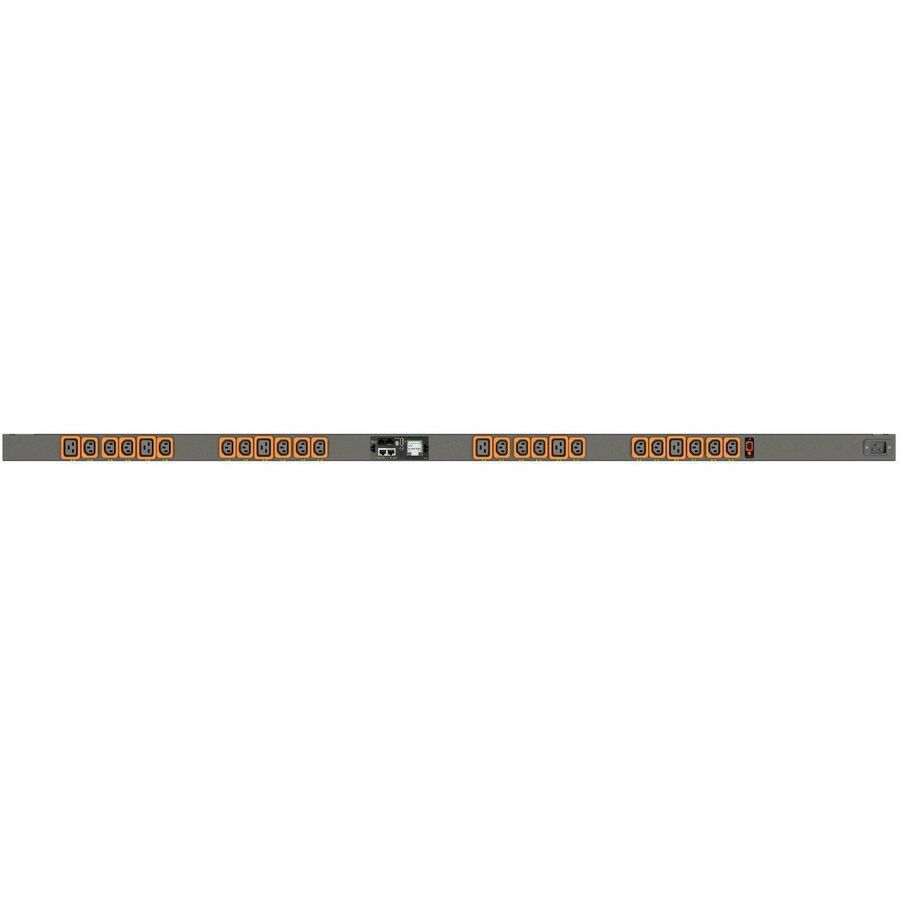

The Vertiv Geist VP7U20A2 is a switched outlet-level monitored rPDU designed for intelligent power distribution in critical IT environments. Featuring 18 locking IEC C13 and 6 locking IEC C19 outlets, this vertical rPDU supports remote outlet control, real-time power usage monitoring, and environmental sensor integration. With dual Ethernet ports, daisy chaining, and hot-swappable monitoring, it delivers flexibility, reliability, and visibility. Ideal for data centers demanding high availability and operational efficiency.
| Specification | Details |
|---|---|
| Model Number | VP7U20A2 |
| Part Number | MUU5MGB0-24PH67-2C20A9A00-S |
| Form Factor | Vertical, Zero U |
| Dimensions (LxWxD) | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Mounting | Toolless, 7938 Vertical Bracket Kit |
| Input Power | 16A or 20A, 100-240V, 50/60Hz |
| Input Plug Type | IEC60320 C20 (cord sold separately) |
| Outlets | (18) Locking IEC C13, (6) Locking IEC C19 |
| Output Monitoring | Per outlet (kWh, W, VA, PF, V, A) |
| Switching | Individual outlet control with sequencing and delays |
| Monitoring Features | Input & outlet-level power monitoring, environmental sensor support |
| Display | Local LCD touchscreen display |
| Networking | Dual Ethernet (10/100/1000 Mbps), RS232, USB |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP/S, SSH, RADIUS, Modbus TCP, Syslog, etc. |
| Compliance | UL 62368-1, CE, RoHS, FCC Part 15 Class A, UKCA, RCM, China RoHS |
| Environmental Monitoring | Optional sensors supported (up to 16) |
| Operating Temperature | Up to 60°C (140°F) |
| Chassis Color | Black Powder Coat |
| Weight (Shipped) | 18 lbs (8.16 kg) |
| Warranty | 5 years (with registration), otherwise 3 years |
