Description

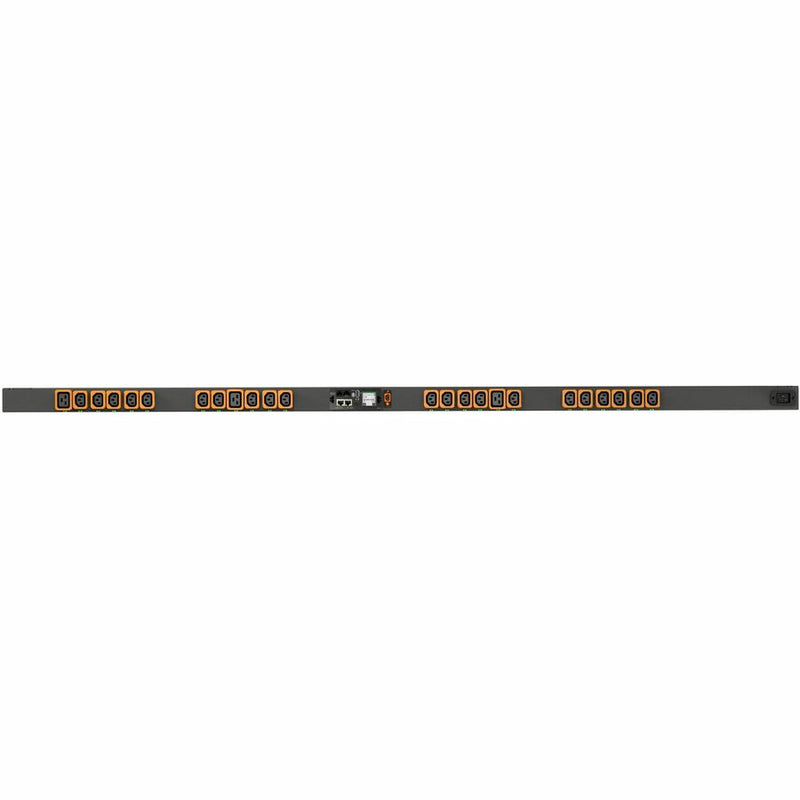

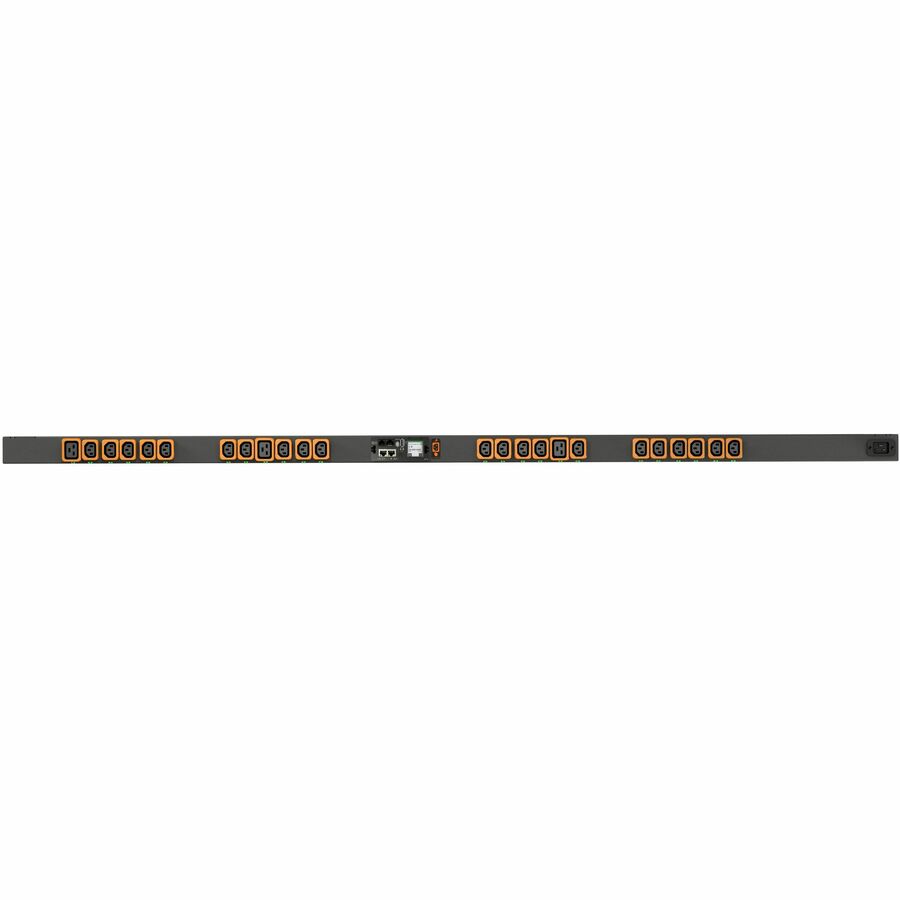

The Vertiv Geist VP7U20A1 is a switched, outlet-level monitored rack PDU (rPDU) designed for high-availability power distribution in data centers. Featuring 24 locking outlets (21 × IEC C13, 3 × IEC C19) and individual outlet control, it allows for remote power cycling and real-time power usage monitoring. The unit supports environmental monitoring via remote sensors, offers daisy-chaining of up to 50 rPDUs, and includes a hot-swappable monitoring device for future upgrades. Ideal for applications requiring efficient energy management, secure remote access, and maximum uptime.
| Specification | Details |
|---|---|
| Model Number | VP7U20A1 |
| Part Number | MUU5MGB0-24PK37-2C20A9A00-S |
| Function | Switched, Outlet-Level Monitoring |
| Form Factor | Vertical, Zero U |
| Input Plug Type | IEC C20 (Cord sold separately) |
| Input Voltage Range | 100–240V |
| Input Current | 16A or 20A |
| Max Power Capacity | 1.9kW (120V), 3.3kW (208V), 3.6kW (230V) |
| Outlet Configuration | 21 × IEC C13 (Locking), 3 × IEC C19 (Locking) |
| Monitoring | Input & Outlet-level (kWh, W, VA, PF, V, A) |
| Remote Management | Outlet switching, sequencing, reboot |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps) |
| Supported Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, SMTP, Modbus TCP, etc. |
| Environmental Monitoring | Yes (via optional sensors) |
| Display | Local high-visibility LCD display |
| Dimensions (L×W×D) | 66.25in × 2in × 2.6in (1683mm × 51mm × 66mm) |
| Weight | 18 lbs (8.16 kg) |
| Certifications | UL, c-UL, CE, RoHS, UKCA, FCC Class A, EN 55032/55035 |
| Warranty | 5-Year (with registration), 3-Year otherwise |
| Chassis Finish | Black Powder-Coated Steel |
