Description

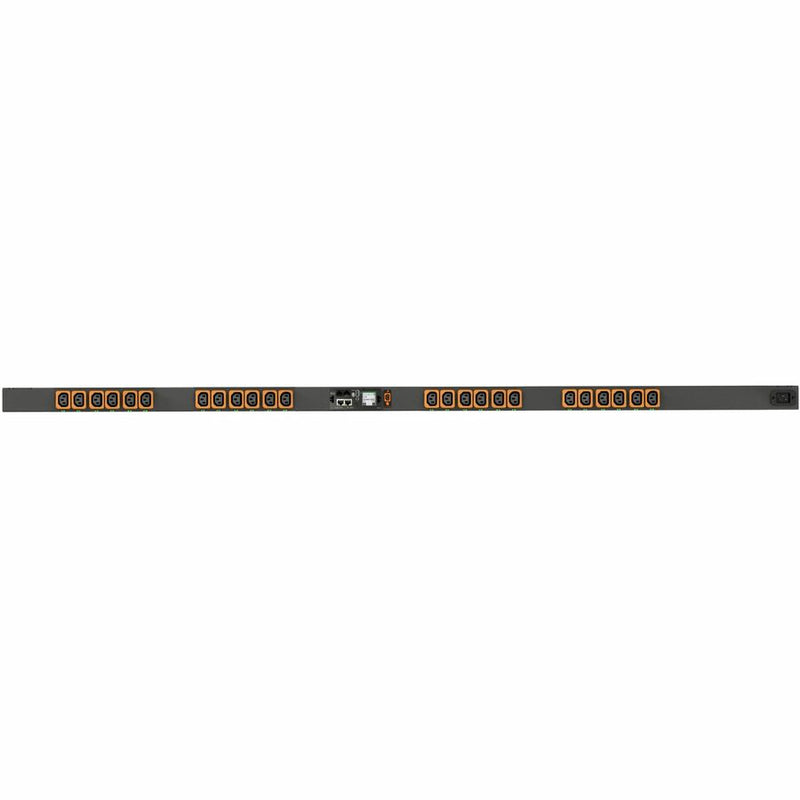

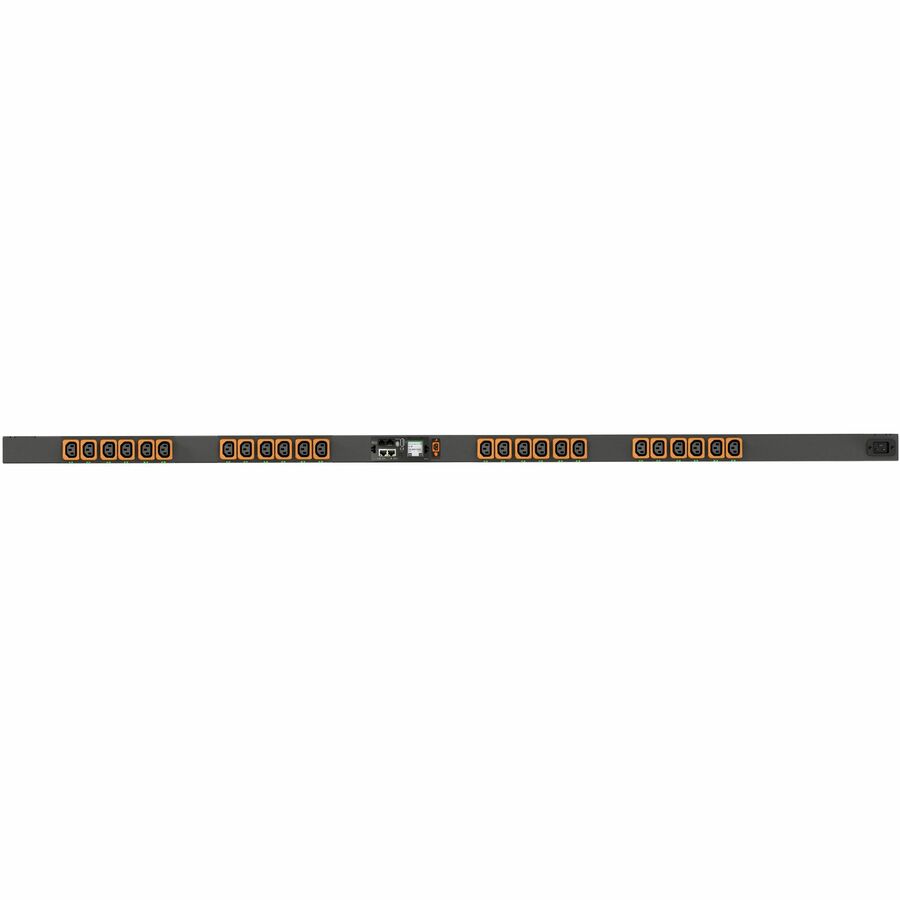

The Vertiv Geist VP7U20A0 is a switched, outlet-level monitored rPDU designed for intelligent power distribution in critical IT environments. This vertical, 66-inch unit delivers power to 24 locking IEC C13 outlets with secure U-Lock functionality, backed by a C20 plug input. Featuring hot-swappable monitoring (IMD), the VP7U20A0 enables real-time input and outlet-level power metrics, individual outlet switching, and remote access via robust Ethernet protocols. Ideal for data centers requiring precise control and visibility over power consumption, it supports environmental sensor integration and daisy chaining of up to 50 devices.
| Specification | Details |
|---|---|
| Model Number | VP7U20A0 |
| Product Type | Switched rPDU, Outlet-Level Monitoring |
| Form Factor | Vertical, 0U (66.25in / 1683mm) |
| Plug Type | IEC60320 C20 |
| Input Voltage Range | 100–240V |
| Current Rating | 16A or 20A |
| Power Capacity | 1.9kW (120V), 3.3kW (208V), 3.6kW (230V) |
| Frequency | 50/60Hz |
| Receptacles | 24 x Locking IEC C13 (U-Lock, orange ID) |
| Monitoring | Input & Outlet (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet Switching with Sequential Power-Up |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols | SNMP, HTTPS, SSH, Modbus TCP, RADIUS, DHCP, etc. |
| Remote Sensor Support | 1 RJ port (supports up to 16 sensors) |
| Display | Local auto-oriented LCD, 24 LEDs |
| Mounting Hardware | Toolless, vertical mounting (7938 bracket included) |
| Finish / Material | Black powder-coated heavy steel |
| Certifications | UL/cUL 62368-1, CE, FCC Class A, RoHS, UKCA, RCM, China RoHS |
| Operating Temp | Up to 60°C (140°F) |
| Warranty | 5 years (with registration within 120 days, otherwise 3 years) |
| Weight | 18 lbs (8.16 kg) |
