Description

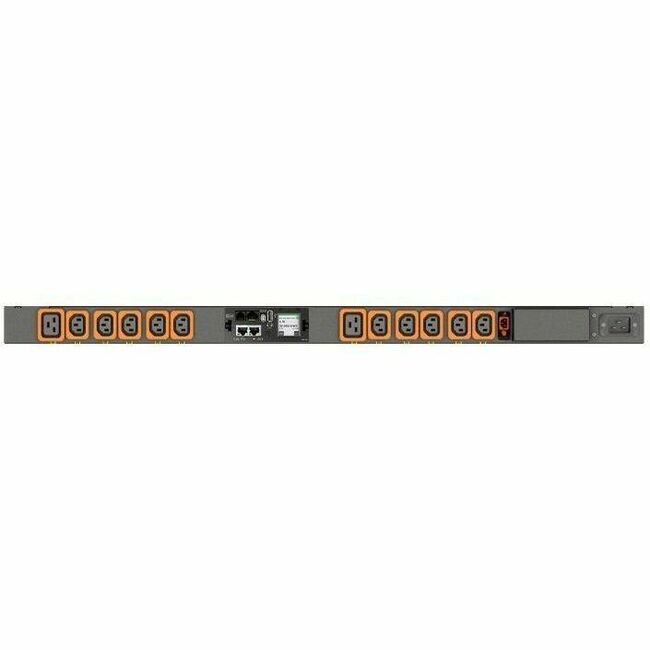

The Vertiv Geist VP7U20A3 is a vertical, switched rPDU designed to deliver reliable power distribution with outlet-level control and monitoring. Equipped with (10) IEC C13 and (2) IEC C19 locking outlets, it supports input voltages from 100–240V and current ratings of 16A or 20A. Advanced features include remote outlet switching, real-time power usage insights, optional environmental sensors, and daisy-chaining of up to 50 units. Ideal for high-density IT deployments requiring remote power management and uptime assurance.
| Feature | Details |
|---|---|
| Part Number | VP7U20A3 (MUU5MGM0-12P027-2C20A9A00-S) |
| Form Factor | Vertical, 0U |
| Mounting | Toolless (622mm center-to-center); includes bracket kit |
| Input Plug Type | IEC60320 C20 |
| Input Voltage | 100–240V |
| Current Rating | 16A or 20A |
| Power Capacity | 1.9kW (120V), 3.3kW (208V), 3.6kW (230V) |
| Frequency | 50/60Hz |
| Outlet Configuration | (10) Locking IEC C13, (2) Locking IEC C19 |
| Monitoring | Switched, Input & Outlet-level monitoring |
| Display | Local high-visibility LCD (auto-oriented) |
| Sensors Supported | Up to 16 via RJ connection jack |
| Daisy-Chaining | Up to 50 rPDUs (RSTP supported) |
| Network Interfaces | Dual Ethernet (10/100/1000 Mbps), USB, RS232 via RJ45 |
| Protocols Supported | DHCP, SNMP, HTTP/HTTPS, Modbus TCP, Syslog, TACACS+, etc. |
| Compliance & Safety | UL 62368-1, CE, RoHS, FCC Part 15 Class A, UKCA, RCM, China RoHS |
| Operating Temperature | Up to 60°C / 140°F |
| Chassis Dimensions (L×W×D) | 34in × 2in × 2.6in (864mm × 51mm × 66mm) |
| Finish | Black powder-coated heavy steel |
| Weight | 18 lbs (8.16 kg) |
| Warranty | 5-year (with registration within 120 days), otherwise 3-year |
