Description

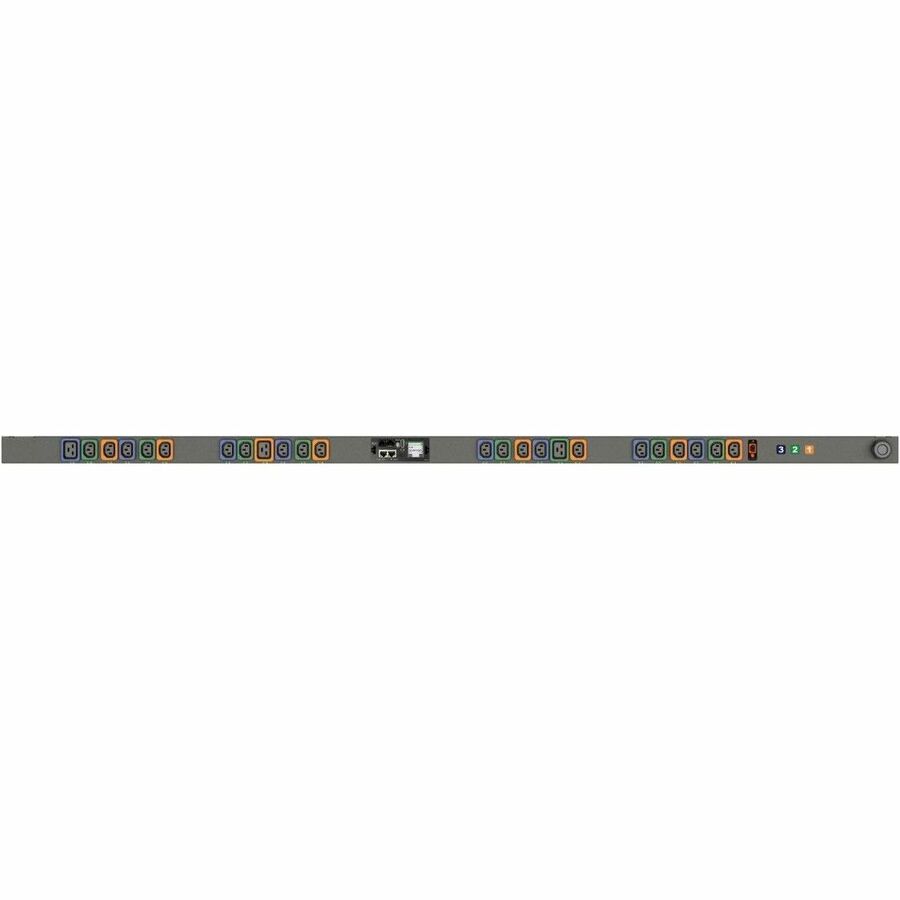

The Vertiv VP7N20A1 is a switched, outlet-level monitored rPDU that offers advanced remote management, power monitoring, and outlet-level control for critical IT equipment. With 24 locking IEC outlets (21 C13 and 3 C19), a 10ft L21-20P power cord, and a 5.7kW load capacity, this vertical 66-inch unit supports 3-phase WYE input and environmental monitoring via optional sensors. Built with hot-swappable Geist Upgradeable monitoring, fault-tolerant daisy chaining, and dual Ethernet ports, it ensures maximum uptime and adaptability in demanding data center environments.
| Specification | Details |
|---|---|
| Part Number | VP7N20A1 |
| Form Factor | Vertical (Zero U) |
| Mounting | Toolless, 7938 Bracket Kit Included |
| Dimensions (LxWxD) | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Weight | 18 lbs (8.16 kg) |
| Input Plug Type | NEMA L21-20P |
| Input Voltage | 120/208V, 3-Phase WYE |
| Input Current | 20A |
| Power Capacity | 5.7kW |
| Frequency | 50/60Hz |
| Outlets | 21 × Locking IEC C13, 3 × Locking IEC C19 |
| Monitoring | Input, Circuit, and Outlet-level (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet Control with Sequencing |
| Display | LCD with Auto Orientation |
| Network | Dual Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP v1/v2c/v3, Modbus TCP, HTTP/S, RADIUS, SSH, Syslog, more |
| Environmental Sensors | Supports up to 16 (optional) |
| Finish | Heavy Steel, Black Powder Coat |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 Years (if registered within 120 days) |
| Country of Origin | USA (TAA and BAA Compliant) |
