Description

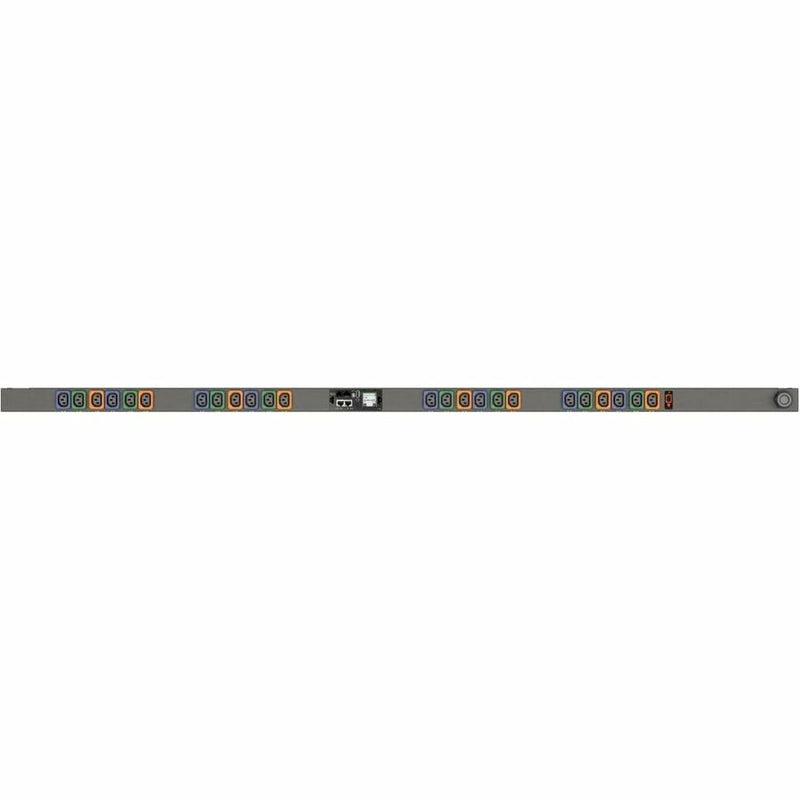

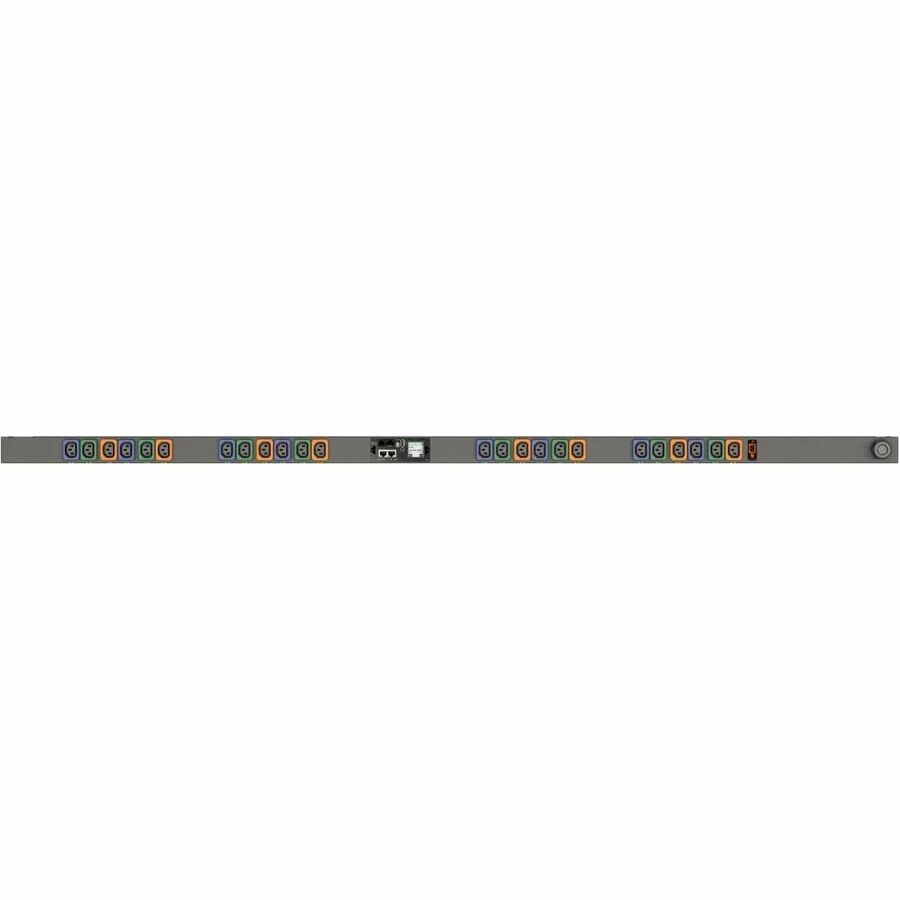

The Vertiv VP7N20A0 PowerIT Switched rPDU delivers reliable power distribution and granular control over your IT equipment. Designed for high-density data centers, this vertical Zero U rack PDU features 24 locking IEC C13 outlets, 20A three-phase 120/208V WYE input, and a 5.7kW capacity. Enjoy precise outlet-level monitoring and remote switching with ANSI C12.1 and IEC 62053-21-compliant accuracy. With hot-swappable IMD capability, daisy-chain Ethernet support, environmental monitoring via optional sensors, and color-coded outlets per circuit, the VP7N20A0 is built for uptime, efficiency, and scalability.
| Specification | Details |
|---|---|
| Model Number | VP7N20A0 |
| Form Factor | Vertical, Zero U |
| Input Voltage | 120/208V WYE |
| Current Rating | 20A, 3-Phase |
| Power Capacity | 5.7kW |
| Input Plug Type | NEMA L21-20P |
| Output Receptacles | 24 x Locking IEC C13 |
| Mounting | Vertical (66.25 in height) |
| Monitoring | Input, Outlet & Circuit-level monitoring |
| Switching | Individual Outlet Switching |
| Power Measurements | kWh, W, VA, PF, V, A (1% Accuracy) |
| Display | LCD Auto-Oriented High Visibility Display |
| Network Connectivity | Dual Ethernet (10/100/1000Mbps), Serial |
| Supported Protocols | SNMP, HTTP/S, RADIUS, Modbus TCP, more |
| Environmental Sensors | RJ Port (supports up to 16 sensors) |
| Build Finish | Heavy Steel, Black Powder Coat |
| Compliance | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5 Years (with registration) |
| Dimensions (L x W x D) | 66.25 x 2 x 2.6 in (1683 x 51 x 66 mm) |
| Weight | 18 lbs (8.16 kg) |
