Description

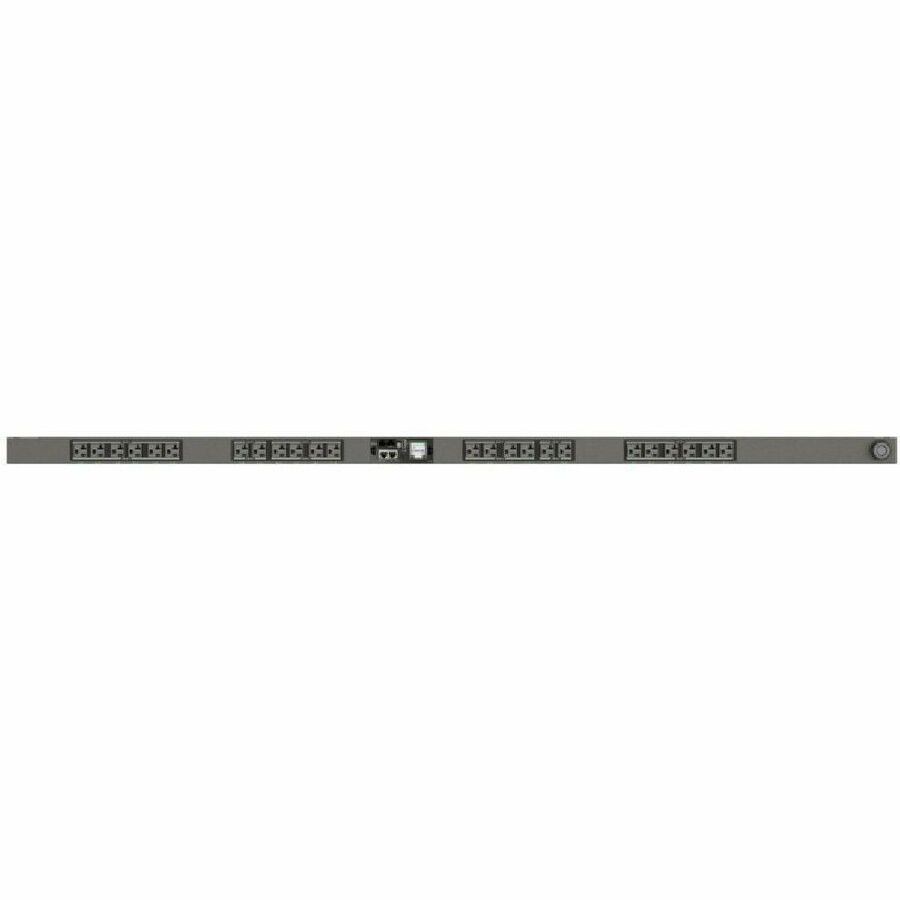

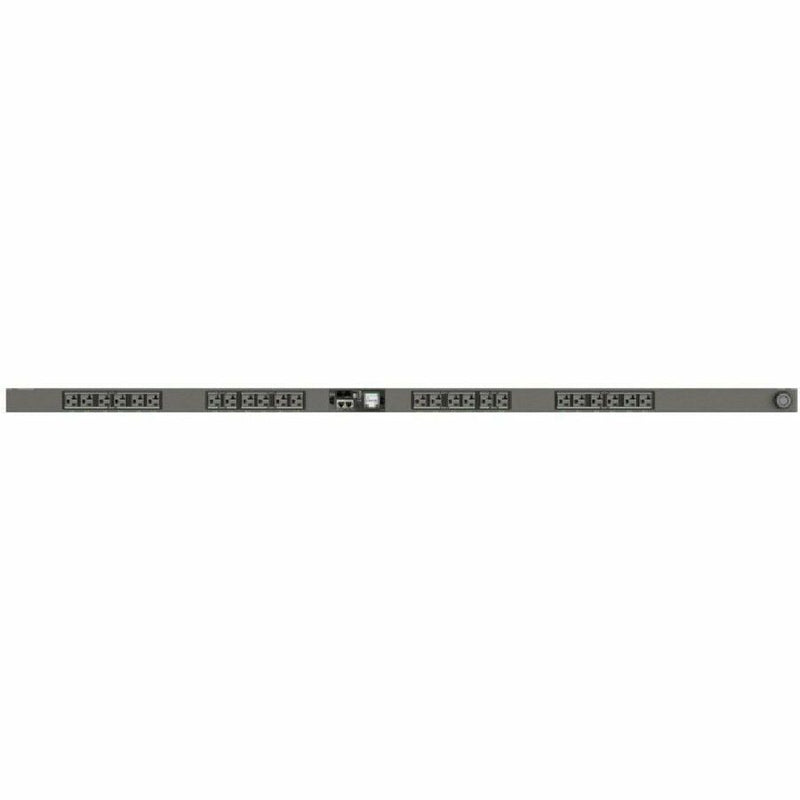

The Vertiv VP7N20A3 PowerIT™ Switched rPDU delivers reliable outlet-level power control and monitoring, ideal for mission-critical IT environments. This vertical 0U rPDU features (24) NEMA 5-20R receptacles and a 10ft power cord with a NEMA 5-20P plug. It supports remote outlet switching, detailed per-outlet power monitoring, and environmental sensing via optional sensors. Engineered with upgradeable hot-swap IMD technology, it adapts with your infrastructure. Daisy chain up to 50 units and manage everything through a high-visibility local display and robust network connectivity.
| Feature | Specification |
|---|---|
| Part Number | VP7N20A3 |
| Input Voltage | 100–120V |
| Current Rating | 20A |
| Power Capacity | 1.9kW |
| Receptacles | (24) NEMA 5-20R |
| Plug Type | NEMA 5-20P |
| Cord Length | 10ft / 3m |
| Mounting | Vertical (Zero U) |
| Monitoring | Outlet-level (kWh, W, VA, PF, V, A) |
| Remote Management | Individual outlet switching, sequential startup |
| Display | LCD with auto-orientation |
| Network Connectivity | Dual Ethernet, Daisy-chain up to 50 units |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP(S), RADIUS, Modbus TCP |
| Environmental Monitoring | Optional remote sensors (supports up to 16) |
| Build Material | Steel with black powder coat finish |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Dimensions (L x W x D) | 66.25 x 2 x 2.6 in / 1683 x 51 x 66 mm |
| Weight | 18 lbs / 8.16 kg |
| Operating Temp | Up to 60°C / 140°F |
| Warranty | 5 years with registration (otherwise 3 years) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
