Description
The Vertiv Geist VP7UV0A3 is a high-performance switched rack PDU designed for advanced data center power management. Featuring 24 combination C13/C19 outlets, this vertical unit supports up to 22.0kW across a variety of power configurations including single-phase and three-phase inputs. It offers remote individual outlet control, outlet-level metering, and support for environmental monitoring. Daisy-chain connectivity, dual Ethernet ports, and a local touchscreen display provide flexible and reliable operation. With universal input and tool-less mounting, this PDU is ideal for scalable, mission-critical IT environments.
| Feature | Details |
|---|---|
| Model | VP7UV0A3 |
| PDU Type | Switched, Vertical, 0U |
| Outlets | 24 × Combination C13/C19 |
| Input Plug Type | Universal Inlet |
| Input Power Capacity | 22.0kW Max (32A WYE 415V / 48A Delta 240V / 63A 1Ø 240V) |
| Power Monitoring | Input & Outlet-level metering (kWh, W, VA, PF, V, A) |
| Switching | Individual outlet switching with remote management |
| Circuit Protection | 6 × 16A Double Pole Magnetic Breakers (10kAIC) |
| Mounting | Vertical (0U), Toolless Mounting Brackets Included |

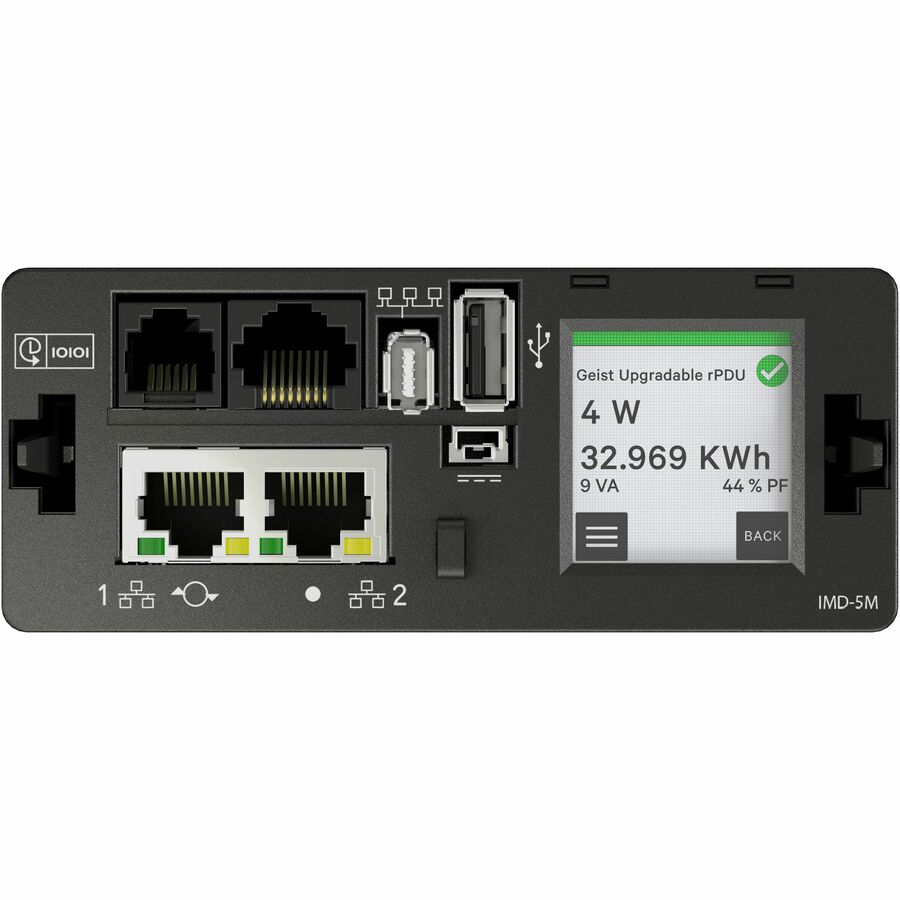

| Display | Local auto-oriented LCD touchscreen |
| Connectivity | Dual 10/100/1000 Mbps Ethernet, RS232 (RJ45), USB |
| Environmental Sensors | Optional sensors supported (1 × RJ port, up to 16 sensors) |
| Network Protocols | HTTP/S, SNMP v1/v2c/v3, SSH, Syslog, RADIUS, TACACS+, Modbus TCP, etc. |
| Material & Finish | Heavy Steel with Black Powder Coat |
| Dimensions (L×W×D) | 66.25 in × 2 in × 2.6 in (1683 mm × 51 mm × 66 mm) |
| Weight | 27 lbs (12.25 kg) |
| Certifications | UL, c-UL, CE, RoHS, FCC Part 15 Class A, UKCA, RCM, China RoHS |
| Warranty | 5-Year (with registration), 3-Year standard |
| Country of Origin | USA (TAA and BAA COTS Compliant) |
