Description

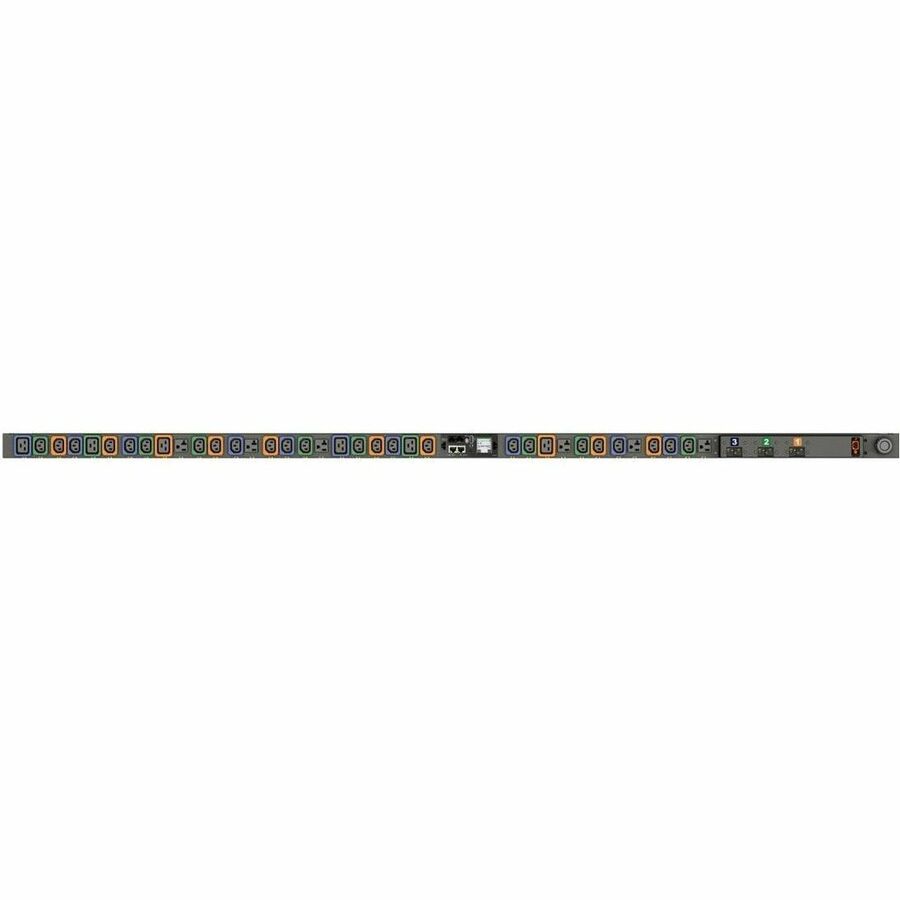

The Vertiv VP7N30A4 is a high-performance Switched Rack Power Distribution Unit (rPDU) delivering advanced outlet-level control and monitoring. With 30A three-phase WYE input at 120/208V and an 8.6kW capacity, it provides 36 receptacles (24x IEC C13, 6x IEC C19, 6x NEMA 5-20R) and supports remote outlet switching and power monitoring for energy optimization. Featuring integrated environmental monitoring support and daisy-chain Ethernet connectivity, this vertical rPDU is ideal for intelligent, fault-tolerant power management in critical IT environments.
| Specification | Details |
|---|---|
| Model | VP7N30A4 |
| Input Voltage / Current | 120/208V WYE, 30A (3-Phase) |
| Load Capacity | 8.6kW |
| Frequency | 50/60Hz |
| Receptacles | 24x IEC C13, 6x IEC C19, 6x NEMA 5-20R |
| Plug Type | NEMA L21-30P (Twist-lock) |
| Monitoring | Outlet-level power monitoring, circuit/breaker monitoring |
| Remote Management | Individual outlet switching with sequencing options |
| Display | Local touchscreen LCD display |
| Network Protocols | SNMP v1/v2c/v3, HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| Network Ports | Dual Gigabit Ethernet, RS232 via RJ45 |
| Environmental Sensors | Supports up to 16 via RJ connection (optional) |
| Form Factor | Vertical Zero U, 72in (1829mm) |
| Mounting | Toolless, 61.25in and 64.75in centers |
| Chassis | Black powder-coated steel |
| Certifications | UL & c-UL 62368-1, FCC Class A, RoHS, TAA & BAA Compliant |
| Warranty | 5-year limited (with registration), otherwise 3 years |
| Country of Origin | USA |
