Description

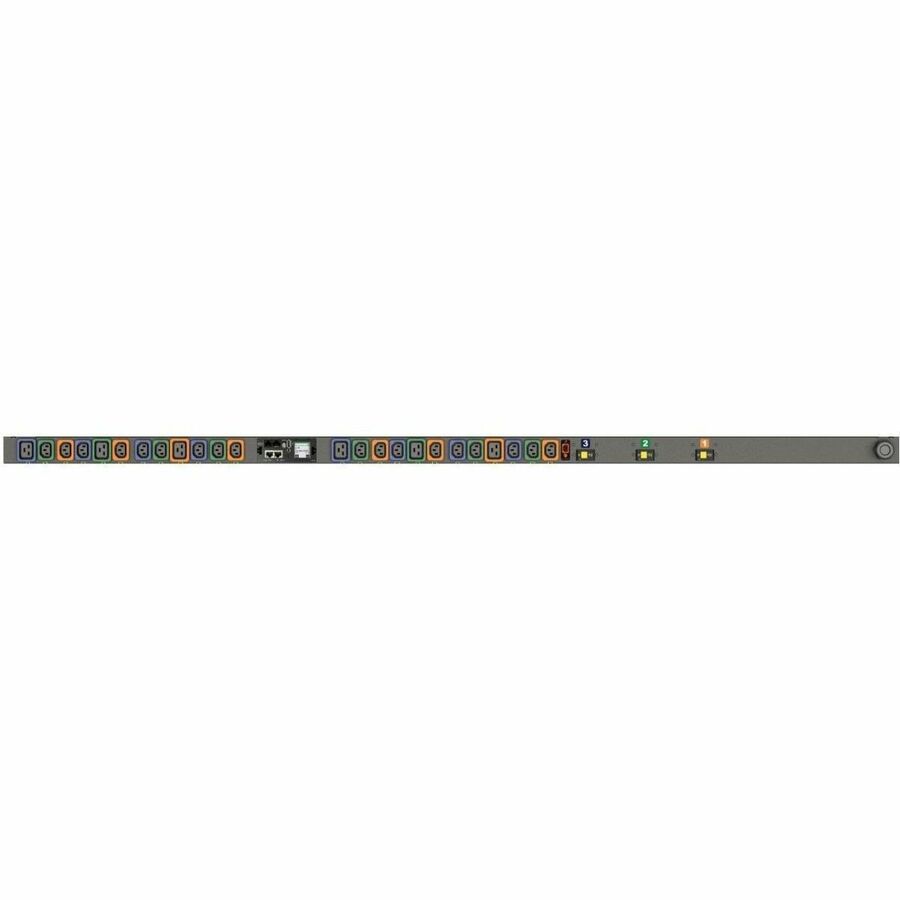

The Vertiv VP7N30A0 is a high-performance switched rPDU with outlet-level monitoring and control for reliable power distribution in critical IT environments. With 24 locking IEC outlets (18x C13, 6x C19), a 30A 120/208V WYE input, and 8.6kW capacity, this vertical 66-inch unit offers advanced monitoring via Ethernet and local display, outlet switching, environmental sensor support, and daisy-chaining for up to 40 units. Ideal for data centers requiring precision, visibility, and uptime.
| Feature | Details |
|---|---|
| Part Number | VP7N30A0 |
| Form Factor | 66.25 in Vertical (Zero U) |
| Input Voltage / Configuration | 120/208V WYE, 3-Phase |
| Current Rating | 30A |
| Power Capacity | 8.6kW |
| Plug Type | NEMA L21-30P |
| Outlets | 18x Locking IEC C13, 6x Locking IEC C19 (U-Lock Color-Coded) |
| Outlet Monitoring | Yes (kWh, W, VA, PF, V, A per outlet) |
| Switching Capability | Individual outlet-level switching with delays & sequencing |
| Input Monitoring | Total unit + per phase (A, B, C) monitoring |
| Circuit Protection | (3) 20A Double Pole Magnetic Breakers |
| Network Connectivity | Dual Gigabit Ethernet (10/100/1000 Mbps) |
| Display | Local auto-oriented touchscreen + 24 LEDs |
| Environmental Monitoring | Supports optional sensors (up to 16 via 1 RJ port) |
| Protocols | SNMP, HTTPS, SSH, RADIUS, TACACS+, Modbus TCP, etc. |
| Mounting Hardware | Toolless Mounting, Brackets included (7938 Vertical Kit) |
| Material & Finish | Heavy-duty steel, black powder coat |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Warranty | 5 years (with registration) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
