Description

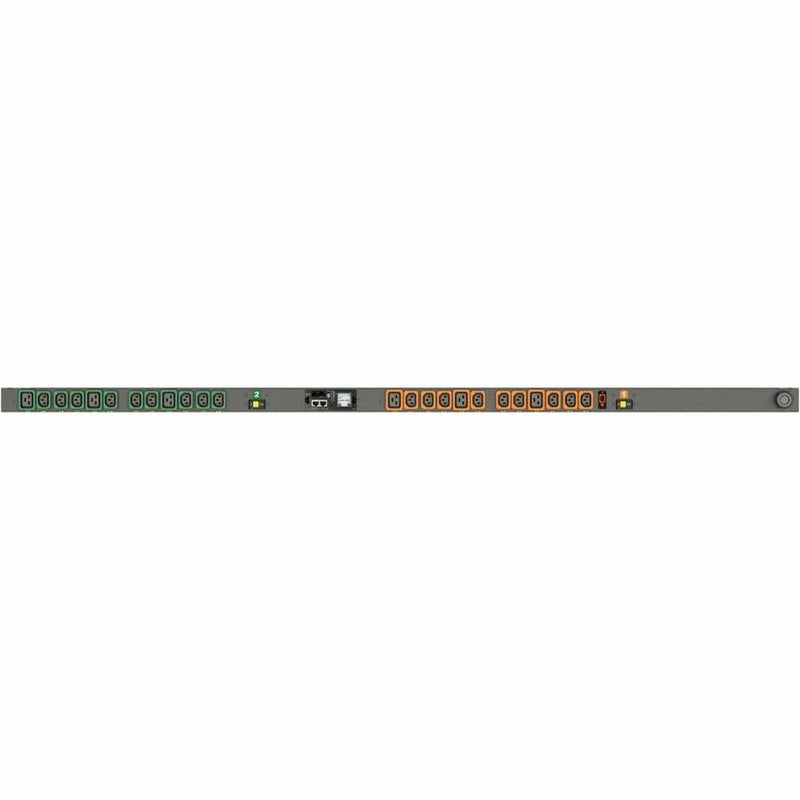

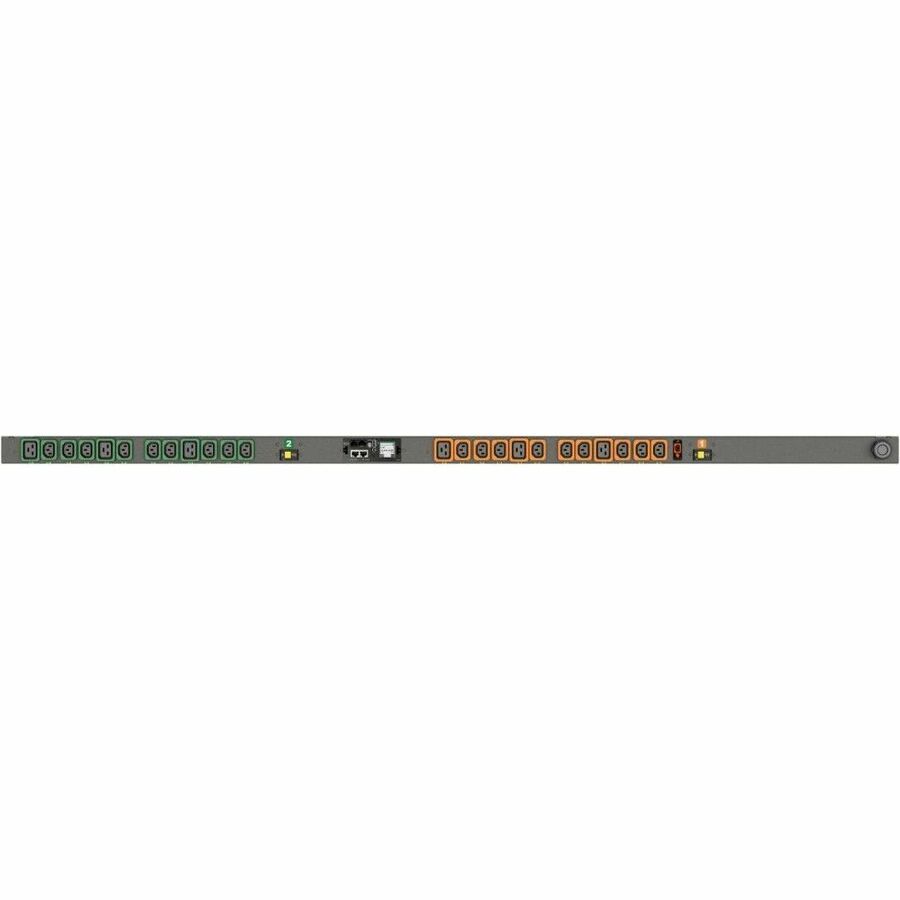

The Vertiv VP7N30A7 is a Switched Outlet-Level Monitored rPDU offering intelligent power distribution and remote outlet control for critical IT equipment. This 30A, 208V vertical rPDU features 18 locking IEC C13 and 6 locking IEC C19 outlets, a 10ft L6-30P power cord, and integrated circuit/breaker monitoring. Designed for maximum uptime and energy efficiency, it supports environmental sensors and daisy-chaining up to 40 rPDUs via Ethernet. Built with Geist Upgradeable technology, it delivers future-ready scalability and reliable performance in data centers.
| Attribute | Details |
|---|---|
| Model Number | VP7N30A7 |
| Product Type | Switched rPDU with Outlet-Level Monitoring |
| Mounting | Vertical, 0U |
| Input Voltage | 200–240V |
| Current Rating | 30A |
| Power Capacity | 4.9kW @ 208V |
| Plug Type | NEMA L6-30P Twistlock |
| Outlets | (18) Locking IEC C13, (6) Locking IEC C19 |
| Outlet Voltage | 208V |
| Monitoring Capabilities | Input, Outlet, Breaker-Level Monitoring |
| Remote Management | Switched outlets, sequencing, delays |
| Network Interface | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP, HTTP/S, SSH, RADIUS, TACACS+, etc. |
| Daisy Chaining Support | Up to 40 rPDUs, RSTP |
| Environmental Sensor Ports | 1 RJ-type, supports up to 16 sensors |
| Display | Local LCD touchscreen with auto-orientation |
| Chassis Material | Steel, Black Powder Coat |
| Dimensions (L x W x D) | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Power Cable Length | 10ft / 3m |
| Certifications | UL/c-UL 62368-1, RoHS, FCC Class A |
| Compliance | TAA, BAA (COTS) |
| Operating Temp (Max) | 60°C / 140°F |
| Warranty | 5 years with registration (120 days) |
| Weight | 20 lbs / 9.07 kg |
