Description

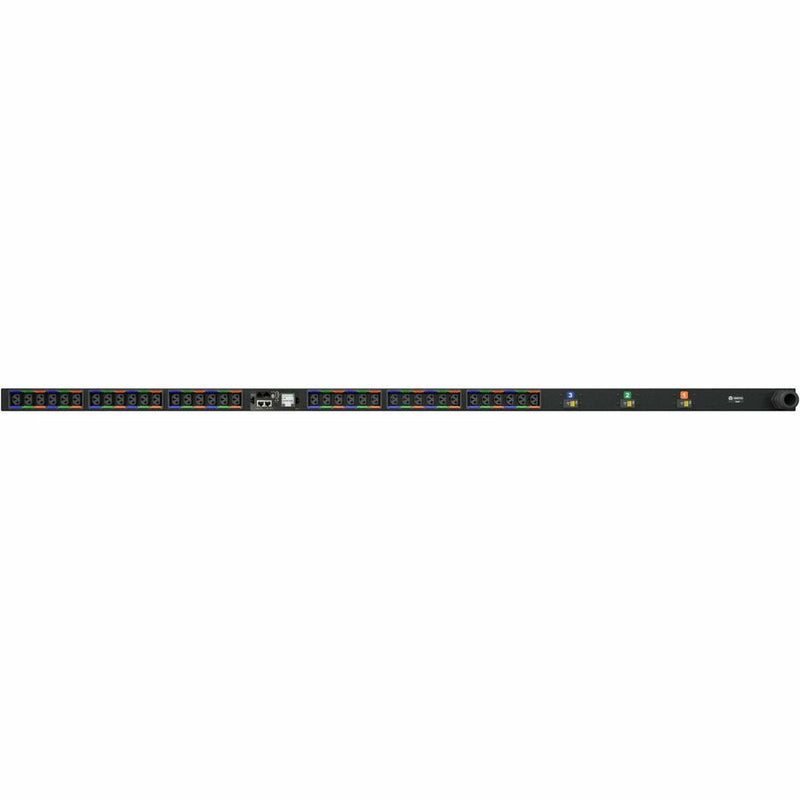

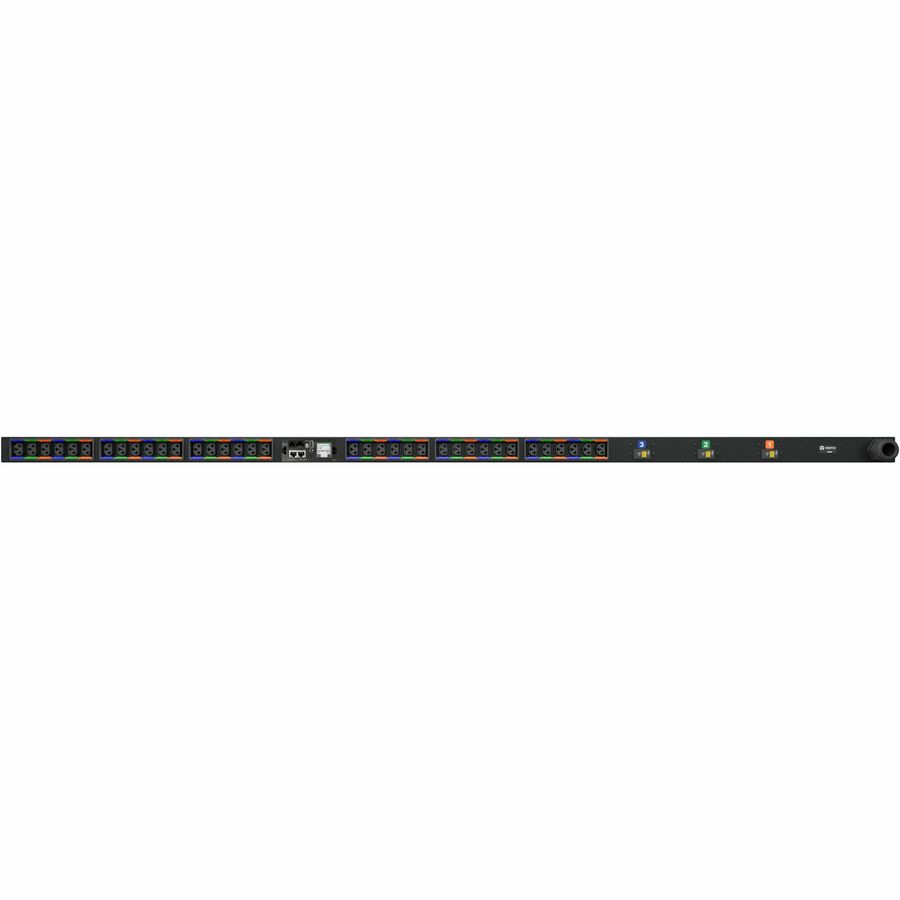

The Vertiv VP7N30AN is a Switched Outlet-Level Monitored rPDU designed for high-performance IT environments. Delivering 30A at 208V with 4.9kW capacity, it provides (30) locking IEC C13 and (6) locking IEC C19 outlets, with individual outlet switching and monitoring for precise power control. Its hot-swappable monitoring module, environmental sensor support, and daisy-chain networking capabilities make it ideal for dynamic data centers. Includes a 10ft power cord with L6-30P plug and robust black powder-coated vertical chassis.
| Feature | Details |
|---|---|
| Model Number | VP7N30AN |
| Type | Switched Outlet-Level Monitored rPDU |
| Input Voltage / Current | 208V / 30A |
| Power Capacity | 4.9kW |
| Input Plug Type | NEMA L6-30P (Twistlock) |
| Power Cord Length | 10ft / 3m |
| Outlets | (30) IEC C13, (6) IEC C19 Locking |
| Mounting | Vertical, Zero U |
| Monitoring Capabilities | Input, Outlet, Circuit, Environmental |
| Switching Capabilities | Individual outlet-level switching |
| Networking | Dual Ethernet, Daisy Chain (up to 50 rPDUs) |
| Protocols | SNMP, HTTPS, SSH, Modbus TCP, and more |
| Display | LCD Touchscreen with Auto Orientation |
| Chassis Dimensions | 70in x 2in x 2.6in (1778mm x 51mm x 66mm) |
| Weight | 20 lbs (9.07 kg) |
| Operating Temp. | Max 60°C (140°F) |
| Build & Finish | Steel, Black Powder Coat |
| Compliance | UL 62368-1, FCC Class A, RoHS, TAA, BAA |
| Warranty | 5-year (with registration) / 3-year standard |
