Description

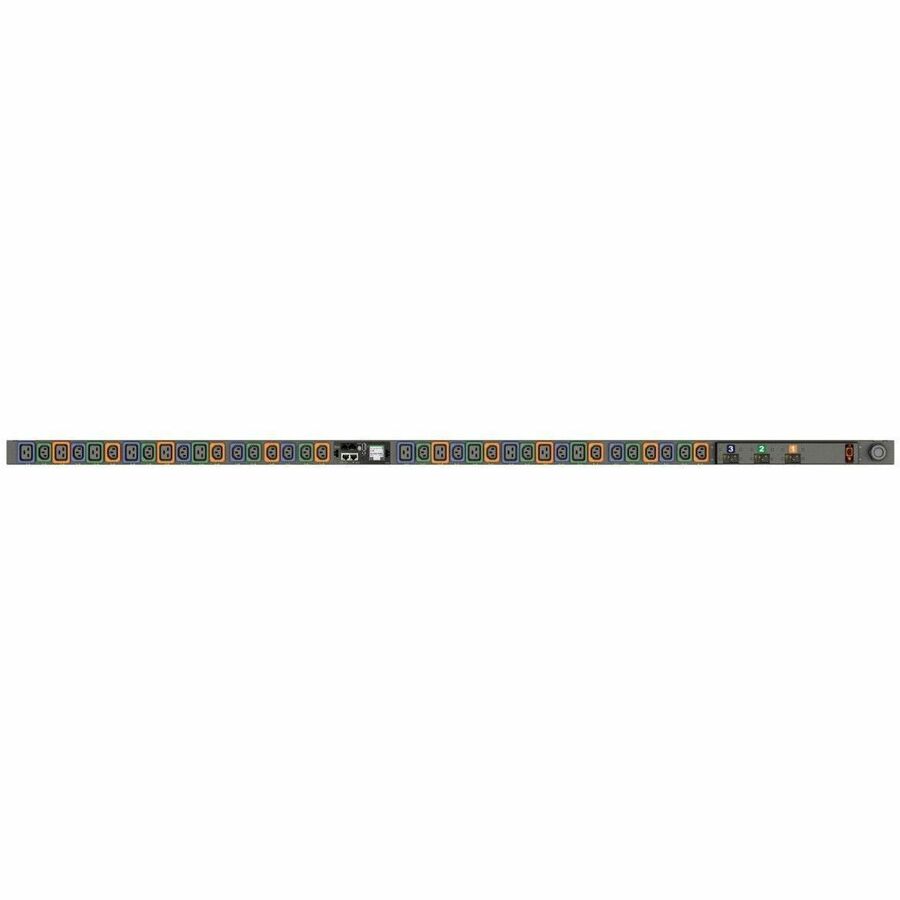

The Vertiv VP7N30A9 is a high-performance Switched Outlet-Level Monitored rPDU designed for enterprise-grade power distribution. Engineered for intelligent power control, this vertical 72-inch unit supports 30A, 208V Delta input with an 8.6kW capacity. It includes 24 locking IEC C13 and 12 locking IEC C19 outlets, a 10-ft power cord with L15-30P plug, and advanced remote monitoring via dual Ethernet ports. Ideal for maximizing uptime, it offers outlet switching, environmental sensor support, high-visibility local display, fault-tolerant daisy chaining, and robust security protocols.
| Feature | Details |
|---|---|
| Model | VP7N30A9 |
| Form Factor | Vertical, Zero U |
| Input Voltage / Current | 208V Delta, 30A 3-Phase |
| Power Capacity | 8.6kW |
| Plug Type | NEMA L15-30P |
| Outlet Configuration | 24 x Locking IEC C13, 12 x Locking IEC C19 |
| Switching | Individual outlet-level switching with delays |
| Monitoring | Input, Outlet, Circuit/Breaker monitoring (kWh, W, VA, PF, V, A) |
| Daisy Chaining | Up to 40 rPDUs with RSTP support |
| Network Ports | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP v1/v2c/v3, HTTPS, SSH, RADIUS, TACACS+, Modbus TCP, Syslog, etc. |
| Display | LCD touchscreen with auto-orientation |
| Power Cord Length | 10 ft / 3 m |
| Receptacle Voltage | 208V |
| Mounting Hardware | Toolless mounting brackets (61.25" & 64.75" spacing) |
| Enclosure Finish | Black Powder Coat, Heavy Steel |
| Environmental Monitoring | Supports up to 16 sensors (RJ connection) |
| Operating Temperature | Max 60°C / 140°F |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Warranty | 5 years with registration (within 120 days), otherwise 3 years |
| Dimensions (HxWxD) | 72in x 2in x 2.6in (1829mm x 51mm x 66mm) |
| Weight | 22 lbs / 9.98 kg |
