Description

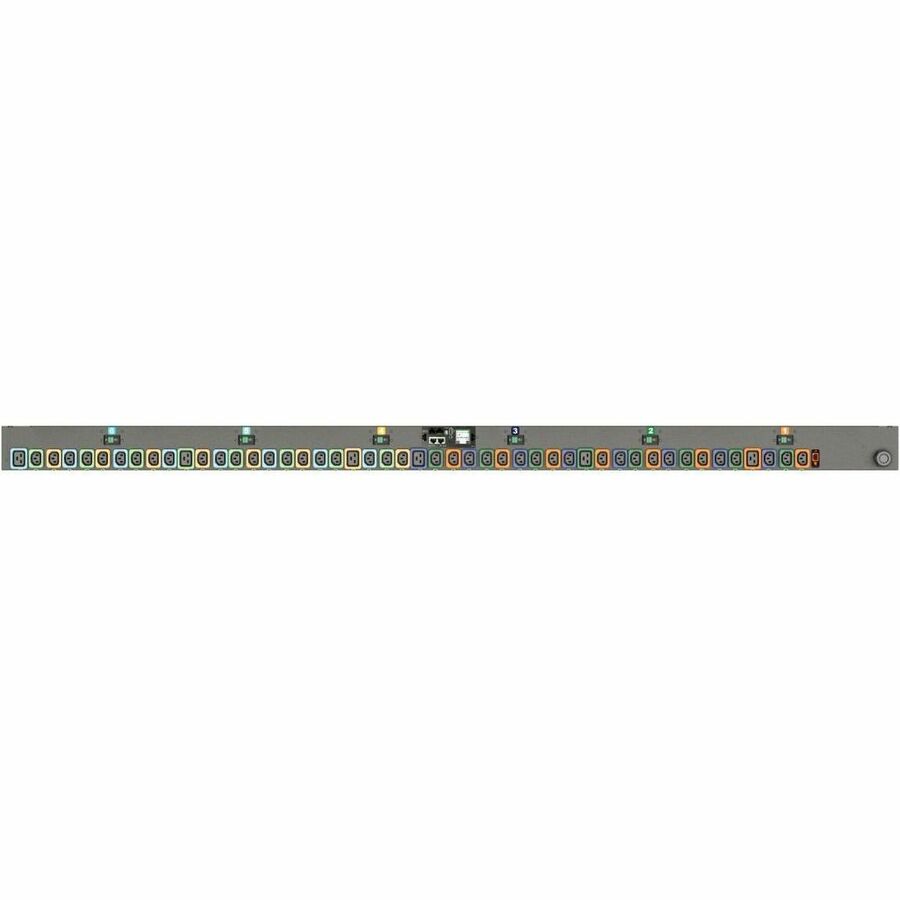

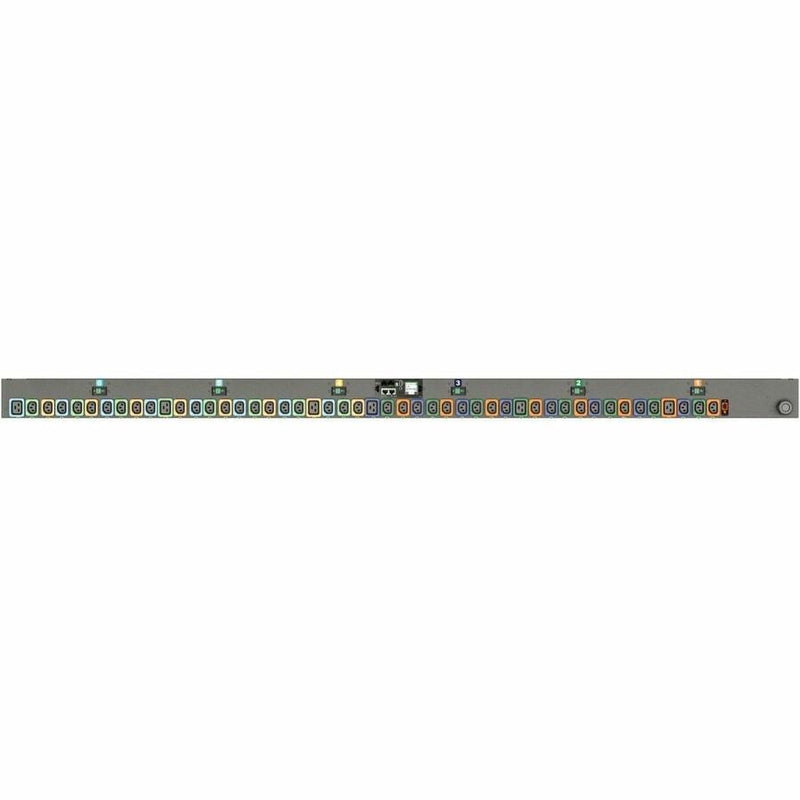

The Vertiv Geist VP7N30AJ is a Switched Outlet-Level Monitored rPDU that provides reliable power distribution with advanced monitoring and control. Designed for high-density IT environments, it supports remote power management, environmental monitoring, and fault-tolerant daisy chaining. With 48 locking IEC outlets, this 17.2kW vertical rPDU ensures efficient power usage, quick diagnostics, and maximized uptime for your critical infrastructure.
| Specification | Details |
|---|---|
| Model Number | VP7N30AJ |
| Type | Switched rPDU with Outlet-Level Monitoring |
| Input Voltage | 200-240/346-415V WYE |
| Input Current | 30A 3-Phase |
| Power Capacity | 17.2kW |
| Frequency | 50/60Hz |
| Receptacles | 42 x Locking IEC C13, 6 x Locking IEC C19 |
| Plug Type | NEMA L22-30P Twistlock |
| Power Cord Length | 10 ft / 3m |
| Mounting Type | Vertical (Zero U) |
| Unit Dimensions | 70in x 3.7in x 2.6in (1778mm x 94mm x 66mm) |
| Monitoring Capabilities | Input & Outlet Power, Breaker Current |
| Environmental Monitoring | Supports up to 16 sensors via RJ connection |
| Networking | Dual Ethernet, SNMP, HTTPS, SSH, Modbus TCP |
| Certifications | UL/c-UL 62368-1, RoHS, FCC Class A |
| Finish | Black Powder-Coated Steel |
| Operating Temp | Max 60°C (140°F) |
| Weight (Shipped) | 22 lbs (9.98 kg) |
| Warranty | 5-year (with registration), 3-year standard |
| Country of Origin | USA – TAA and BAA Compliant |
