Description

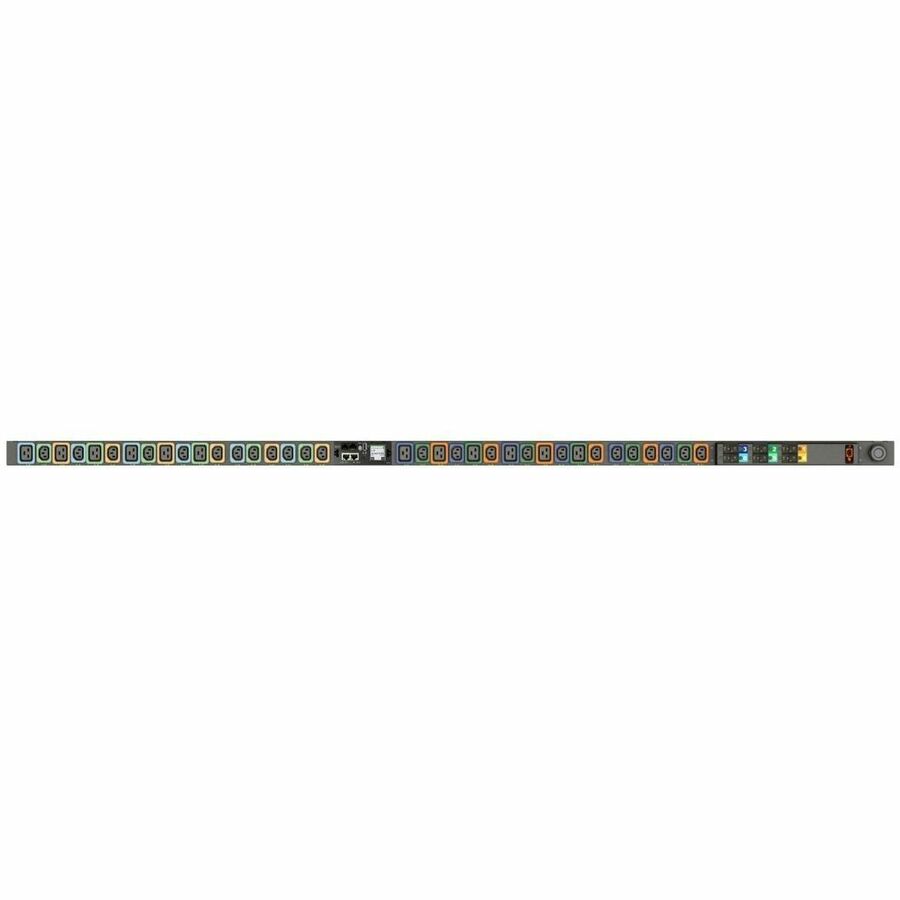

The Vertiv Geist VP7N30AE is a high-performance Switched rPDU offering reliable power distribution and advanced outlet-level monitoring. Engineered for enterprise and data center applications, this 30A, 240/415V WYE vertical unit features 24 IEC C13 and 12 IEC C19 locking outlets with individual outlet control. It supports remote monitoring and management, daisy-chaining up to 40 units, and environmental sensing. The unit also includes a touchscreen LCD display, fault-tolerant Ethernet, and optional sensor support—ideal for optimizing uptime and energy efficiency in mission-critical environments.
| Feature | Specification |
|---|---|
| Model Number | VP7N30AE |
| Type | Switched, Outlet-Level Monitoring |
| Input Power | 30A, 240/415V WYE, 3-Phase |
| Power Capacity | 17.2kW |
| Input Plug | NEMA L22-30P, 10ft Cord |
| Outlet Configuration | 24 × Locking IEC C13, 12 × Locking IEC C19 |
| Mounting Type | Vertical, Zero U |
| Chassis Dimensions | 72in x 2in x 2.6in (1829mm x 51mm x 66mm) |
| Weight | 22 lbs (9.98 kg) |
| Monitoring | Input & Outlet Power Monitoring (W, VA, PF, kWh), Circuit Monitoring |
| Switching | Individual Outlet Control with Delays and Sequencing |
| Display | Auto-orienting LCD Touchscreen |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps), Daisy Chain Support |
| Protocols Supported | SNMP, HTTPS, RADIUS, Modbus TCP, Syslog, etc. |
| Sensor Support | RJ Port, up to 16 Environmental Sensors |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS |
| Country of Origin | USA (TAA & BAA Compliant) |
| Warranty | 5-Year (with registration), otherwise 3-Year |
