Description

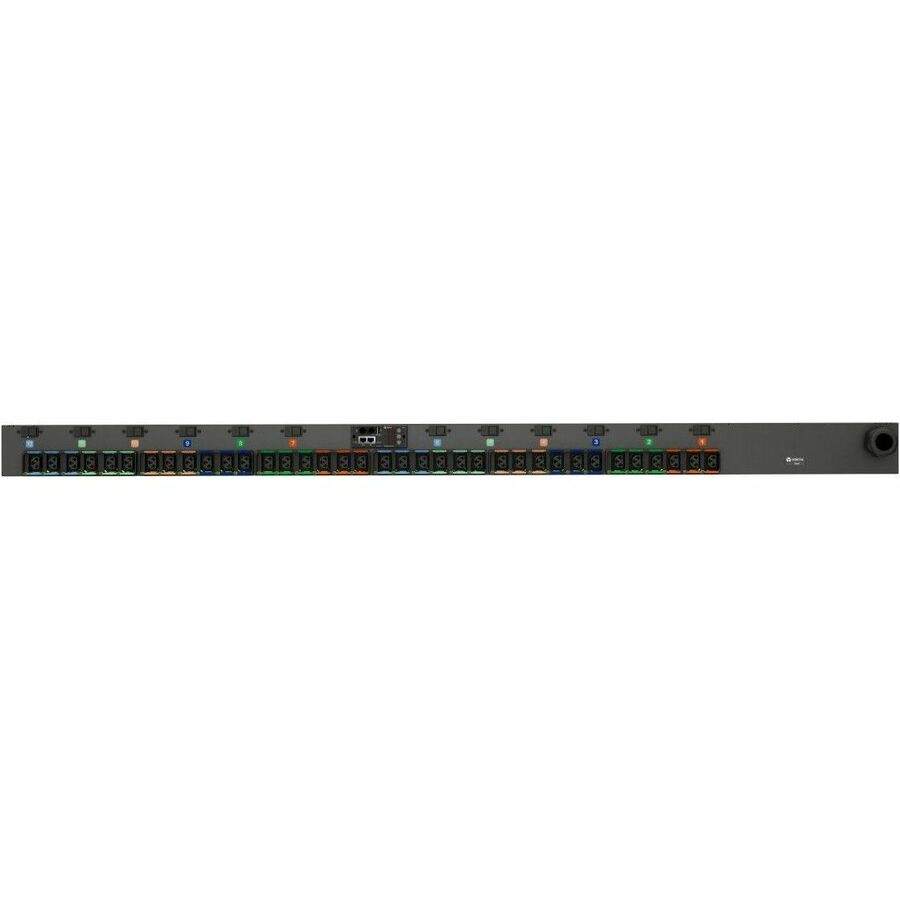

The Vertiv Geist VP7N6013 is a high-performance switched rack power distribution unit (rPDU) designed for data centers and critical IT environments. With 36 combination C13/C19 outlets and a 60A, 240/415V WYE input, this vertical 0U PDU delivers up to 34.5kW of power with outlet-level switching and monitoring. A 10-ft power cord terminated with a 3P+N+E (IP67) plug ensures flexible deployment, while hot-swappable Interchangeable Monitoring Device (IMD) enables advanced remote management and environmental monitoring. Dual Ethernet ports allow daisy chaining or IP aggregation, reducing network port usage. Backed by a 5-year limited warranty (with registration), this TAA-compliant, UL-listed rPDU is built for reliability and scalability.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Model | VP7N6013 / MNU3EPB1-36CF13-6PS56D0A10-S |
| Product Type | Switched Rack PDU (rPDU) |
| PDU Type | Switched, Outlet-Level Monitoring |
| Input Voltage | 240/415V WYE, 3-Phase |
| Input Current | 60A |
| Power Capacity | 34.5 kW |
| Plug Type | IEC 60309 60A 3P+N+E (IP67) |
| Cord Length | 10 ft (3m) |
| Outlets | 36 x Combination C13/C19 |
| Form Factor | Vertical (0U) |
| Mount Type | Rack-Mountable |
| Dimensions (W x L) | 3.8" x 66.3" |
| Color | Black Powder Coat |
| Network Interface | Dual Ethernet RJ-45 |
| Remote Management | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Syslog, Modbus TCP, JSON |
| Environmental Monitoring | Via IMD (Temperature, Humidity, etc.) |
| Max Operating Temp | 140Ā°F (60Ā°C) |
| Certifications | UL, FCC Part 15 Class A, c-UL Listed 62368-1 |
| Compliance | RoHS, TAA-Compliant |
| Warranty | 5-Year Limited (with registration within 120 days) |
| Shipping Weight | 22 lbs |
| Country of Origin | USA |
