Description

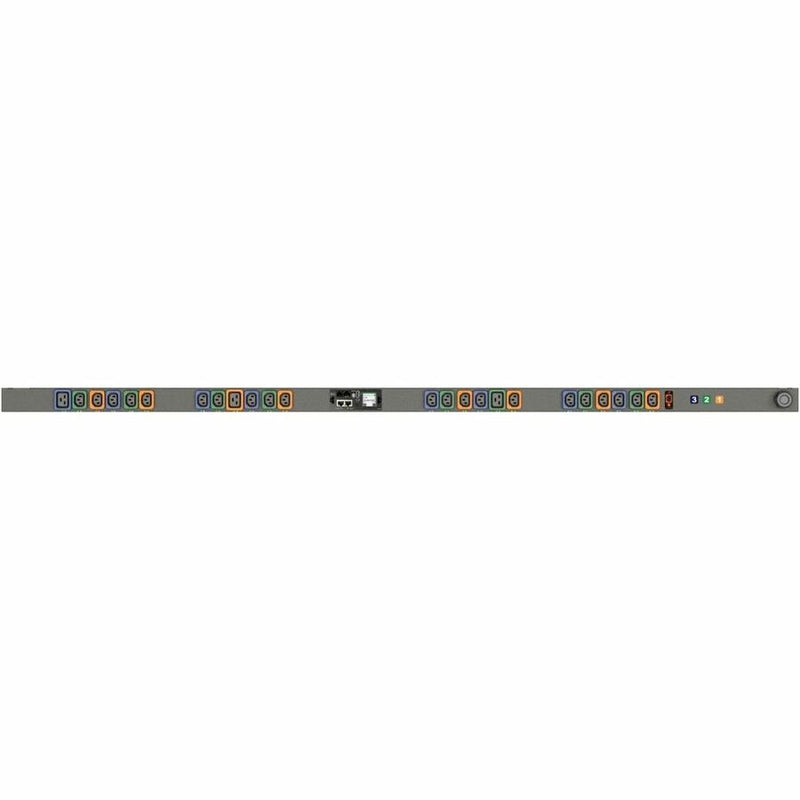

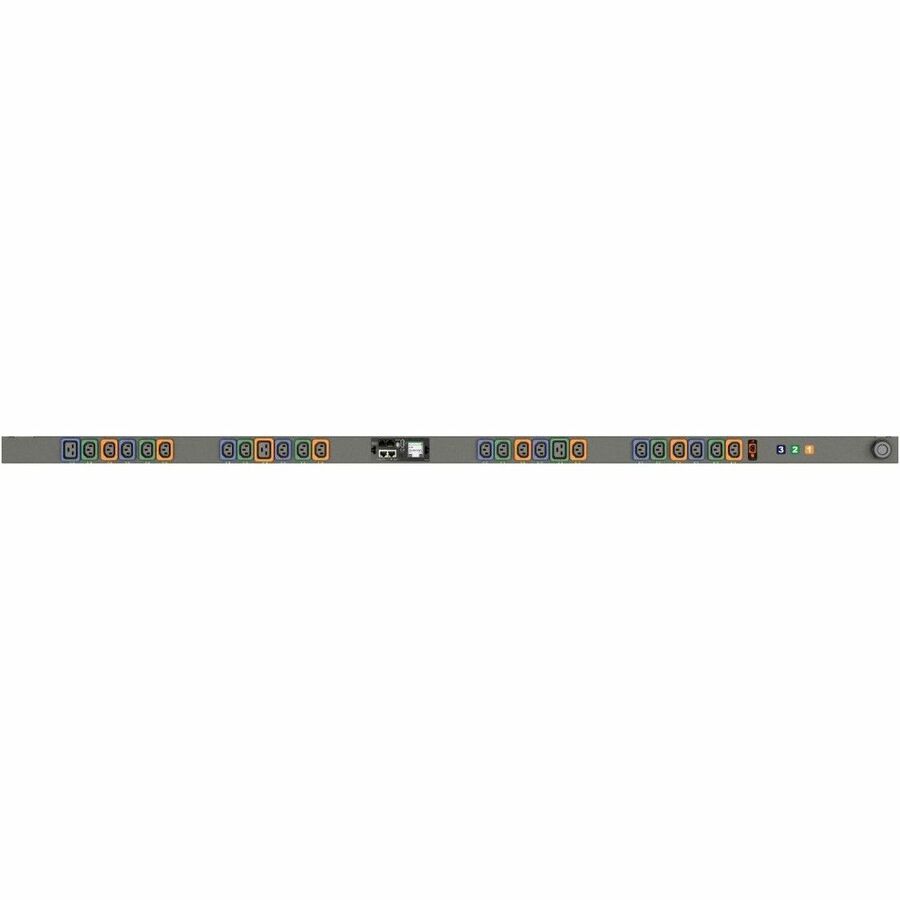

The Vertiv VP5N20A1 is a high-performance switched rack PDU (rPDU) designed for critical IT environments requiring advanced power control and visibility. With 24 locking IEC outlets (21x C13, 3x C19), 5.7kW capacity, and a 20A 208V 3-phase WYE input, it ensures reliable power distribution and remote outlet-level switching. This vertical unit features real-time environmental monitoring, daisy-chaining capability, dual Ethernet ports, and robust ANSI/IEC-compliant metering accuracy—delivering efficient power management for data centers and enterprise networks.
| Feature | Details |
|---|---|
| Model Number | VP5N20A1 |
| Type | Switched rPDU with Unit-Level Monitoring |
| Input Voltage / Phase | 120/208V WYE, 3-Phase |
| Maximum Power Capacity | 5.7kW |
| Input Current | 20A |
| Frequency | 50/60Hz |
| Input Plug Type | NEMA L21-20P (Twist-Lock) |
| Receptacles | 21x IEC C13 (Locking), 3x IEC C19 (Locking) |
| Mounting Orientation | Vertical, Zero U |
| Monitoring | Input & Circuit-level, Environmental (optional) |
| Switching Capability | Individual Outlet Switching |
| Network Ports | Dual Ethernet (10/100/1000 Mbps) |
| Connectivity Features | Daisy-chain up to 50 units, RSTP support |
| Communication Protocols | SNMP, HTTP/S, SSH, Modbus TCP, TACACS+, etc. |
| USB & Serial | USB, RS232 (RJ45) |
| Remote Sensors Supported | 1 RJ port (supports up to 16 sensors) |
| LCD Display | Auto-oriented LCD with LED indicators (24) |
| Dimensions (LxWxD) | 66.25 x 2 x 2.6 in (1683 x 51 x 66 mm) |
| Weight | 18 lbs (8.16 kg) |
| Color & Finish | Black Powder Coat |
| Certifications | UL 62368-1, FCC Class A, RoHS, TAA, BAA Compliant |
| Warranty | 5-Year (if registered within 120 days) |
| Country of Origin | USA |
