Description

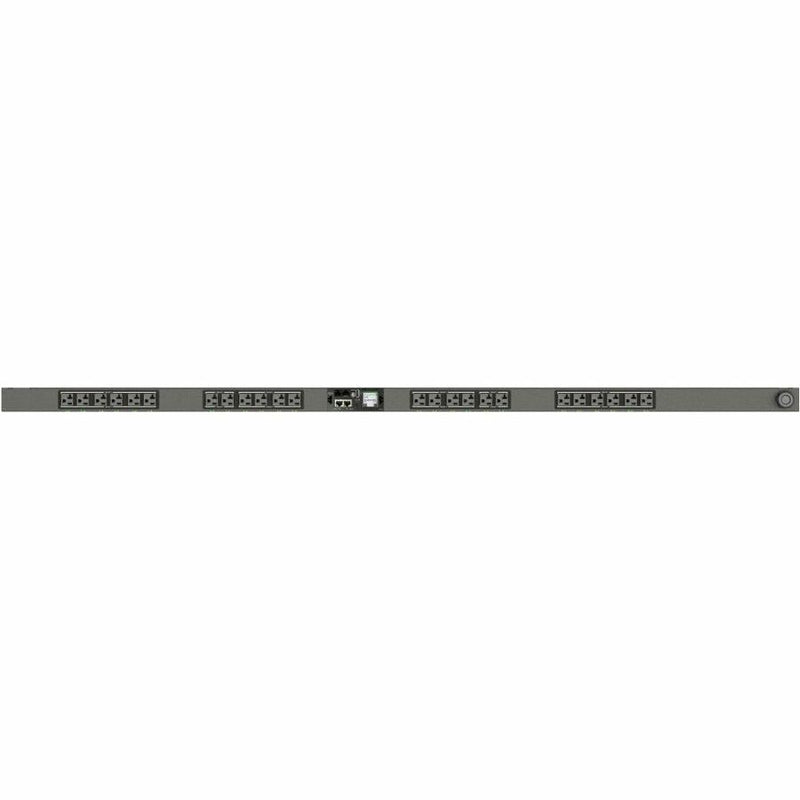

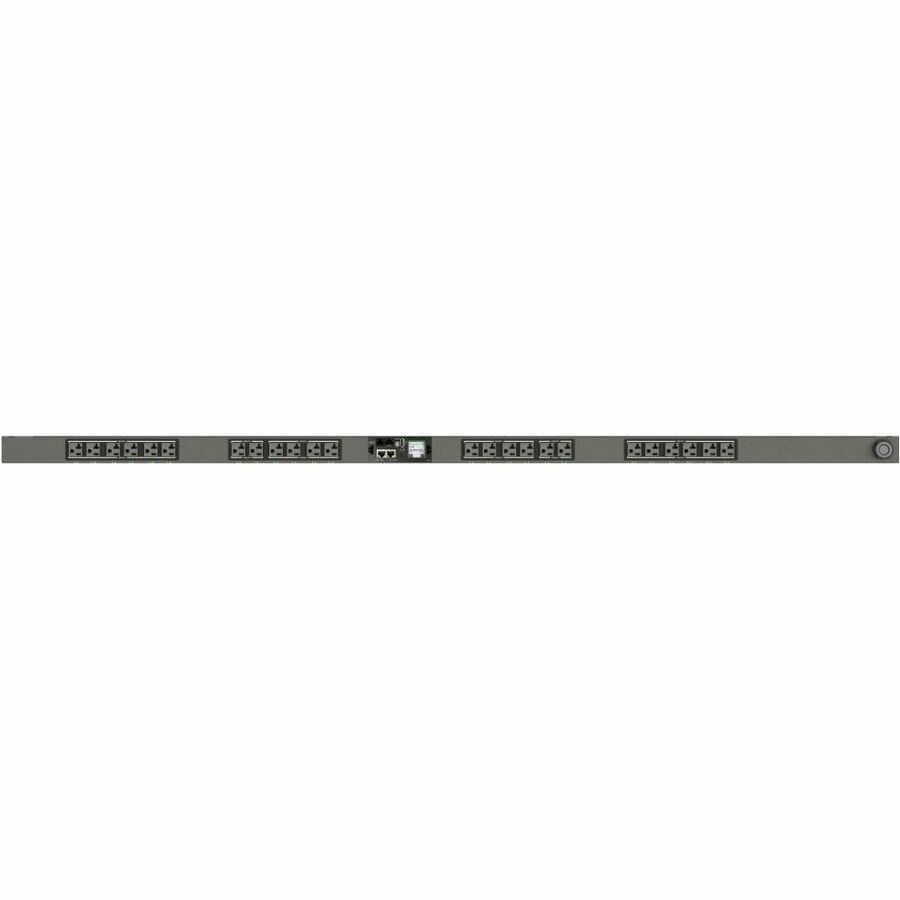

The Vertiv VP5N20A2 PowerIT rPDU™ delivers reliable, intelligent power distribution with switched outlet control and unit-level monitoring. Featuring 24 NEMA 5-20R outlets, this vertical rack PDU supports 20A 3-phase WYE input with a 5.7kW load capacity. Designed for high-availability IT environments, it enables outlet-level power cycling, real-time environmental monitoring (with optional sensors), and advanced remote network access. With daisy-chain Ethernet capability and a local high-visibility LCD display, it's built for uptime and efficiency.
| Attribute | Details |
|---|---|
| Part Number | VP5N20A2 |
| Form Factor | Vertical (Zero U) |
| Functionality | Switched with Unit-Level Monitoring |
| Input Voltage | 120/208V WYE |
| Current Rating | 20A, 3-Phase |
| Load Capacity | 5.7kW |
| Receptacles | 24 × NEMA 5-20R |
| Plug Type | NEMA L21-20P (Twistlock) |
| Power Cord Length | 10 ft (3m), 12/5 AWG |
| Display | Auto-oriented LCD touchscreen |
| Monitoring | Input (kWh, W, VA, PF); Circuit (A); Breaker (A); Outlet Switching |
| Accuracy | ANSI C12.1 / IEC 62053-21 (1%); Breaker monitoring verified at 2% |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP, HTTP/HTTPS, SSH, Modbus TCP, Syslog, RADIUS, TACACS+, and more |
| Environmental Sensors | Optional (supports up to 16 sensors) via RJ jack |
| Mounting Compatibility | Toolless; brackets at 61.25" and 64.75" center-to-center |
| Chassis Dimensions (HxWxD) | 66.25 × 2 × 2.6 in (1683 × 51 × 66 mm) |
| Weight | 18 lbs (8.16 kg) |
| Color | Black (powder coat finish) |
| Operating Temperature | Up to 60°C (140°F) |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 years (with registration); 3 years otherwise |
| Country of Origin | USA; TAA & Buy American Act COTS Compliant |
