Description

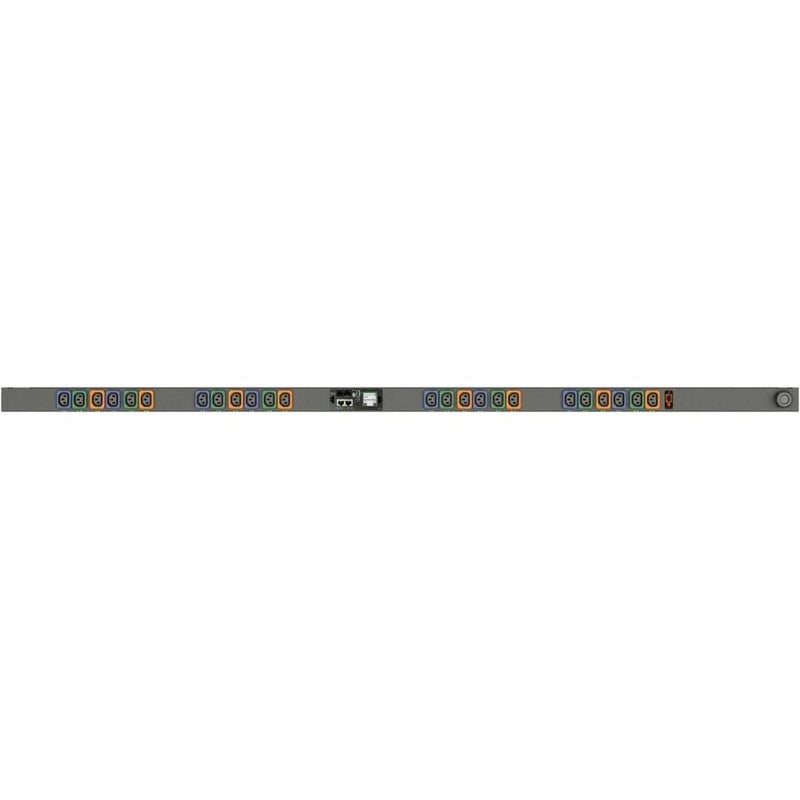

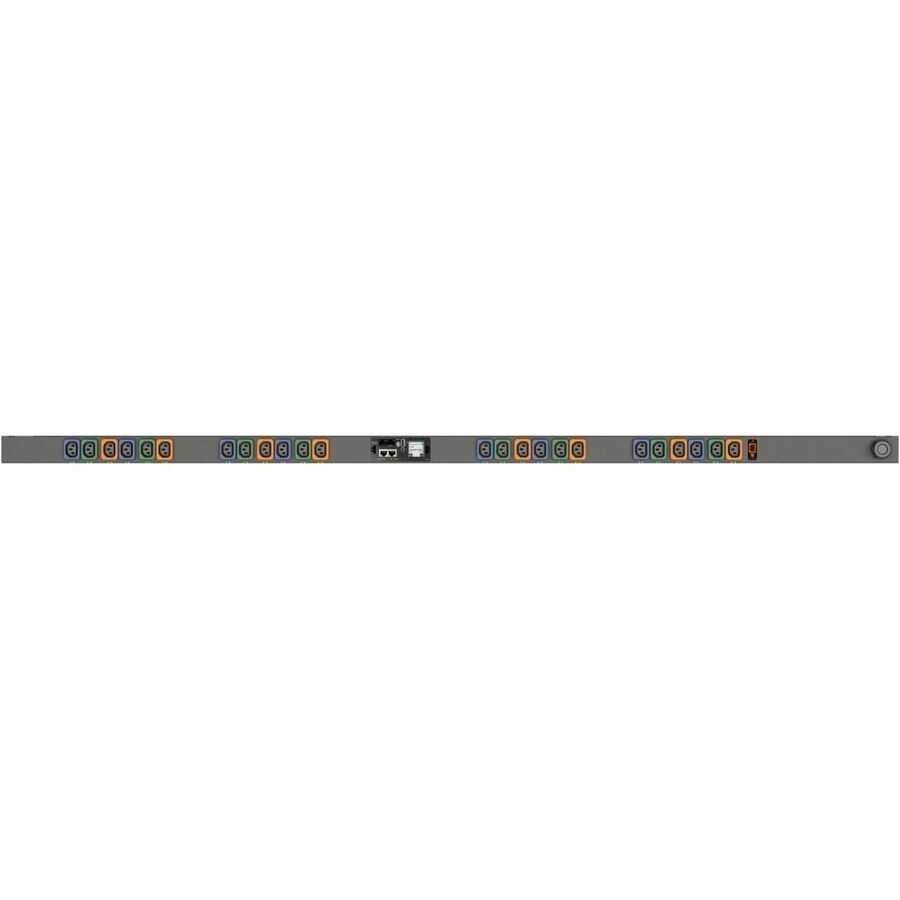

The Vertiv VP5N20A0 PowerIT™ rPDU delivers reliable, intelligent power distribution with switched outlet-level control and unit-level monitoring. Featuring 24 locking IEC C13 receptacles, 5.7kW power capacity, and remote management, this vertical Zero U rPDU supports fault-tolerant daisy chaining and environmental monitoring. Perfect for high-density rack deployments requiring robust monitoring, remote control, and energy efficiency.
| Specification | Details |
|---|---|
| Model | VP5N20A0 |
| Form Factor | Vertical (Zero U) |
| Monitoring | Switched with Unit-Level Monitoring |
| Input Voltage | 120/208V WYE, 3-Phase |
| Current Rating | 20A |
| Power Capacity | 5.7kW |
| Frequency | 50/60Hz |
| Input Plug | NEMA L21-20P (Twist-lock) |
| Outlet Types & Quantity | 24 × Locking IEC C13 (Color-coded per circuit) |
| Mounting Type | Toolless Zero U Vertical Mounting |
| Power Cable Length | 10 ft / 3 m |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP, HTTPS, SSH, Modbus TCP, Syslog, DHCP, IPv6 & more |
| Display | Local high-visibility auto-oriented LCD |
| Environmental Monitoring | Optional sensor support (up to 16 sensors) |
| Daisy Chain Capability | Up to 50 devices via 1 IP; RSTP support for redundancy |
| Build | Steel chassis, Black powder coat |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (with registration within 120 days) |
| Chassis Dimensions (L×W×D) | 66.25in × 2in × 2.6in (1683mm × 51mm × 66mm) |
| Weight | 18 lbs / 8.16 kg |
| Country of Origin | USA (TAA and BAA COTS Compliant) |
