Description

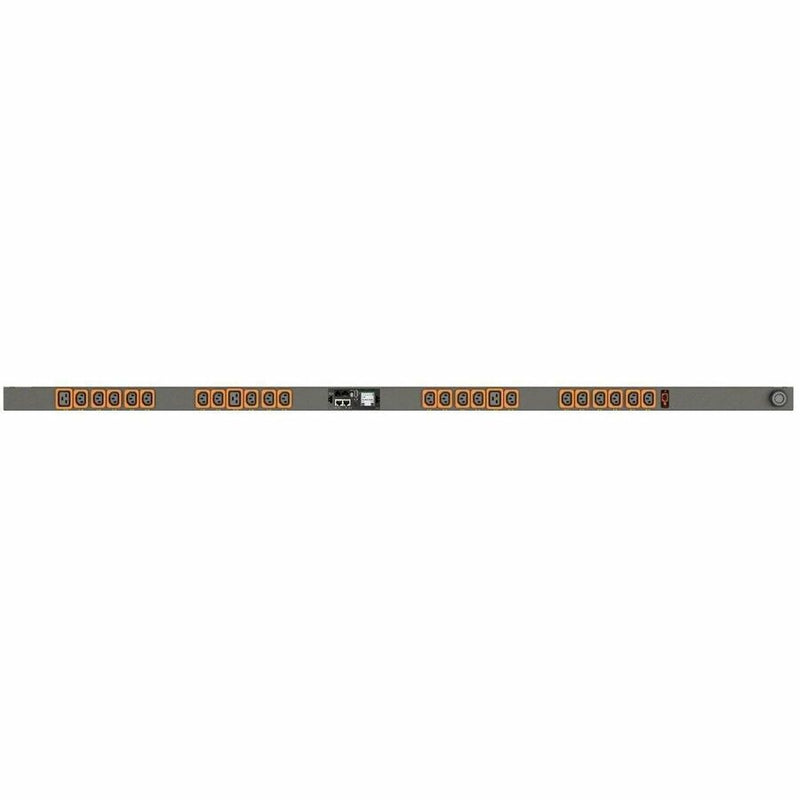

The Vertiv VP5N20AB is a high-performance PowerIT Switched rPDU engineered to deliver reliable, remotely manageable power distribution for critical IT infrastructure. With 21 IEC C13 and 3 IEC C19 locking outlets, 3.3kW capacity at 208V, and outlet-level switching and monitoring, it offers exceptional visibility and control. Its hot-swappable controller and daisy-chain capability support up to 50 devices on one IP address, optimizing space and streamlining deployment. Ideal for data centers and network closets, the VP5N20AB also supports environmental sensors and comes in a sleek vertical 66" Zero U form factor.
| Feature | Details |
|---|---|
| Model Number | VP5N20AB |
| Input Voltage | 200–240V |
| Input Current | 20A |
| Power Capacity | 3.3kW @ 208V |
| Input Plug Type | NEMA L6-20P |
| Power Cord Length | 10 ft (3m) |
| Outlet Configuration | (21) IEC C13 (Locking), (3) IEC C19 (Locking) |
| Form Factor | Vertical, Zero U |
| Dimensions (HxWxD) | 66.25 x 2 x 2.6 in (1683 x 51 x 66 mm) |
| Weight | 18 lbs (8.16 kg) |
| Monitoring | Switched, Unit Level with Input Power Monitoring |
| Outlet Switching | Yes – Individual Control |
| Display | Local LCD Touchscreen, Auto-Oriented |
| Networking | Dual Gigabit Ethernet, Daisy Chain up to 50 Devices |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, RADIUS, SSH, etc. |
| Environmental Monitoring | Supported via Optional Sensors (RJ Connection) |
| Mounting Hardware | Vertical Mounting Brackets, Toolless Installation |
| Compliance | UL & c-UL 62368-1, RoHS, FCC Class A, TAA, BAA |
| Warranty | 5-Year Limited (if registered within 120 days) |
