Description

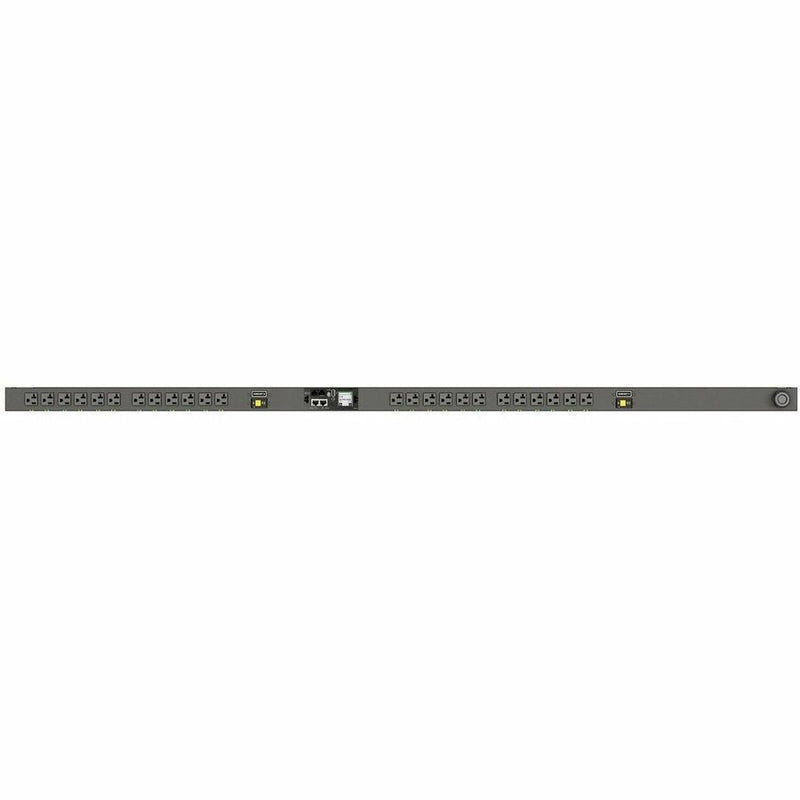

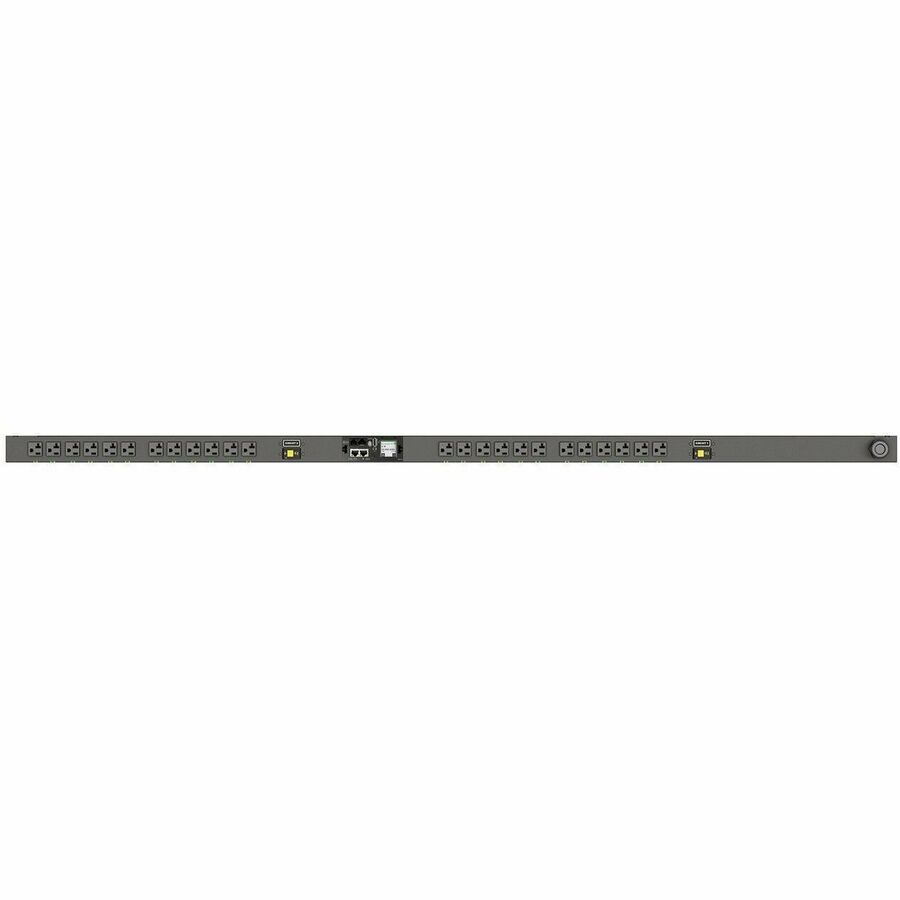

The Vertiv Geist VP5N30A5 is a 30A, 120V switched rack power distribution unit (rPDU) offering reliable power delivery with unit-level monitoring. This vertical Zero U PDU features 24 NEMA 5-20R outlets and a 10ft power cord with an L5-30P twist-lock plug. Equipped with advanced outlet switching, circuit/breaker current monitoring, and remote management capabilities, it ensures uptime and energy optimization in modern IT environments. Its hot-swappable monitoring device and daisy-chainable Ethernet make it scalable for evolving infrastructure needs.
| Specification | Details |
|---|---|
| Model | VP5N30A5 |
| Type | Switched rPDU with Unit Level Monitoring |
| Input Voltage | 100–120V |
| Input Current | 30A |
| Load Capacity | 2.8kW |
| Form Factor | Vertical / Zero U |
| Dimensions (L x W x D) | 66.25 in x 2 in x 2.6 in (1683 mm x 51 mm x 66 mm) |
| Receptacles | 24 x NEMA 5-20R |
| Plug Type | NEMA L5-30P (Twist-lock) |
| Power Cord Length | 10 ft / 3 m |
| Monitoring | Input power, breaker current, outlet switching, local LCD, remote access |
| Connectivity | Dual Gigabit Ethernet, RS232 via RJ45, USB |
| Environmental Sensors | Optional, up to 16 via RJ connection jack |
| Mounting | Vertical mounting bracket and toolless hardware included |
| Finish | Black powder-coated heavy steel |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-year limited (with registration), 3 years standard |
| Operating Temp. | Up to 60°C / 140°F |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
