Description

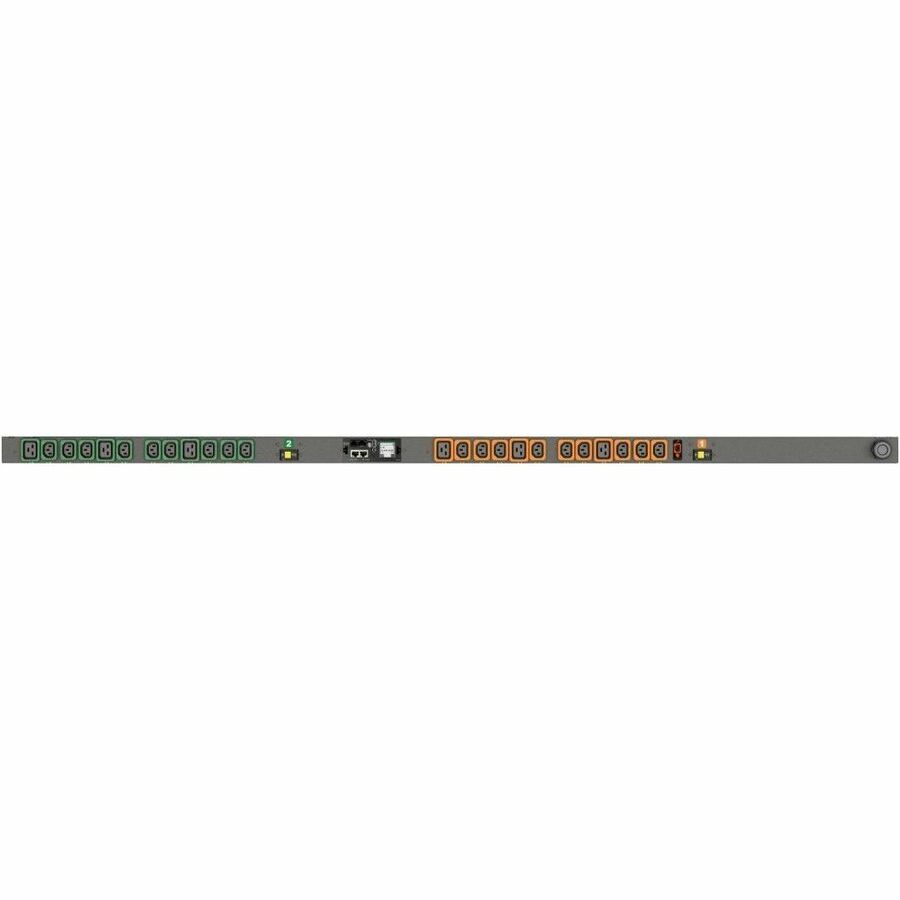

The Vertiv VP5N30A7 is a high-performance Switched Rack Power Distribution Unit (rPDU) engineered for modern data centers. It offers reliable 208V, 30A power distribution with unit-level monitoring and remote outlet switching, ideal for managing critical IT loads. This vertical, zero-U PDU features 18 IEC C13 and 6 IEC C19 locking outlets, a 10ft L6-30P input cord, and robust circuit-level monitoring. Environmental sensor support, daisy chaining up to 50 units, and full network protocol compatibility make it a scalable and intelligent power management solution.
| Specification | Details |
|---|---|
| Model Number | VP5N30A7 |
| Input Voltage | 208V |
| Maximum Current | 30A |
| Power Capacity | 4.9kW |
| Outlet Configuration | (18) Locking IEC C13, (6) Locking IEC C19 |
| Input Plug Type | NEMA L6-30P (Twistlock) |
| Power Cord Length | 10 ft (3m) |
| Monitoring | Switched, Unit-Level, Outlet Switching, Circuit Monitoring |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Supported Protocols | SNMP, SSH, HTTP/HTTPS, Modbus TCP, Syslog, and more |
| Display | LCD touchscreen with LED indicators |
| Mounting | Vertical (Zero U), Toolless Mounting Supported |
| Environmental Monitoring | Supports up to 16 sensors (optional) |
| Breakers | (2) 20A Double Pole Magnetic Breakers |
| Construction | Heavy-duty steel with black powder coat finish |
| Dimensions (L x W x D) | 66.25 x 2 x 2.6 in (1683 x 51 x 66 mm) |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Compliance | TAA & Buy American Act (COTS) |
| Warranty | 5-year limited (if registered within 120 days), else 3 years |
