Description

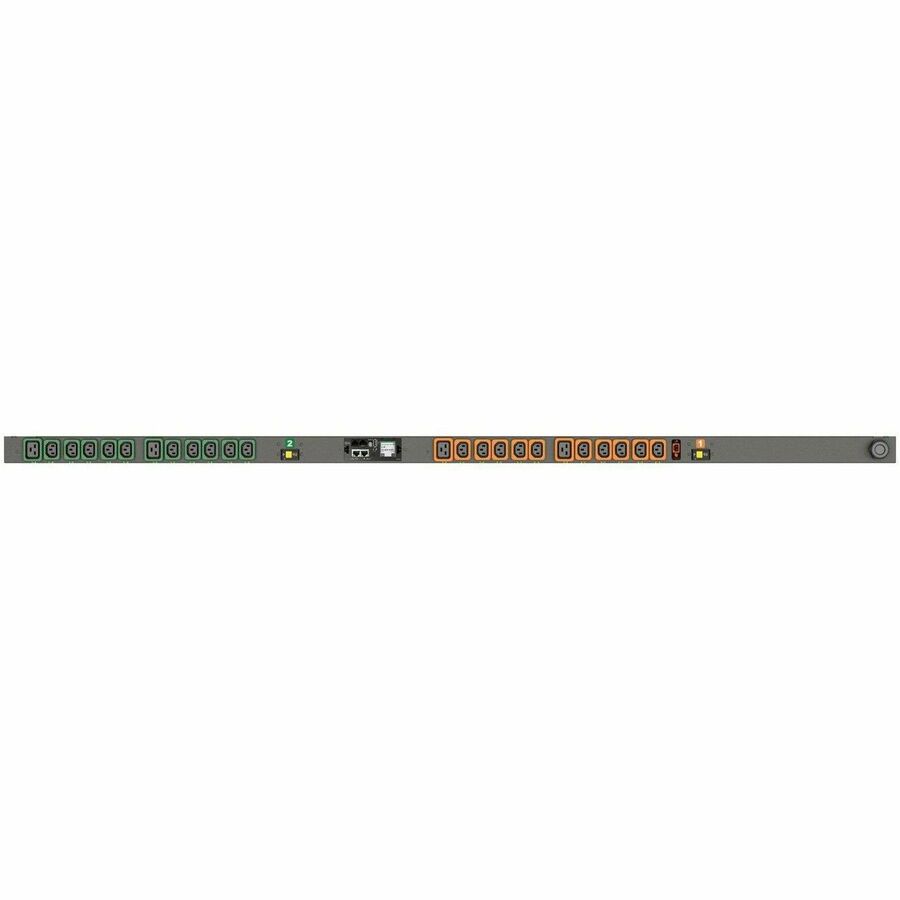

The Vertiv VP5N30AU is a high-performance switched rack PDU designed to deliver reliable power distribution with unit-level monitoring and advanced outlet control. Equipped with (20) locking IEC C13 and (4) locking IEC C19 receptacles, this vertical rPDU supports 30A at 208V, delivering a 4.9kW load capacity. Its hot-swappable monitoring unit enables remote access to real-time power data and outlet-level switching, enhancing operational efficiency and uptime.
Built for demanding IT environments, it features daisy chain Ethernet, environmental sensor support, and advanced remote management capabilities through multiple network protocols. With robust construction, ANSI and IEC compliance, and a TAA-compliant US origin, the VP5N30AU is ideal for enterprise and colocation data centers.
| Specification | Details |
|---|---|
| Model Number | VP5N30AU |
| Power Capacity | 30A, 208V, 4.9kW |
| Input Plug Type | NEMA L6-30P Twistlock |
| Receptacles | (20) Locking IEC C13, (4) Locking IEC C19 |
| Mounting Type | Vertical (Zero U) |
| Monitoring | Input & circuit monitoring, outlet switching |
| Display | Local touchscreen LCD |
| Environmental Monitoring | Yes, with optional remote sensors |
| Networking | Dual 10/100/1000 Mbps Ethernet, Daisy Chain |
| Protocols Supported | SNMP, HTTPS, SSH, RADIUS, Modbus TCP, etc. |
| Cable Length | 10 ft (3 m) |
| Overcurrent Protection | (2) 20A double pole magnetic breakers |
| Operating Temperature | Up to 60°C (140°F) |
| Chassis Finish | Black powder-coated steel |
| Dimensions (L x W x D) | 66.25 x 2 x 2.6 in (1683 x 51 x 66 mm) |
| Weight | 20 lbs (9.07 kg) |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-year (if registered within 120 days) |
| Country of Origin | USA (TAA & BAA Compliant) |
