Description

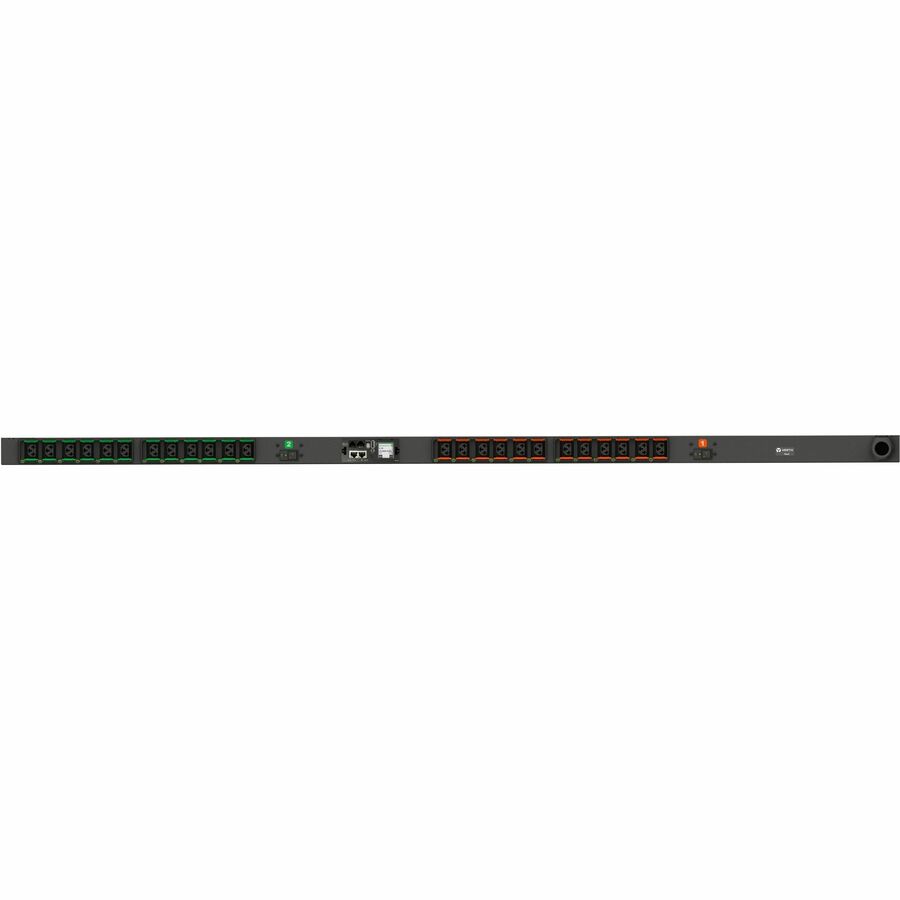

The Vertiv VP5N30AP is a high-performance switched rack PDU (rPDU) designed to deliver reliable power distribution and remote outlet control for critical IT equipment. With 24 combination C13/C19 outlets, 30A input capacity, and 4.9kW power delivery, this vertical, zero-U PDU features outlet-level switching, environmental sensor support, and input/circuit monitoring with high accuracy. Ideal for data centers seeking enhanced uptime, visibility, and remote management.
| Feature | Details |
|---|---|
| Model | VP5N30AP |
| Form Factor | Vertical, Zero U |
| Mounting | Toolless, 66.25in height |
| Input Voltage | 208V |
| Input Current | 30A |
| Input Plug Type | NEMA L6-30P Twistlock |
| Power Capacity | 4.9kW |
| Frequency | 50/60Hz |
| Receptacles | 24 Combination C13/C19 |
| Outlet Configuration | 2 circuits (12 per pair), Color ID: Orange/Green |
| Breaker Protection | (2) 20A Double Pole Magnetic Breakers (5kAIC) |
| Switching Type | Switched – Individual outlet control |
| Monitoring | Input, breaker, and outlet-level monitoring |
| Display | LCD touchscreen with auto orientation |
| Network | Dual Gigabit Ethernet, RS232, USB |
| Protocols Supported | SNMP, HTTP/S, SSH, RADIUS, Modbus TCP & more |
| Remote Sensor Ports | 1 RJ port, supports up to 16 sensors |
| Daisy-Chaining | Up to 50 devices per IP with RSTP |
| Chassis Material | Steel, Black Powder Coat Finish |
| Certifications | UL/c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Dimensions (LxWxD) | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Weight | 20 lbs (9.07 kg) |
| Warranty | 5 years (with registration), otherwise 3 years |
| Country of Origin | USA – TAA and BAA Compliant |
