Description

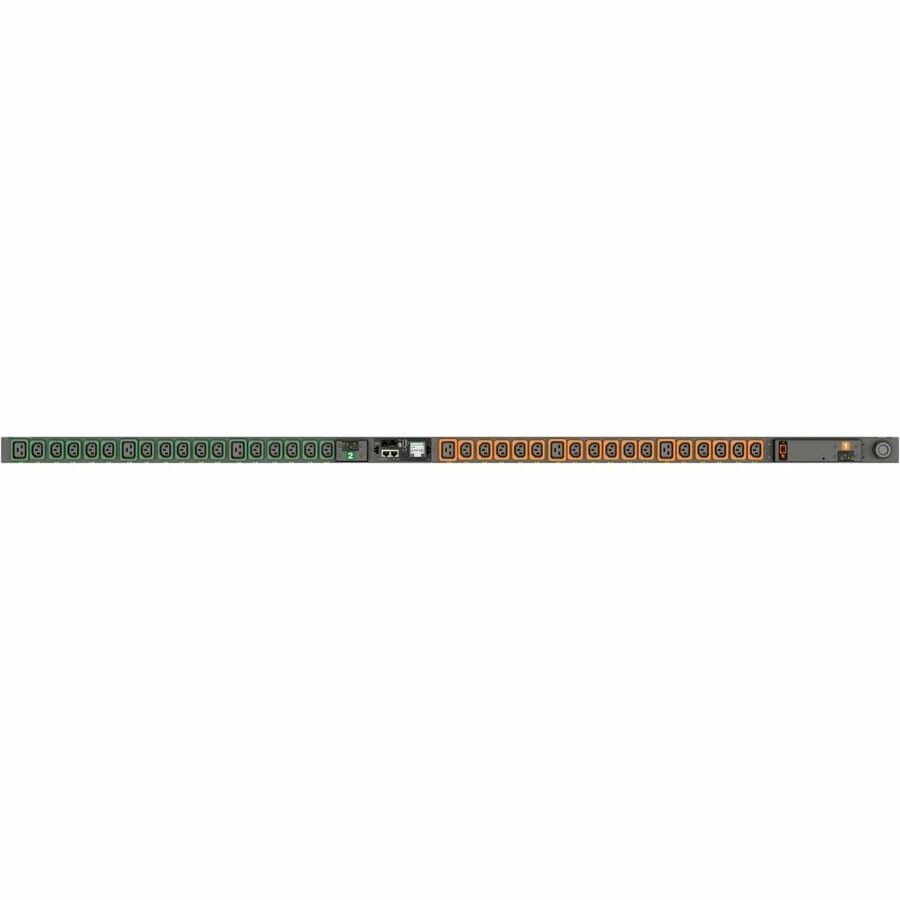

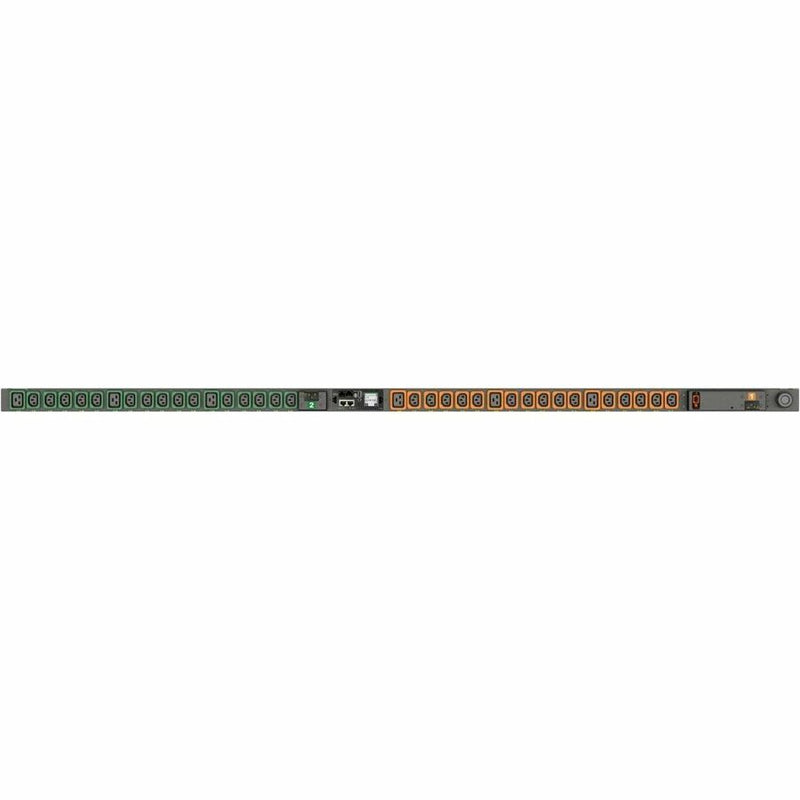

The Vertiv VP5N30AN is a Switched EC rPDU that delivers reliable, intelligent power distribution with outlet-level switching and monitoring. Designed for high-density IT environments, this vertical, zero-U PDU supports 30A at 208V with 4.9kW capacity. It features 30 locking IEC C13 and 6 locking IEC C19 outlets, dual Ethernet ports for daisy chaining, and environmental sensor support. Ideal for remote management, it includes a touchscreen display, advanced network protocols, and circuit-level protection via magnetic breakers.
| Specification | Details |
|---|---|
| Model | VP5N30AN |
| Mounting | Vertical, 0U |
| Power Capacity | 30A, 208V, 4.9kW |
| Outlets | (30) Locking IEC C13, (6) Locking IEC C19 |
| Plug Type | NEMA L6-30P |
| Cord Length | 10ft (3m) |
| Monitoring | Unit-level, Input power, Circuit/Breaker current |
| Switching | Individual outlet switching with time delays |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet, Daisy-chaining up to 50 units |
| Supported Protocols | SNMP (v1/v2c/v3), HTTPS, RADIUS, Modbus TCP, and more |
| Environmental Monitoring | Supports up to 16 remote sensors |
| Display | LCD touchscreen with LED indicators |
| Breakers | (2) 20A Double Pole Magnetic Breakers |
| Dimensions (LxWxD) | 70in x 2in x 2.6in (1778mm x 51mm x 66mm) |
| Weight | 20 lbs (9.07 kg) |
| Finish | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Warranty | 5 years (with registration within 120 days) |
| Compliance | TAA & BAA (Buy American Act) |
