Description

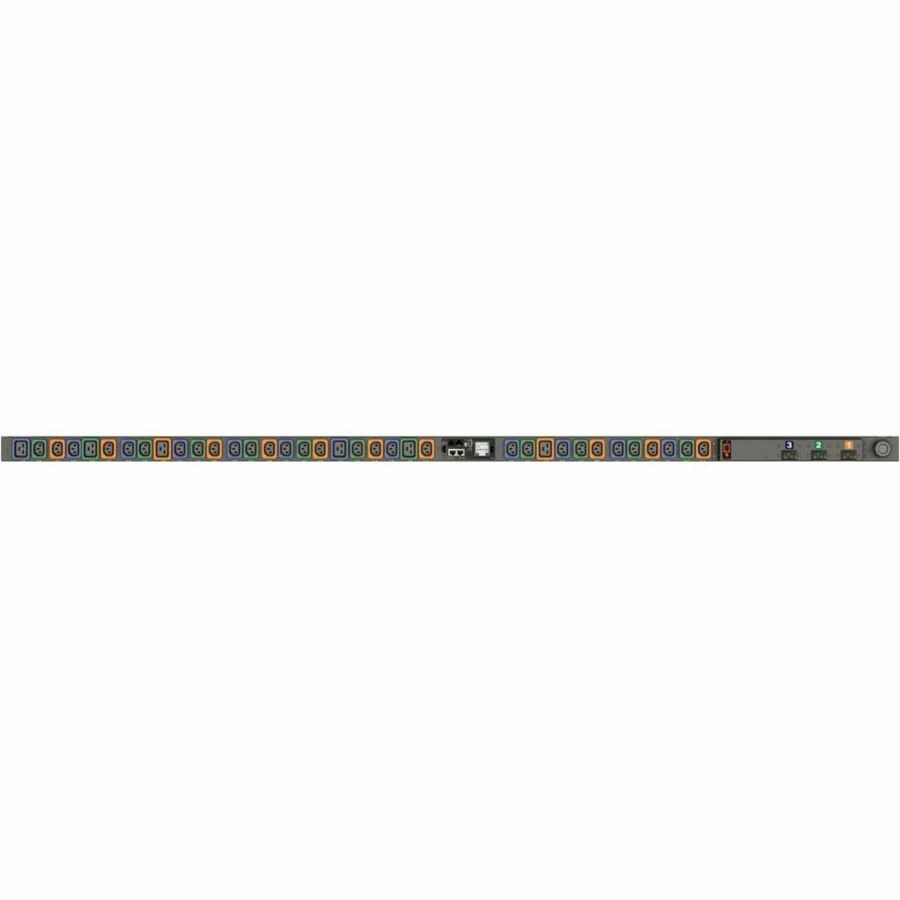

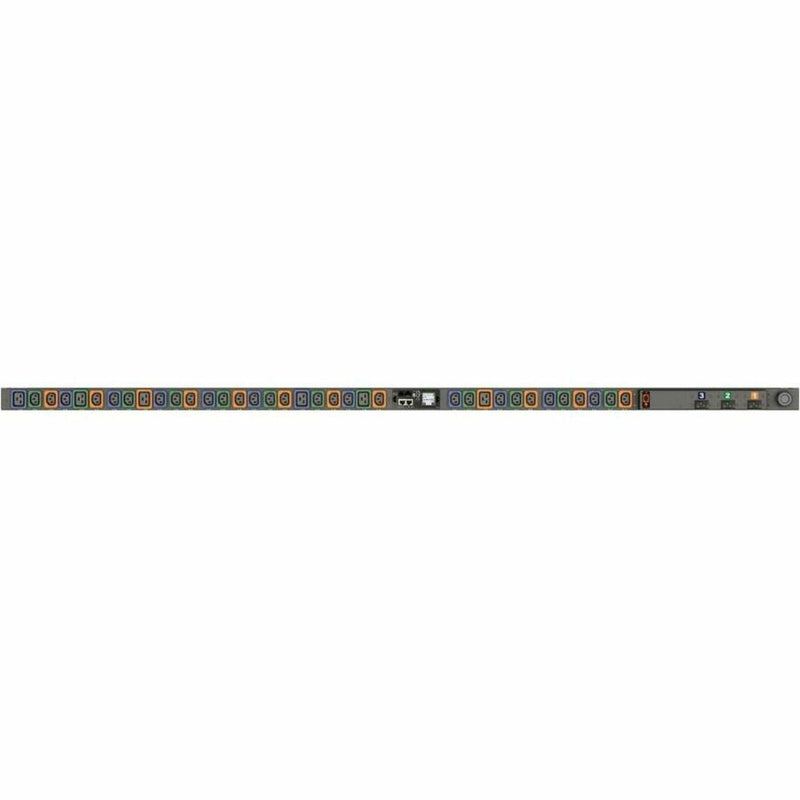

The Vertiv VP5N30AM is a high-performance Switched rack PDU with unit-level monitoring, designed for reliable and intelligent power distribution in mission-critical IT environments. With 36 individually switchable outlets, remote power management, and real-time monitoring of environmental and power metrics, this rPDU ensures maximum uptime, efficiency, and control. Ideal for high-density deployments, it features daisy-chain support for up to 50 devices over a single IP address and supports advanced protocols for seamless integration with DCIM and monitoring platforms.
| Attribute | Details |
|---|---|
| Model Number | VP5N30AM |
| Function | Switched rPDU with Unit-Level Monitoring |
| Form Factor | Vertical, Zero U |
| Mounting | Vertical with toolless mounting, 72in (1829mm) |
| Input Plug Type | NEMA L15-30P, 10ft (3m) power cord |
| Input Voltage / Current | 208V 3-Phase Delta / 30A |
| Load Capacity | 8.6kW |
| Receptacles | 30 × Locking IEC C13, 6 × Locking IEC C19 |
| Monitoring | Input power, breaker, and outlet-level switching |
| Environmental Monitoring | Supported via optional sensors |
| Display | High-visibility auto-oriented touchscreen LCD |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet, Daisy Chain (up to 50 units) |
| Supported Protocols | SNMP v1/v2c/v3, HTTP/S, SSH, SMTP, Syslog, Modbus TCP, RADIUS, more |
| Data Formats | JSON API, JSON Datalog, CSV |
| Circuit Protection | 3 × 20A Double Pole Magnetic Breakers (10kAIC) |
| Color | Black Powder Coat |
| Temperature Rating | Up to 60°C (140°F) |
| Build Material | Heavy Steel |
| Compliance | UL 62368-1, FCC Class A, RoHS, TAA, BAA COTS Compliant |
| Warranty | 5-Year Limited (with registration) |
| Country of Origin | USA |
| Weight | 22 lbs (9.98 kg) |
