Description

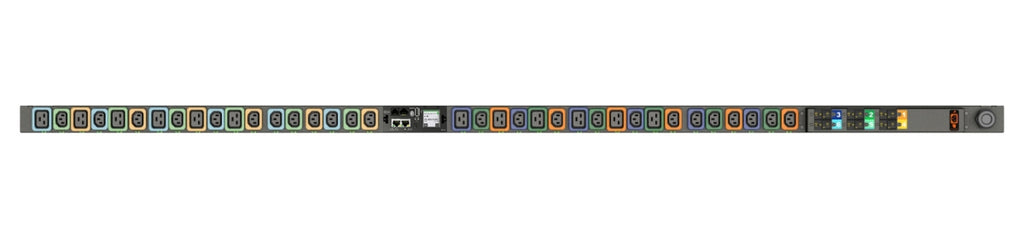

The Vertiv VP5N30AE is a Switched rPDU delivering reliable power distribution with unit-level monitoring and outlet-level control. Featuring 36 locking IEC outlets (24 C13 & 12 C19), this 72-inch vertical unit supports remote rebooting, power usage analysis, and optional environmental monitoring. With 17.2kW capacity and advanced daisy-chaining support, it is ideal for high-density data center deployments.
| Specification | Details |
|---|---|
| Model Number | VP5N30AE |
| Form Factor | Vertical (Zero U) |
| Dimensions (HxWxD) | 72in x 2in x 2.6in (1829mm x 51mm x 66mm) |
| Input Voltage | 200-240/346-415V WYE |
| Current Rating | 30A 3-Phase |
| Power Capacity | 17.2kW |
| Input Plug Type | NEMA L22-30P Twistlock |
| Cord Length | 10 ft (3m) |
| Outlet Configuration | 24 × Locking IEC C13, 12 × Locking IEC C19 |
| Monitoring Type | Switched, Unit Level Monitoring |
| Circuit Protection | (6) 20A Single Pole Magnetic Breakers (10kAIC) |
| Display | Auto-orienting LCD Touchscreen |
| LED Indicators | 36 |
| Remote Management | Individual outlet switching, sequential power-up, remote reboot |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP, HTTP/HTTPS, SSH, RADIUS, Modbus TCP, etc. |
| Environmental Monitoring | Supported (via optional sensors) |
| Daisy-Chaining Support | Up to 50 devices per IP address |
| Mounting | Toolless; fits 61.25in & 64.75in brackets |
| Color | Black powder coat |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS Compliant |
| Warranty | 5 years (with registration within 120 days), otherwise 3 years |
| Operating Temperature | Max 60°C / 140°F |
| Made in | USA (TAA & BAA COTS Compliant) |
| Weight | 22 lbs (9.98 kg) |
