Description

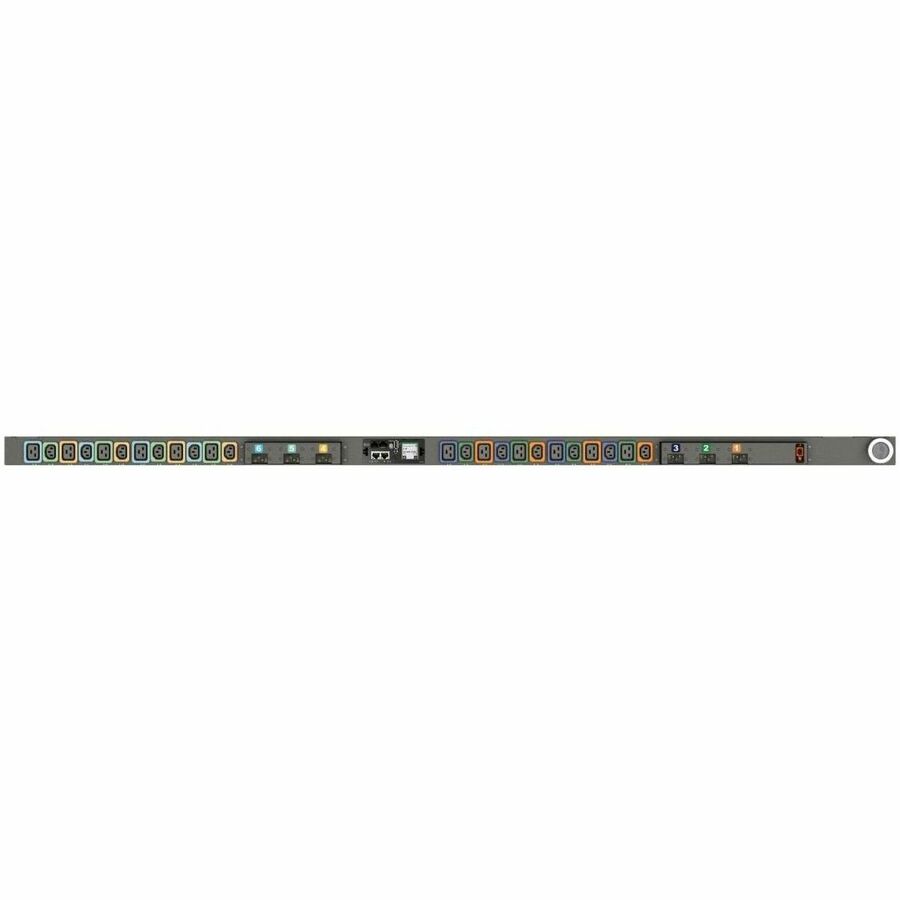

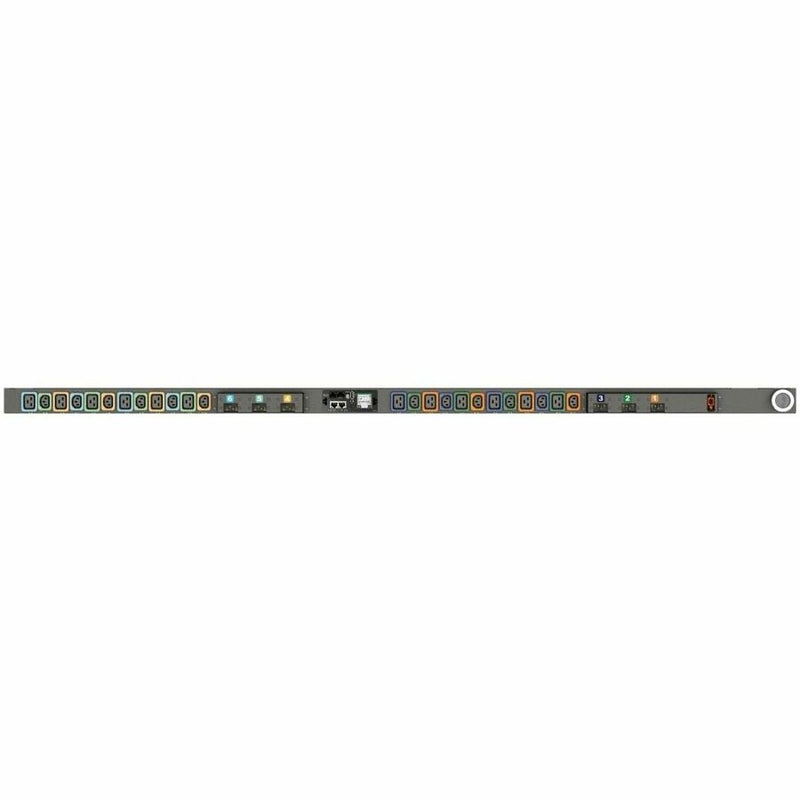

The Vertiv Geist VP5N50A0 is a switched, unit-level monitored rack power distribution unit (rPDU) designed to deliver reliable 3-phase 208V power to critical IT equipment. With 24 individually switchable outlets (12x IEC C13 & 12x IEC C19) and 14.4kW capacity, it supports remote management, environmental monitoring, and advanced power metering. Integrated with ANSI/IEC-compliant accuracy, fault-tolerant daisy chaining, and a dual Ethernet interface, the VP5N50A0 provides intelligent control for modern data center demands.
| Specification | Details |
|---|---|
| Model | VP5N50A0 |
| Input Voltage | 208V 3-Phase Delta |
| Current Rating | 50A |
| Power Capacity | 14.4kW |
| Input Plug Type | 3P+E CA (California Style, Twistlock) |
| Output Receptacles | 12x Locking IEC C13, 12x Locking IEC C19 |
| Switching | Individual outlet control with sequencing and delays |
| Monitoring | Unit-level with circuit/breaker monitoring, environmental ready |
| Display | Auto-oriented LCD with 24 LEDs |
| Mounting | Vertical, Zero U, 70 in (1778 mm) length |
| Enclosure | Heavy steel with black powder coat finish |
| Connectivity | Dual 10/100/1000 Mbps Ethernet, RS232 via RJ45 |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, Modbus TCP, Syslog, etc. |
| Sensor Ports | 1x RJ port (supports up to 16 sensors) |
| Temperature Rating | Max 60°C (140°F) |
| Certifications | UL/c-UL 62368-1, FCC Class A, RoHS Compliant |
| Warranty | 5 years (if registered within 120 days), otherwise 3 years |
| Weight | 22 lbs (9.98 kg) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
