Description

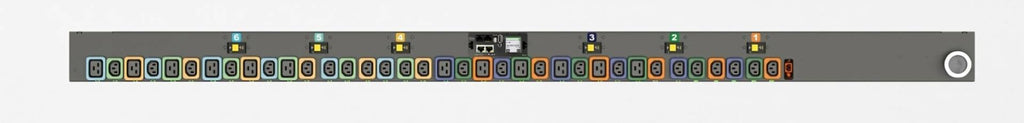

The Vertiv Geist VP5N50A1 is a high-performance switched rack PDU designed for enterprise-level power distribution and management. With 36 locking IEC outlets (24 C13 and 12 C19), 14.4kW capacity at 208V Delta, and individual outlet control, this vertical rPDU ensures reliable power delivery and remote access to vital energy metrics. Featuring daisy-chain Ethernet connectivity, environmental sensor support, and hot-swappable monitoring, it offers advanced monitoring, outlet switching, and flexible deployment for modern data centers.
| Feature | Specification |
|---|---|
| Model | VP5N50A1 |
| Input Voltage | 200–240V Delta |
| Current | 50A x 3 Phase (Delta) |
| Power Capacity | 14.4kW @ 208V |
| Frequency | 50/60Hz |
| Form Factor | Vertical, Zero U |
| Receptacles | (24) Locking IEC C13, (12) Locking IEC C19 |
| Plug Type | 3P+E CA (California Style, 50A, 250V Twistlock) |
| Cord Length | 10 ft / 3 m |
| Monitoring Type | Unit-Level Monitoring w/ Individual Outlet Switching |
| Environmental Monitoring | Optional Sensors via RJ Port (supports up to 16 sensors) |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Supported Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Modbus TCP, RADIUS, TACACS+, etc. |
| Display | Auto-oriented local LCD touchscreen |
| Indicators | 36 LEDs |
| Mounting | Vertical Mounting Bracket Kit Included (7938) |
| Dimensions (HxWxD) | 66.25 x 3.7 x 2.6 in (1683 x 94 x 66 mm) |
| Weight | 24 lbs (10.89 kg) |
| Construction | Heavy Steel, Black Powder Coat |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (with registration), 3-Year (standard) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
