Description

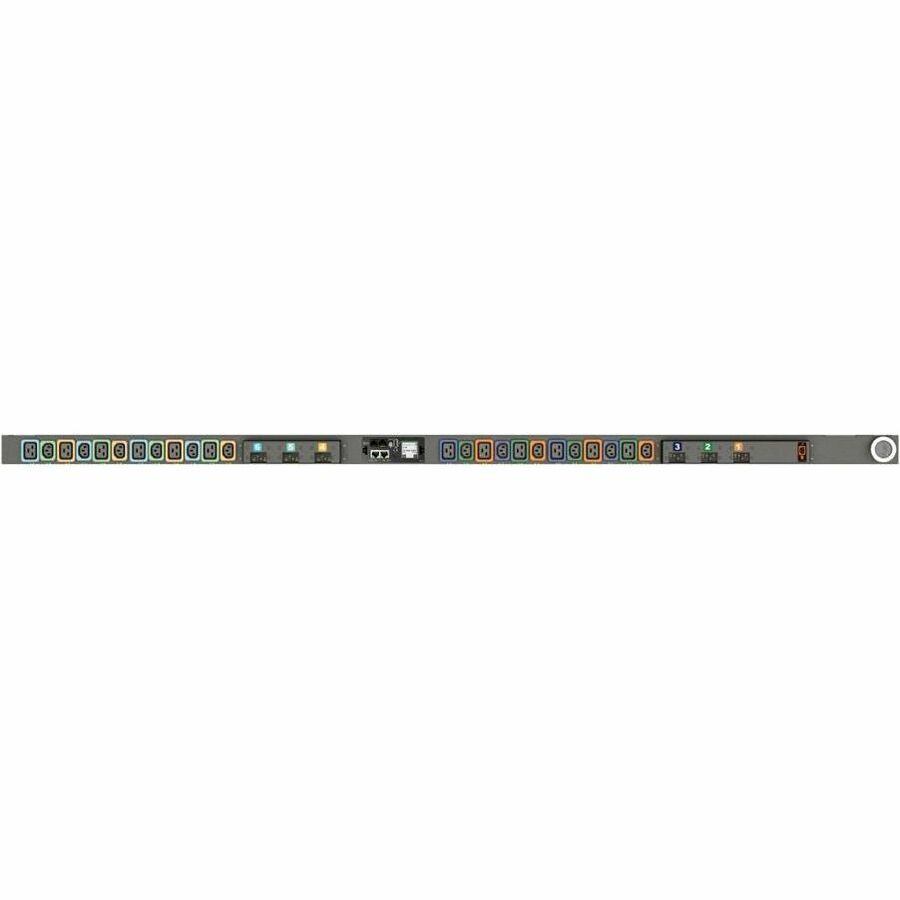

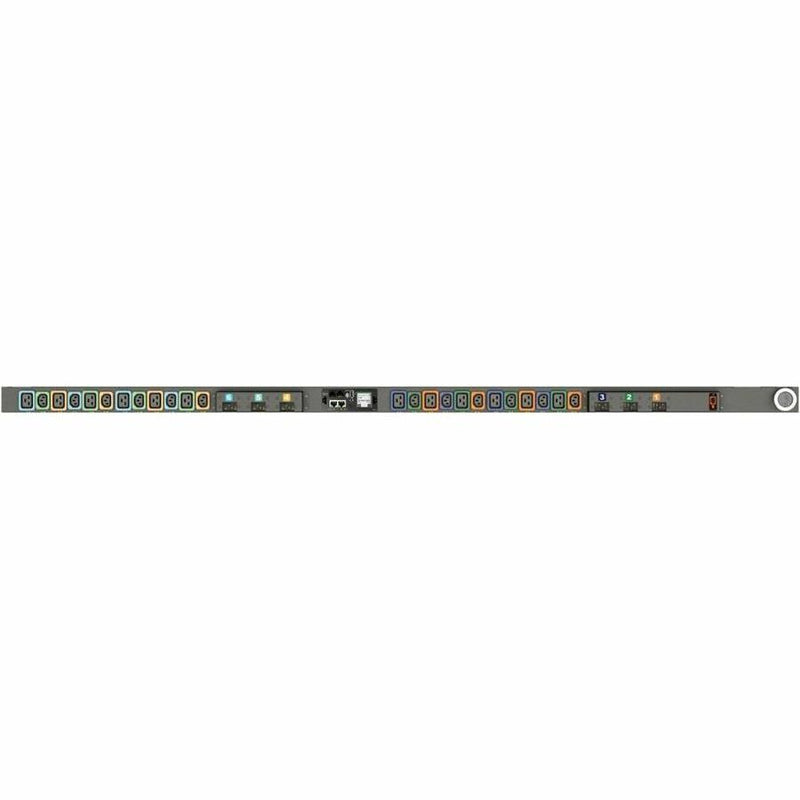

The Vertiv VP5N60A8 is a high-performance switched rack PDU (rPDU) engineered for data centers requiring remote outlet-level power control and advanced monitoring. With a 60A, 208V DELTA input delivering up to 17.2kW, this vertical zero-U rPDU supports mission-critical uptime with local and remote input, phase, and circuit-level monitoring. It features 24 locking IEC outlets (18 C13, 6 C19), environmental sensor support, sequential power-up, daisy chaining, and a robust 5-year warranty when registered. Ideal for high-density IT environments.
| Specification | Details |
|---|---|
| Model Number | VP5N60A8 |
| Form Factor | Vertical, Zero U |
| Input Voltage / Phase | 208V, 3-Phase DELTA |
| Current Rating | 60A |
| Power Capacity | 17.2kW |
| Receptacle Types | 18 × Locking IEC C13, 6 × Locking IEC C19 |
| Monitoring Type | Switched Unit Level Monitoring |
| Remote Management | Individual outlet switching, sequential power-up |
| Monitoring Capabilities | Input, phase, line, breaker-level current, energy |
| Display | Local LCD touchscreen with LEDs |
| Network Protocols Supported | SNMP, HTTPS, SSH, RADIUS, TACACS+, Modbus TCP |
| Connectivity | Dual Gigabit Ethernet, RS232 RJ45, USB |
| Environmental Sensors Support | Yes (up to 16 via RJ port) |
| Daisy Chaining | Up to 50 rPDUs with single IP address |
| Mounting | Toolless 7938 Vertical Mounting Kit Included |
| Dimensions (L×W×D) | 72 × 2.25 × 2.6 in (1829 × 58 × 66 mm) |
| Chassis Color | Black Powder Coat |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5-Year Limited (with registration) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
