Description

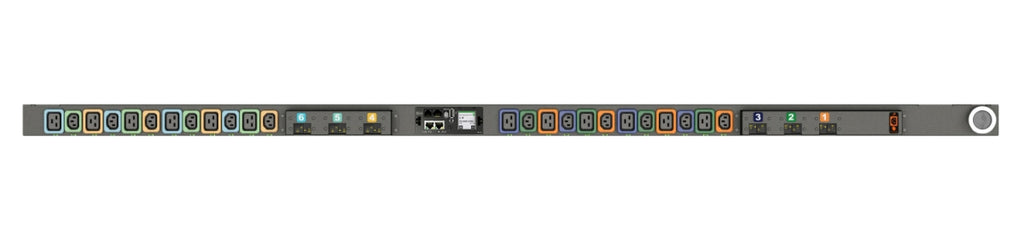

The Vertiv VP5N60AA PowerIT™ rPDU offers intelligent, switched outlet-level control and reliable power distribution for critical IT infrastructure. Featuring 24 combination C13/C19 outlets, a 60A 208V Delta input, and advanced input power monitoring, it ensures real-time insight and control over energy usage. With remote management, environmental monitoring support, and daisy-chaining for up to 50 devices, this vertical rPDU maximizes uptime, scalability, and operational efficiency for modern data centers.
| Specification | Details |
|---|---|
| Model Number | VP5N60AA |
| Power Rating | 60A, 208V Delta, 17.2kW |
| Form Factor | Vertical (Zero U) |
| Outlets | 24 x Combination C13/C19 |
| Monitoring | Unit-level, outlet switching, breaker monitoring |
| Remote Access | Dual Gigabit Ethernet, SNMP, HTTPS, SSH, JSON, Modbus TCP |
| Environmental Monitoring | Optional sensors supported via RJ port (up to 16 sensors) |
| Mounting | Toolless, 61.25in / 64.75in center spacing |
| Display | Local LCD touchscreen display |
| Daisy-Chaining | Up to 50 devices per IP, with RSTP for fault tolerance |
| Plug Type | IEC60309 3P+E (IP67), 10ft (3m) cable |
| Breakers | (6) 20A Double Pole Magnetic, 10kAIC |
| Enclosure Finish | Heavy Steel, Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A, TAA & BAA Compliant |
| Dimensions (HxWxD) | 70in x 2.25in x 2.6in (1778mm x 58mm x 66mm) |
| Weight | 22 lbs (9.98 kg) |
| Warranty | 5-year limited (with registration) |
