Description

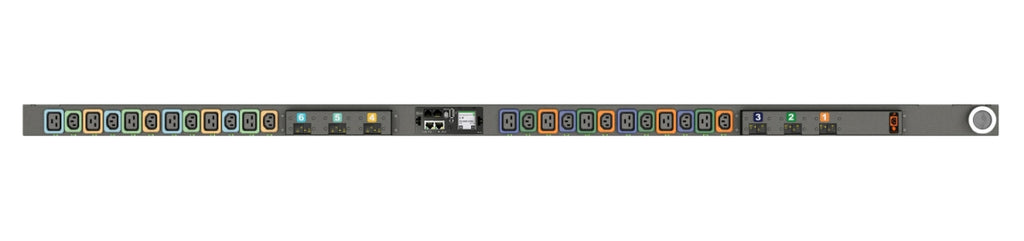

The Vertiv™ VP5N60A9 is a switched rack PDU (rPDU) that delivers reliable and intelligent power distribution for high-density IT environments. With 60A, 208V 3-phase input and a load capacity of 17.2kW, this vertical unit features 24 combination C13/C19 outlets and individual outlet-level switching. It includes unit-level monitoring, optional environmental sensing, circuit monitoring, and a local touchscreen display. Ideal for data centers demanding remote access, energy tracking, and redundancy, the VP5N60A9 supports advanced protocols and daisy-chaining of up to 50 devices on one IP address.
| Specification | Details |
|---|---|
| Part Number | VP5N60A9 |
| Type | Switched rPDU with Unit-Level Monitoring |
| Input Voltage / Phases | 208V, 3-Phase Delta |
| Current Rating | 60A |
| Power Capacity | 17.2kW |
| Frequency | 50/60Hz |
| Receptacles | 24x Combination C13/C19 |
| Breakers | (6) 20A Double Pole Magnetic, 10kAIC |
| Monitoring | Input power, breaker current, optional environmental |
| Outlet Control | Individual switching with time delays and power-up seq. |
| Network Connectivity | Dual Ethernet, supports SNMP, SSH, RADIUS, Modbus TCP |
| Display | Local LCD touchscreen, 24x LED status indicators |
| Form Factor | Vertical (Zero U), 70in / 1778mm |
| Mounting | Toolless with 61.25in / 64.75in spacing |
| Power Cord / Plug | 10ft / 3m, IEC60309 3P+E (IP44) |
| Chassis Color | Black Powder Coat |
| Environmental Sensors | 1 RJ port, supports up to 16 sensors |
| Material | Heavy Steel |
| Operating Temp. | Max 60°C / 140°F |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Country of Origin | USA, TAA & BAA COTS Compliant |
| Warranty | 5 years with registration (3 years otherwise) |
