Description
The ASUS RS500A-E10-RS12U is a high-performance 1U rackmount server designed for data-intensive computing, AI workloads, and scalable enterprise deployments. Powered by AMD EPYC™ 7002 Series processors, it delivers exceptional compute density, superior memory bandwidth, and advanced security features.
Supporting up to 16 DDR4 DIMMs for 2 TB total memory, this system provides outstanding flexibility for virtualization, HPC, and business-critical applications. With twelve 2.5" hot-swap bays supporting SATA, SAS, and NVMe drives plus an M.2 slot for high-speed OS storage, the RS500A-E10-RS12U enables balanced performance and expansion capability.
Dual Gigabit Ethernet ports, redundant 650W 80 Plus Platinum power supplies, and PCIe 4.0 slots ensure high-speed data throughput, system reliability, and reduced operational costs. The integrated ASMB9-iKVM remote management module and ASUS Control Center simplify centralized monitoring and system maintenance, making this server an excellent choice for modern datacenters and enterprise IT infrastructure.
| Category | Specification |
|---|---|
| Model | ASUS RS500A-E10-RS12U |
| Form Factor | Rackmount 1U |
| Processor Support | 1x AMD EPYC™ 7002 Series (Socket SP3) |
| CPU Max TDP | Up to 225W |
| Chipset | SoC Architecture |
| Memory Type | DDR4 SDRAM, Registered or LRDIMM |
| Memory Slots | 16 DIMM (288-pin) |
| Max Memory Capacity | Up to 2 TB |

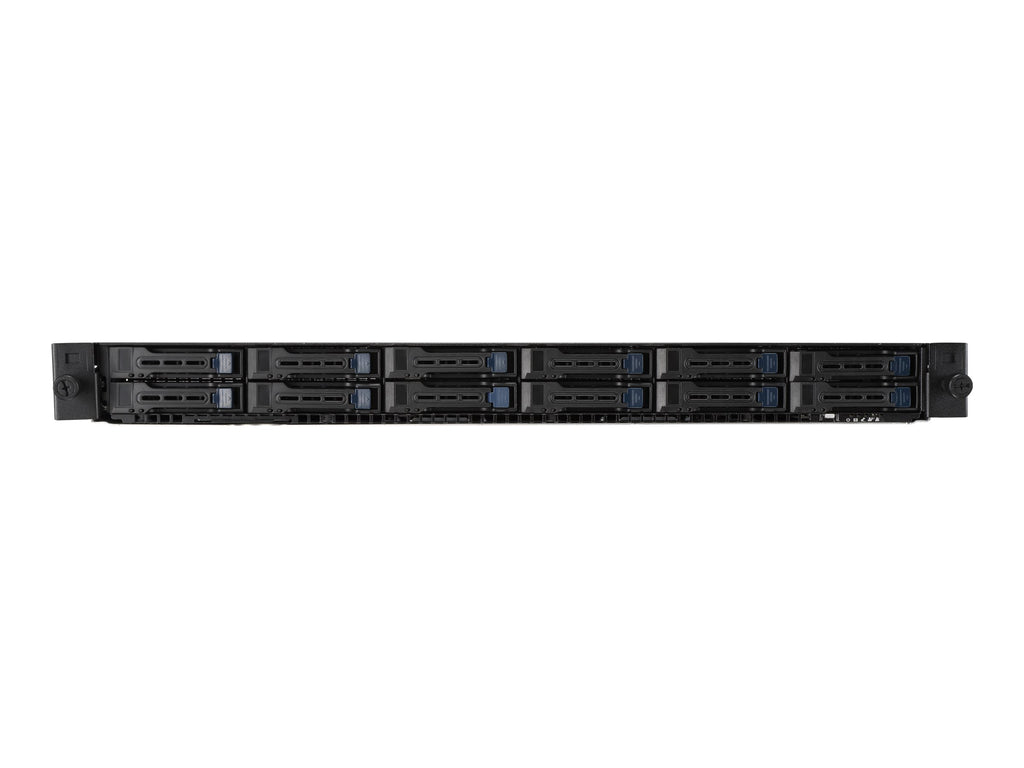

| Storage Bays | 12x 2.5" hot-swap SATA/SAS/NVMe |
| M.2 Support | 1x M.2 22110 SSD slot |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x8 (OCP 2.0 mezzanine) |
| Storage Controller | 1x SATA, 1x NVMe |
| Networking | Dual Gigabit Ethernet (Intel I350-AM2), optional OCP 2.0 up to 100G |
| Graphics Controller | ASPEED AST2500 with VGA output |
| Video Memory | 64 MB |
| Power Supply | 2x 650W redundant 80 Plus Platinum |
| Power Redundancy | Yes (1+1 configuration) |
| Power Efficiency | 92%+ efficiency |
| Cooling Technology | ASUS Thermal Radar 2.0 multi-zone intelligent fan control |
| Remote Management | ASMB9-iKVM module, ASUS Control Center (ACC) |

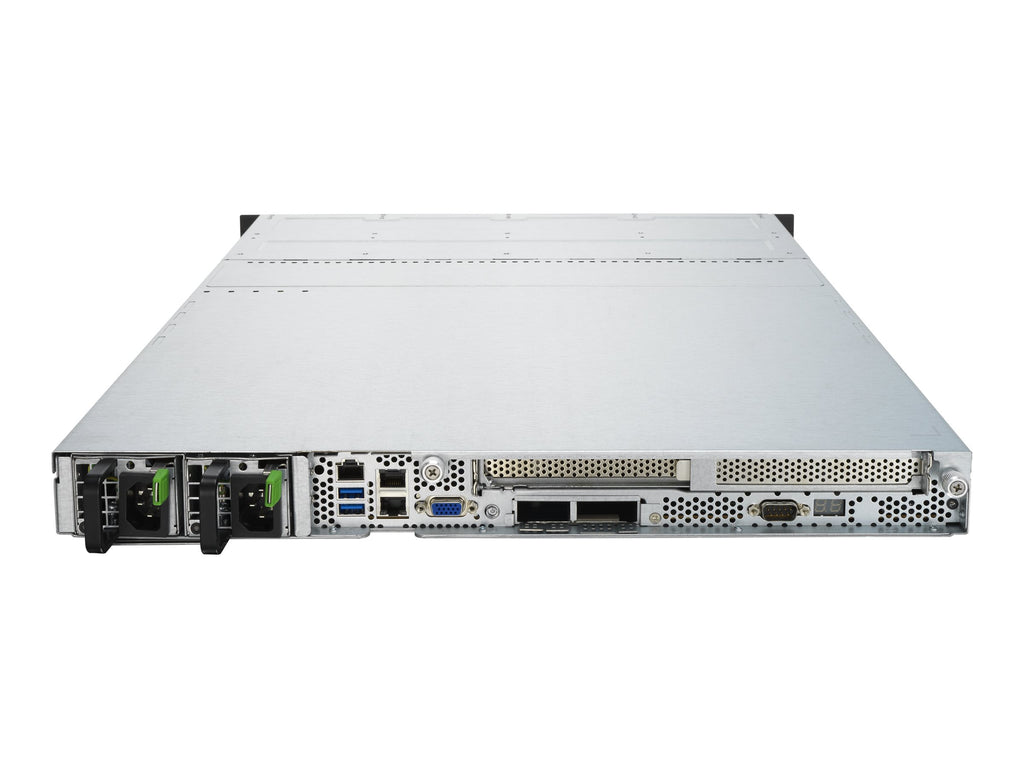

| I/O Ports | 2x USB 3.0, 2x LAN, 1x VGA, 1x Serial, 1x Management port |
| Compliance | FCC Class A certified |
| Operating Temperature | 10°C – 35°C |
| Weight | 11 kg (net), 17 kg (shipping) |
| Dimensions | 1U rackmount chassis |
| Color | Black |
| Use Case | Enterprise server, HPC, virtualization, AI workloads |
