Description

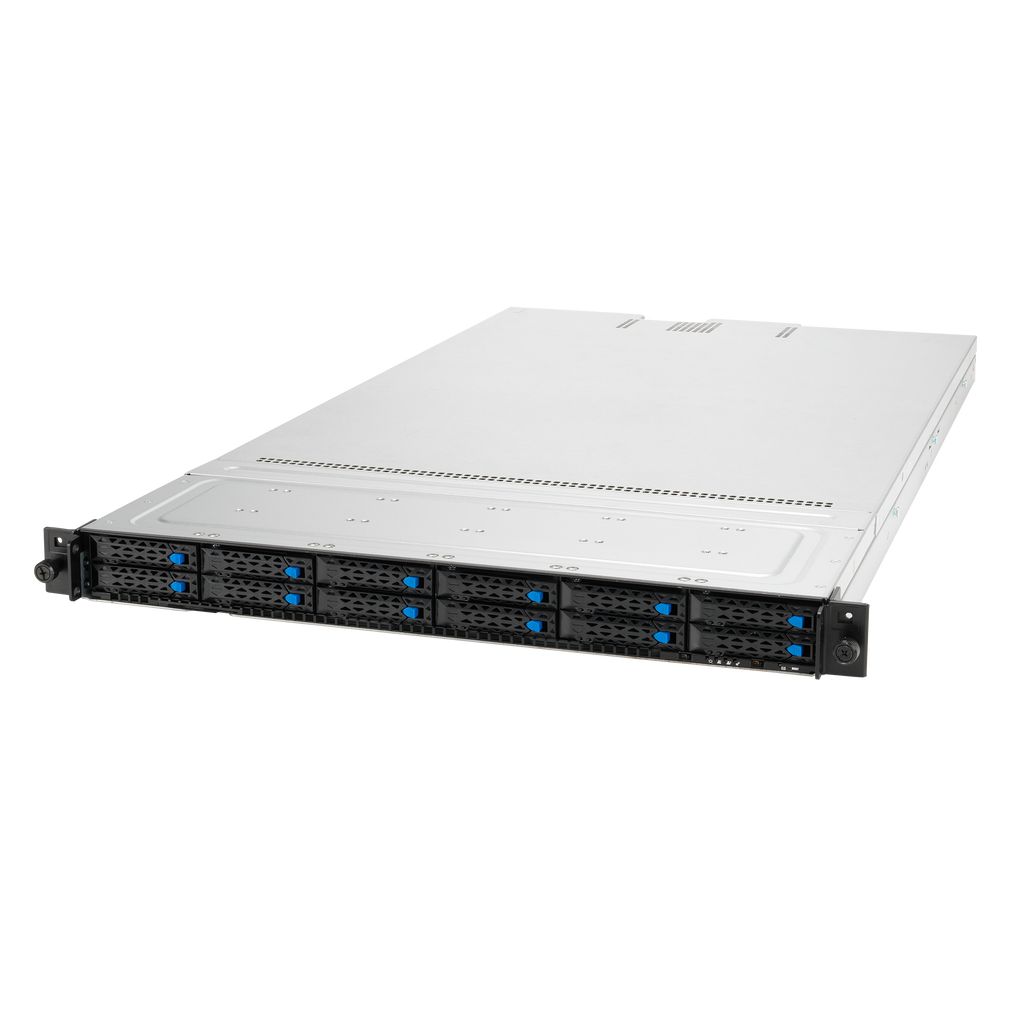

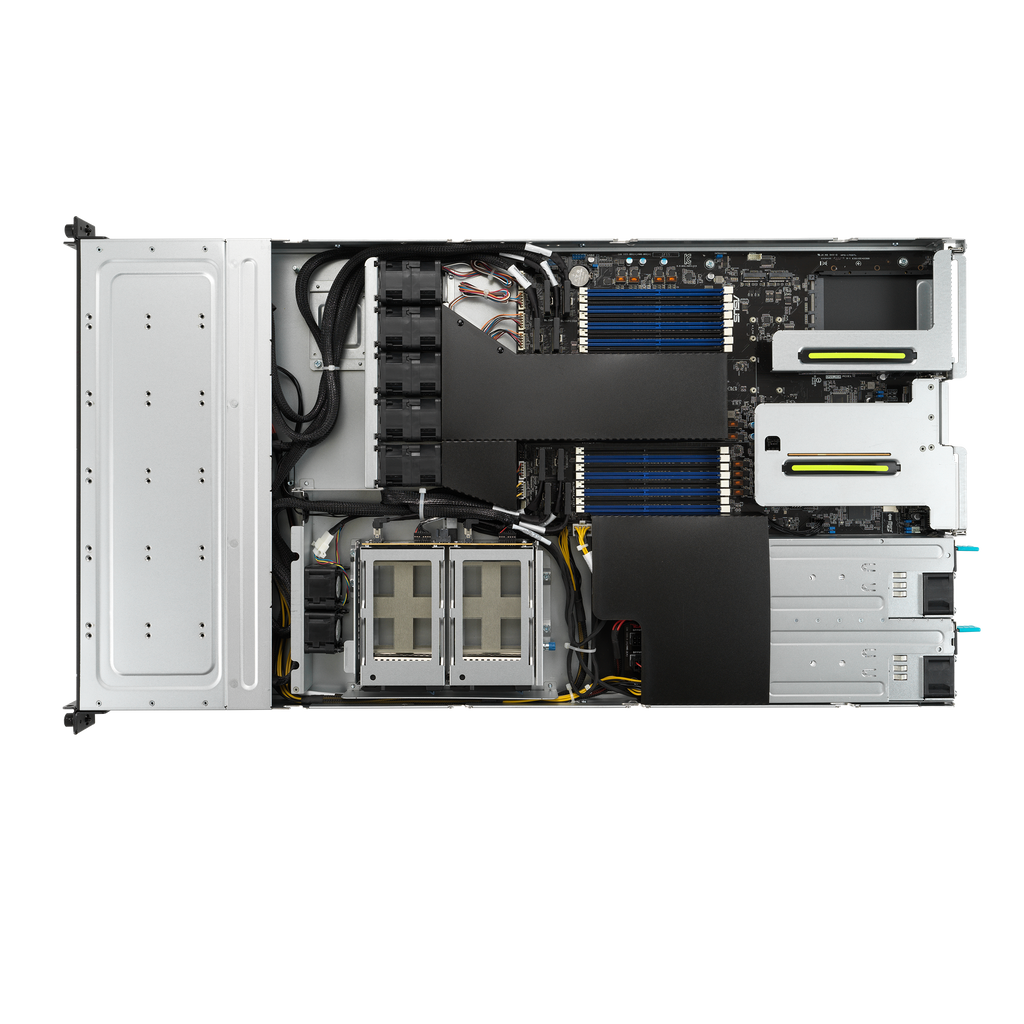

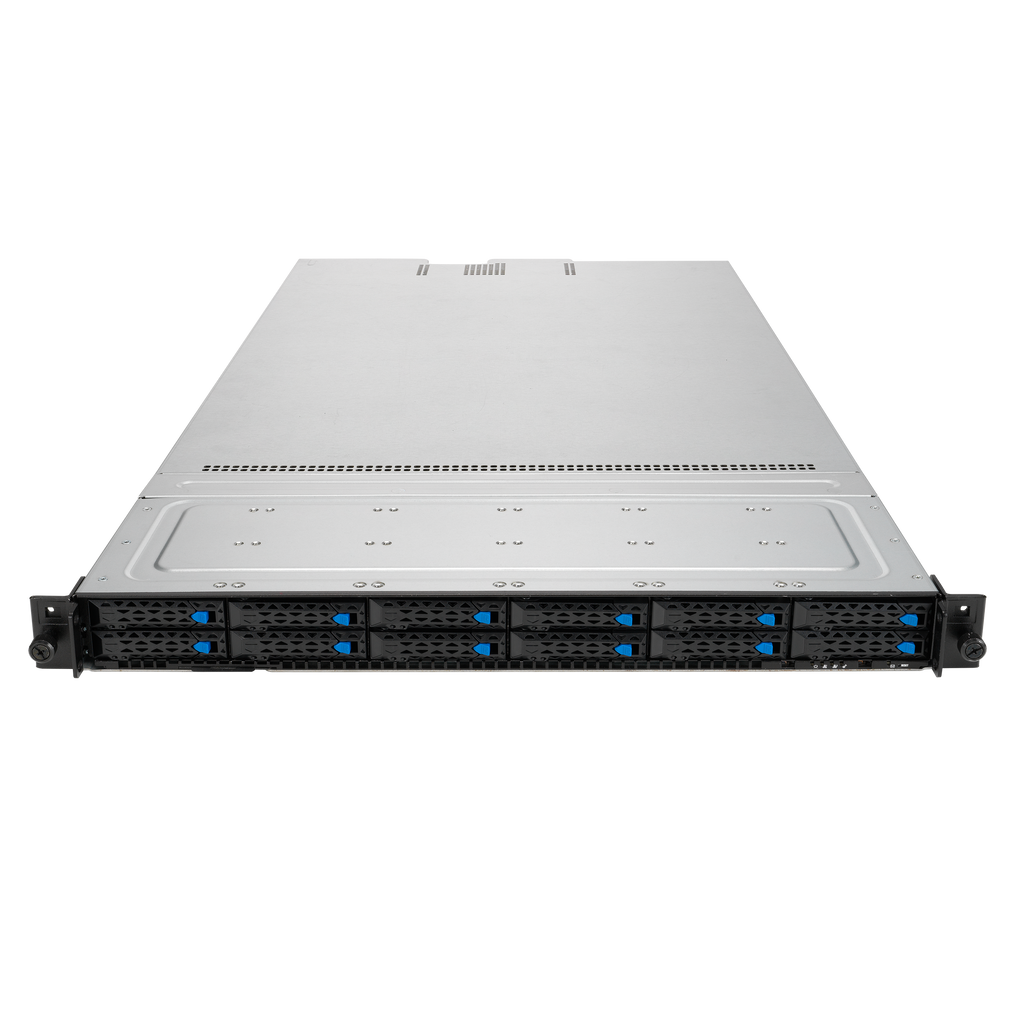

The ASUS RS500A-E11-WOCPU003Z is a high-performance 1U rack server built on the AMD EPYC™ 7003 Series platform with AMD 3D V-Cache™ technology, engineered for general-purpose and enterprise applications. Designed to deliver exceptional performance and expandability, it features 16 DIMM slots supporting up to 4TB of DDR4-3200 memory, 12 hot-swap 2.5-inch drive bays, and an optional internal 4-bay cage, providing flexible storage scalability within a compact form factor.
With 3 PCIe 4.0 slots, an OCP 3.0 mezzanine slot, and dual Intel® Gigabit LAN ports, the RS500A-E11-WOCPU003Z ensures powerful I/O throughput and network reliability. Integrated ASMB10-iKVM (AST2600) and ASUS Control Center enable comprehensive in-band and out-of-band management, while redundant 800W 80 PLUS Platinum or 850W Titanium power supplies ensure continuous uptime for mission-critical operations.
Optimized for data centers, virtualization, and enterprise workloads, this system delivers exceptional balance between performance, scalability, and efficiency — redefining what a 1U rackmount server can achieve.
| Category | Specification |
|---|---|
| Model | ASUS RS500A-E11-WOCPU003Z |
| Form Factor | 1U Rackmount |
| Processor Support | 1 x AMD Socket SP3 (LGA-4094), supports 3rd Gen AMD EPYC™ with AMD 3D V-Cache™ (up to 280W) |
| Memory | 16 DIMM slots (8-channel, 2 DIMMs per channel); up to 4,096GB DDR4 3200/2933 RDIMM/LRDIMM/LRDIMM 3DS |
| Expansion Slots | 1 x PCIe 4.0 x16 (FH, HL), 1 x PCIe 4.0 x16 (LP, HL), 1 x PCIe 4.0 x8 (LP, HL), 1 x OCP 3.0 socket (Gen4 x16 link) |
| Storage Bays | 12 x 2.5" hot-swap bays (SATA/SAS/NVMe supported); optional 4 x 2.5" internal bays (SATA/NVMe) |
| M.2 Support | 2 x M.2 slots (Gen4 x4 link or SATA, up to 22110 module) |
| Networking | 2 x Intel® I350-AM2 Gigabit LAN ports; 1 x Dedicated Management Port (BMC AST2600) |
| Management | ASUS Control Center (in-band), ASMB10-iKVM (AST2600, out-of-band) |
| Security | TPM-SPI module (optional), PFR module (optional) |

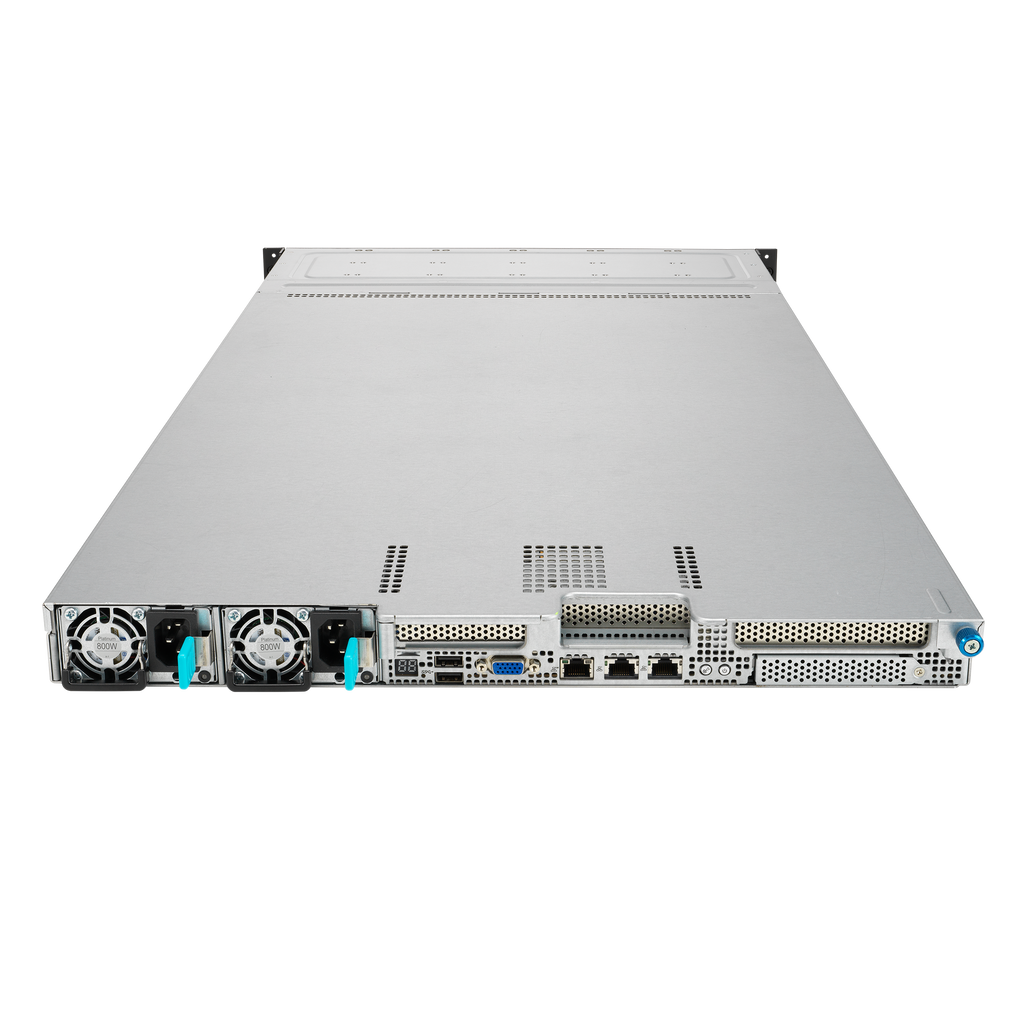

| I/O Ports (Rear) | 2 x USB 3.2 Gen1, 2 x RJ45 LAN, 1 x Management Port, 1 x VGA, 1 x COM |
| Buttons/LEDs | Power, Location, and Message LEDs (Front and Rear) |
| Power Supply | 1+1 Redundant 800W 80 PLUS Platinum or 850W 80 PLUS Titanium |
| Dimensions (W x D x H) | 449 x 842 x 44 mm (17.68" x 33.15" x 1.73") |
| Weight | Net: 17 kg; Gross: 22 kg |
| Operating Temperature | 10°C ~ 35°C |
| Non-Operating Temperature | -40°C ~ 70°C |
| Humidity (Non-Condensing) | 20% ~ 90% |
| Operating System Support | Refer to ASUS Server OS Support List |
| Target Applications | General-purpose, Enterprise, Data Center, and Virtualization Environments |
