Description

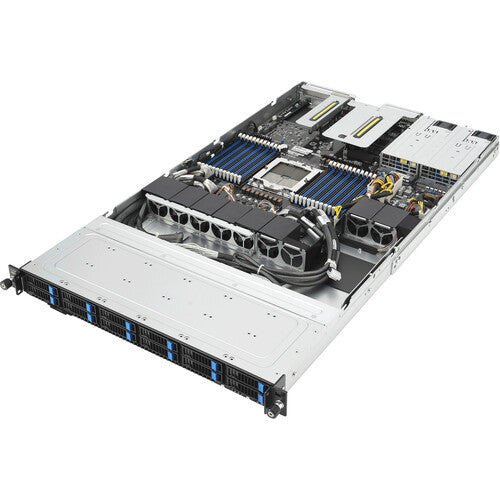

The ASUS RS501A-E12-RS12U is a high-performance 1U rack server engineered for enterprise environments requiring exceptional compute density and scalability. Powered by the AMD EPYC 9005 / 9004 Series processors, it delivers advanced performance with support for up to 360 W TDP—ideal for virtualization, database, and general-purpose workloads.

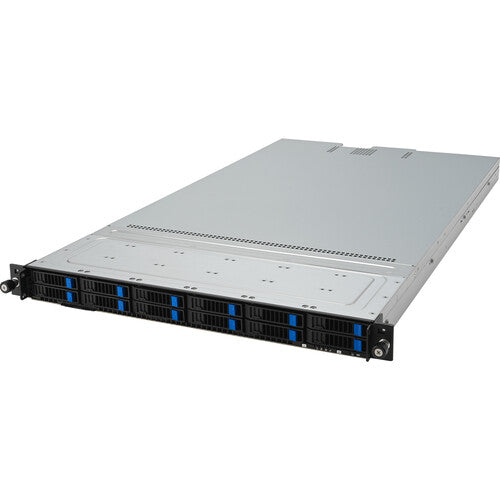

Designed with 24 DDR5 DIMM slots (12-channel architecture), the system supports up to 3 TB of high-speed 6400 MHz memory, ensuring optimal throughput and responsiveness for mission-critical operations. The chassis accommodates 12 front hot-swap 2.5" bays, expandable via an optional 4-bay internal mid-cage, offering up to 16 total drives for maximum storage flexibility.
For expandability, the RS501A-E12-RS12U provides 3 PCIe Gen5 slots plus an OCP 3.0 socket, allowing installation of advanced NICs, RAID controllers, or GPU accelerators. Connectivity is managed through dual Gigabit LAN ports and a dedicated management port powered by the ASPEED AST2600 BMC.
With redundant 1200 W Platinum or 1600 W Titanium power supplies, comprehensive management through ASMB11-iKVM and ASUS Control Center, and a compact 1U chassis, this server delivers exceptional performance, reliability, and operational efficiency for modern data centers.
| Category | Specification |
|---|---|
| Model | ASUS RS501A-E12-RS12U |
| Form Factor | 1U Rack Server |
| Processor | 1 × Socket SP5 (LGA 6096), supports AMD EPYC 9005 / 9004 Series CPUs (up to 360 W TDP) |
| Memory Slots | 24 × DDR5 DIMM slots (12 channels, 2 DIMM per channel) |
| Memory Type & Speed | DDR5 6400 / 5600 / 4800 RDIMM / 3DS RDIMM (up to 5200 MHz depending on configuration) |
| Max Memory Capacity | 3,072 GB (3 TB) |
| Expansion Slots | 3 × PCIe Gen5 slots + 1 × OCP 3.0 socket (Gen5 x16 link) |
| Storage Bays | Front: 12 × 2.5" Hot-swap (SATA/SAS/NVMe U.2/U.3); Optional internal 4-bay cage (mid-bay SKU) |
| M.2 Slots | 2 × M.2 (Gen4 x4 or SATA, up to 22110 module) |
| Networking | 2 × 1 GbE RJ-45 (Intel i350-AM2 controller) + 1 × Dedicated Management Port (BMC AST2600) |
| Graphics Controller | ASPEED AST2600 (BMC integrated) |
| Management | ASUS Control Center (in-band), ASMB11-iKVM (BMC AST2600, out-of-band) |
| Security | Optional TPM module, PFR module (project-based support) |

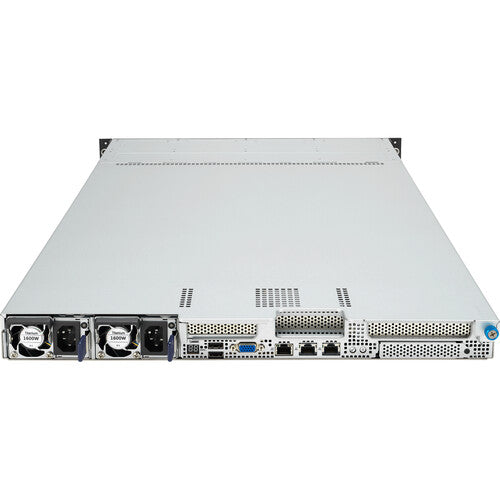

| Rear I/O Ports | 2 × USB 3.2 Gen1, 2 × Gigabit LAN, 1 × Management RJ-45, 1 × VGA |
| Power Supply | 1 + 1 Redundant 1200 W Platinum / 1600 W Titanium PSU |
| Dimensions (W × D × H) | 449 × 842.5 × 43.85 mm (17.68 × 33.17 × 1.73 in) |
| Weight | Net: 14.16 kg • Gross: 19.16 kg |
| Operating Temperature | 10 °C – 35 °C (Non-operation: –40 °C – 70 °C) |
| Operating Humidity | 20 % – 90 % (non-condensing) |
