Description
The ASUS RS501A-E12-RS4U-16TWH is a high-efficiency 1U rackmount server engineered for modern data centers and enterprise workloads. Powered by the AMD EPYC™ 9005 Series processors with AMD 3D V-Cache technology, it delivers cutting-edge performance and exceptional scalability for compute-intensive operations.
Featuring 24 DDR5 DIMM slots across 12 memory channels supporting up to 3TB of DDR5 6400MHz memory, the RS501A-E12-RS4U ensures rapid data throughput and superior multitasking. The chassis includes 4 front 2.5" hot-swap bays supporting NVMe/SATA/SAS drives, along with 2 M.2 PCIe 4.0 slots for additional high-speed storage.
Expansion flexibility comes from 3 PCIe Gen5 slots and 1 OCP 3.0 slot, enabling future-ready GPU, networking, or storage upgrades. With dual Intel® I350-AM2 Gigabit LAN, ASMB11-iKVM (BMC, AST2600), and ASUS Control Center, it offers comprehensive in-band and out-of-band management for streamlined IT operations.
Designed for reliability, it includes 1+1 redundant 1200W (Platinum) or 1600W (Titanium) power supplies and a robust cooling architecture to ensure continuous uptime in demanding enterprise environments.
| Category | Specification |
|---|---|
| Processor | 1 x Socket SP5 (LGA 6096) supporting AMD EPYC™ 9005 or 9004 Series processors, up to 450W, with AMD 3D V-Cache technology |
| Memory Slots | 24 x DDR5 DIMM slots (12-channel, 2 DIMMs per channel) |
| Memory Capacity | Up to 3,072GB DDR5 RDIMM/3DS RDIMM |
| Memory Speed | Up to 6400 MHz (EPYC 9005); up to 4800 MHz (EPYC 9004) |
| Storage Bays | Front: 4 x 2.5" hot-swap bays (NVMe/SATA/SAS supported); 2 x M.2 PCIe 4.0 x4 or SATA (up to 22110) |
| Expansion Slots | 3 x PCIe Gen5 slots (1 x FHHL x16, 2 x LPHL x16/x8), 1 x OCP 3.0 socket (Gen5 x16 link) |
| Networking | 2 x 1GbE RJ45 LAN (Intel I350-AM2); 1 x Dedicated management port (BMC AST2600) |
| Management | ASUS Control Center (in-band), ASMB11-iKVM (BMC AST2600) |
| Security | Optional TPM module; optional PFR module |

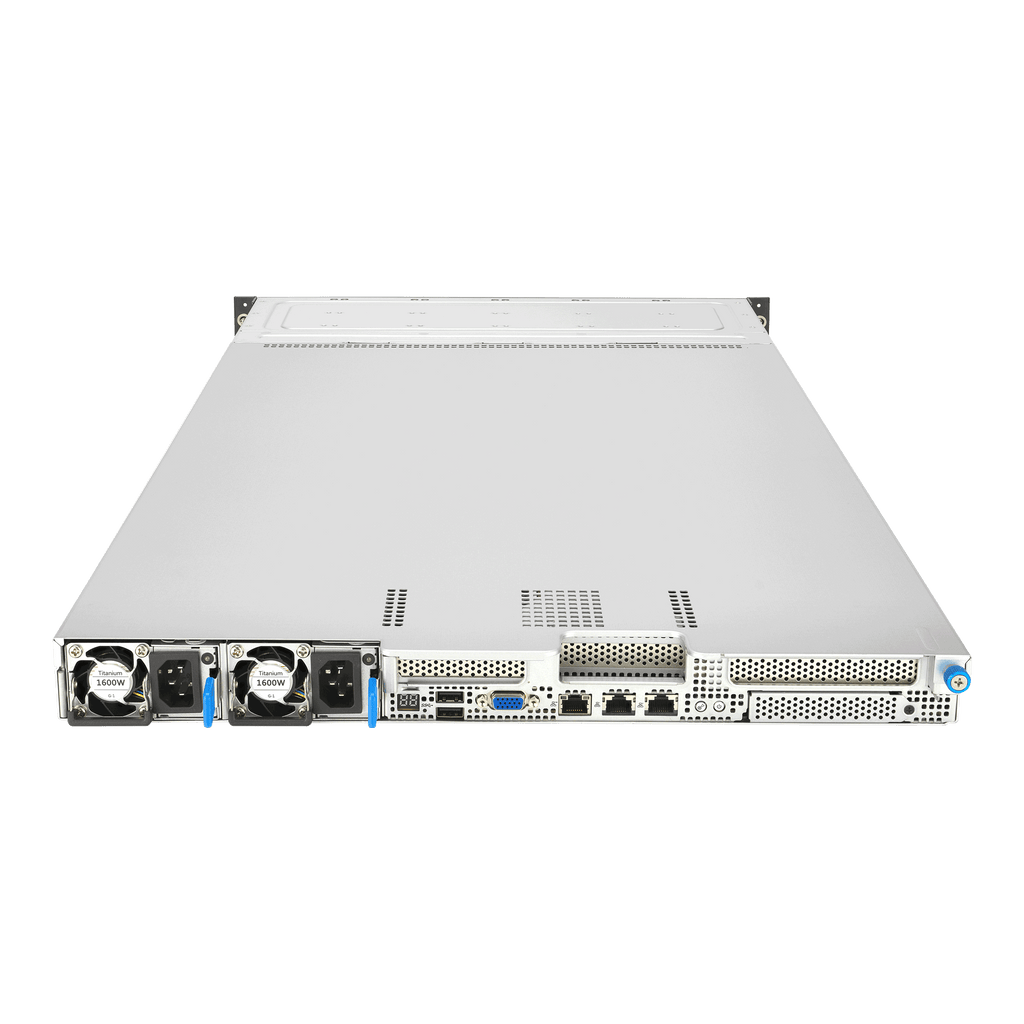

| Rear I/O Ports | 2 x USB 3.2 Gen1, 2 x LAN (RJ45), 1 x VGA, 1 x Management LAN |
| Power Supply | 1+1 Redundant 1200W 80 PLUS Platinum or 1600W 80 PLUS Titanium |
| Dimensions (W x D x H) | 449mm x 842.5mm x 43.85mm (17.68" x 33.15" x 1.73") |
| Net Weight | 13.15 kg |
| Gross Weight | 18.15 kg |
| Operating Temperature | 10°C ~ 35°C |
| Non-Operating Temperature | -40°C ~ 70°C |
| Non-Operating Humidity | 20% ~ 90% (non-condensing) |
