Description

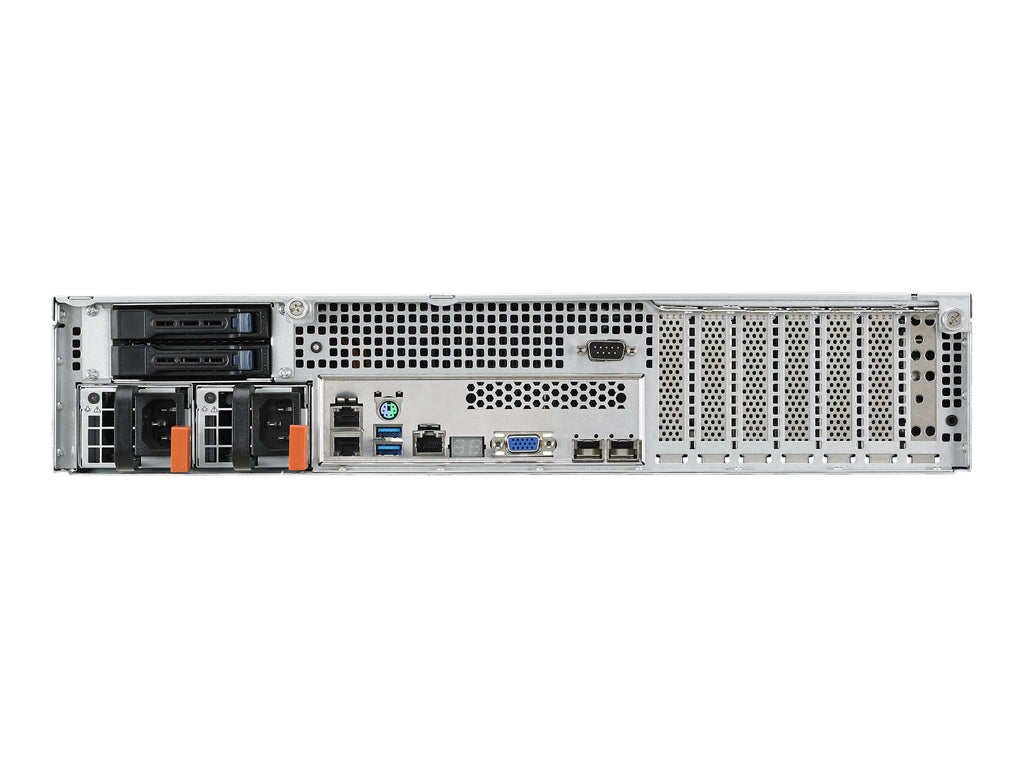

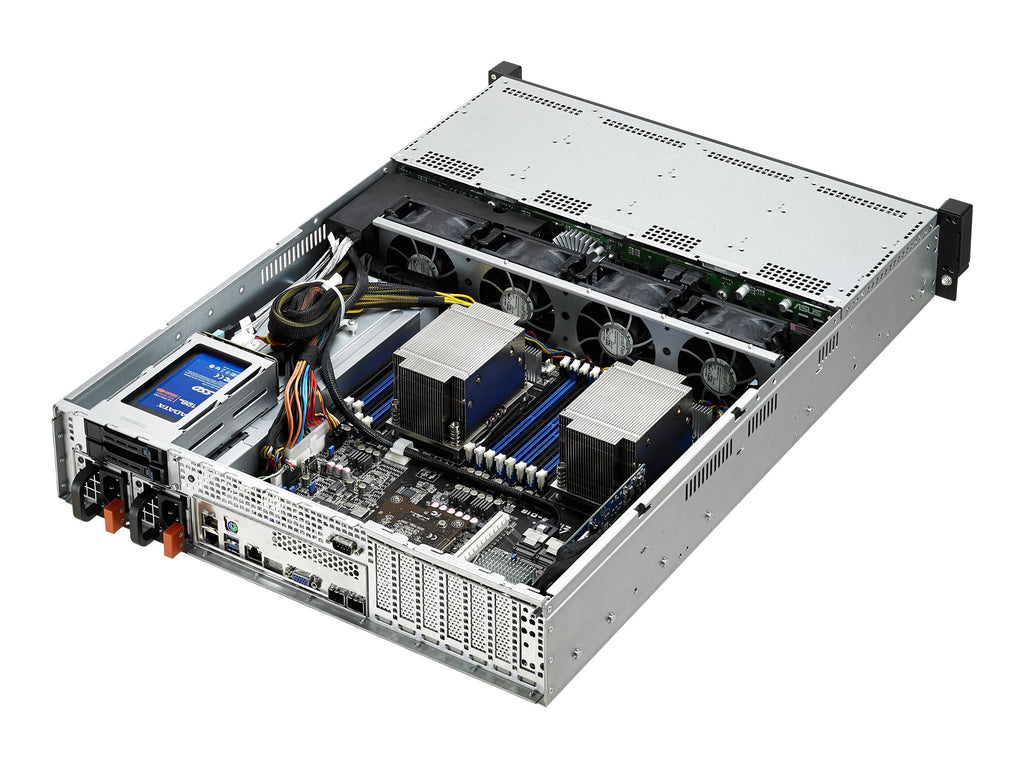

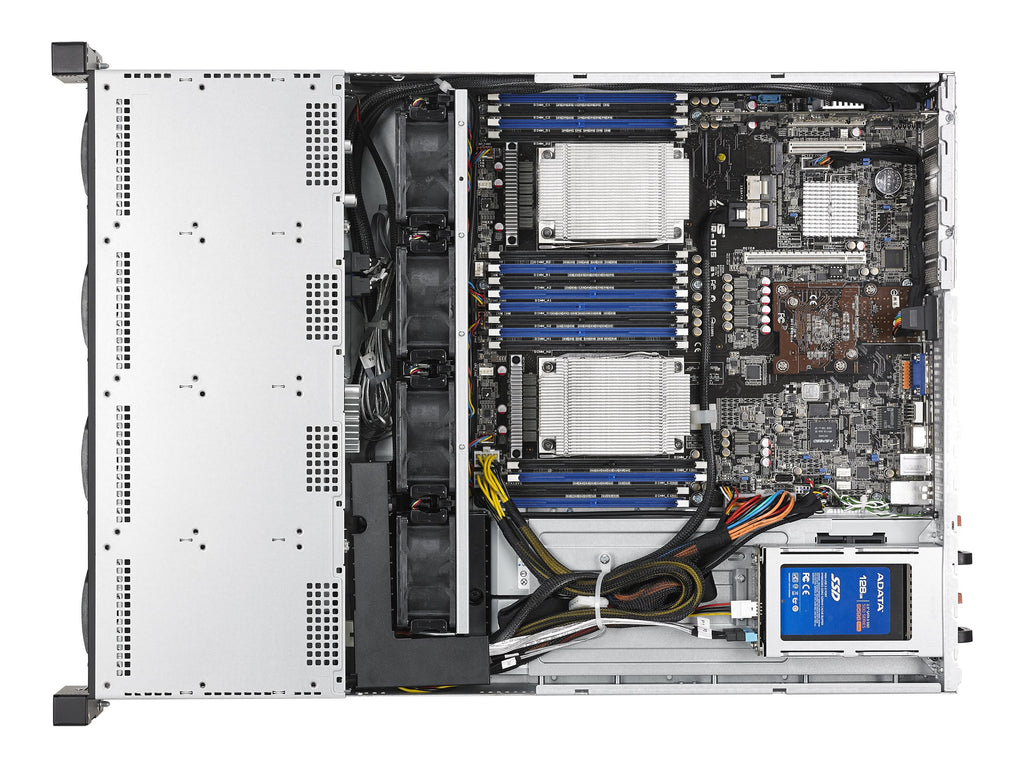

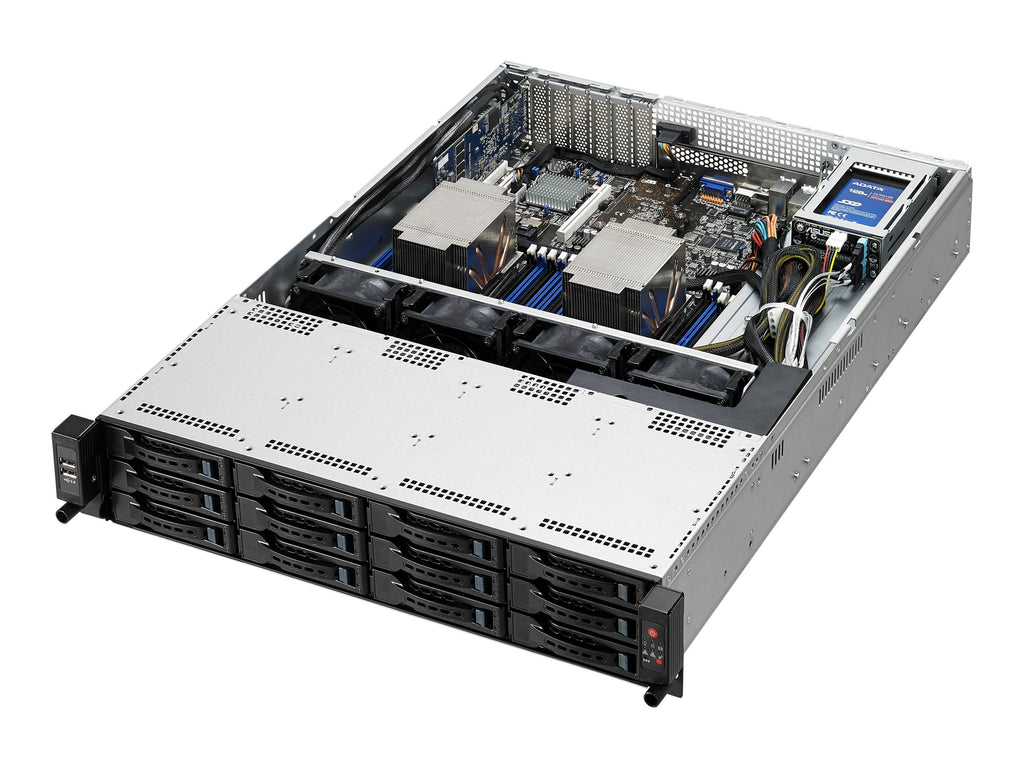

The ASUS RS520-E8-RS12-E V2 is a high-performance 2U rackmount server built for enterprise-grade reliability, flexibility, and scalability. Powered by the Intel® C612 chipset and supporting dual Intel® Xeon® processors (Socket LGA2011-v3), it delivers exceptional computing power for data-intensive applications, virtualization, and cloud infrastructure.
Designed for superior airflow and thermal efficiency, the server accommodates up to 14 hot-swap bays (12 x 3.5" and 2 x 2.5"), providing versatile storage configurations. It supports up to 1 TB of DDR4 SDRAM across 16 DIMM slots, enabling high-capacity memory setups for demanding workloads. Dual redundant 770W 80 PLUS Gold power supplies ensure maximum uptime and energy efficiency, while onboard ASPEED AST2400 management offers KVM-over-IP remote control for easier system administration.
With comprehensive I/O—including Gigabit Ethernet, USB 3.0, VGA, and PCIe expansion—the RS520-E8-RS12-E V2 delivers the robust reliability and flexibility required by modern enterprise environments.
| Category | Specification |
|---|---|
| Form Factor | Rack-mountable – 2U |
| Server Type | Barebone Server |
| Processor Support | Up to 2 x Intel Xeon (Socket LGA2011-v3) |
| Chipset | Intel C612 |
| Memory | 16 x DIMM 288-pin slots (DDR4 SDRAM, Registered / LRDIMM) |
| Max Memory Capacity | Up to 1 TB |
| Storage Bays | 12 x 3.5" and 2 x 2.5" hot-swap SATA bays |
| RAID Support | RAID 0, 1, 5, 10 |
| Storage Controller | SATA 6Gb/s |
| Graphics Controller | ASPEED AST2400 (32 MB video memory) |
| Networking | 2 x Intel I210-AT Gigabit Ethernet ports + 1 x management port |
| Expansion Slots | 1 x PCIe 3.0 x16 (x8 mode), 3 x PCIe 3.0 x8, 1 x M.2 slot |
| I/O Ports | 2 x USB 3.0, 2 x USB 2.0 (front), 1 x VGA, 1 x PS/2, 1 x management |
| Power Supply | 2 x 770W 80 PLUS Gold redundant (1+1) |
| Cooling | Optimized airflow design with hot-swap bays |
| Dimensions (W x D x H) | 44.4 x 61.5 x 8.8 cm |
| Weight | 23 kg |
| Operating Temperature | 10°C – 35°C |
| Compliance | FCC Class A, C-Tick, BSMI |
| Operating System | No OS pre-installed |
| Color | Black |
