Description
The ASUS RS520A-E12-RS12U-16W1G2.5R is a high-performance 2U rack-mount server powered by the latest AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ technology. Engineered for data centers and enterprise applications, it combines exceptional scalability with efficient thermal design.
With support for up to 24 DIMM DDR5 4800 MHz modules, PCIe Gen 5 expansion, and dual-slot GPU cards, it delivers the computing power required for AI workloads, virtualization, and storage-intensive deployments. The server provides 12 front 3.5″ U.2/U.3 NVMe bays, 2 rear SATA bays, and dual redundant Titanium/Platinum PSUs for superior reliability. Integrated ASMB11-iKVM and ASUS Control Center Classic enable streamlined IT management.
This rack-optimized single-socket platform delivers an ideal balance of performance, density, and energy efficiency for modern server environments.
| Category | Specification |
|---|---|
| Model | ASUS RS520A-E12-RS12U-16W1G2.5R |
| Form Factor | 2U Rack-mount Server |
| Processor Support | 1 × AMD EPYC™ 9004 Series (up to 400 W, Socket SP5 LGA 6096) |
| Chipset / SoC | AMD EPYC System-on-Chip (SoC) |
| Memory Support | 24 × DDR5 4800 RDIMM / LRDIMM / 3DS LRDIMM (up to 6144 GB) |
| Memory Channels | 12 channels, 2 DIMM per channel |
| GPU Support | Up to 2 dual-slot GPU cards (FHFL) |
| Expansion Slots | Up to 5 × PCIe Gen 5 slots + 1 × OCP 3.0 (Gen 5 ×16 link) |
| Storage Bays | Front: 12 × 3.5″ U.2/U.3 NVMe/SATA/SAS hot-swap bays Rear: 2 × 2.5″ SATA hot-swap bays M.2: 2 × PCIe 4.0 ×4 or SATA (22110 module) |
| RAID / HBA Options | Broadcom MegaRAID 9560-16i / ASUS PIKE II 3008 (8-port SAS HBA) |
| Networking | 2 × 1 GbE RJ-45 (Intel I350-AM2) 1 × Dedicated Management LAN Optional OCP 10 GbE Card |
| Graphics | ASPEED AST2600 (64 MB DDR4 VRAM) |
| Front I/O | 2 × USB 3.2 Gen 1 ports |

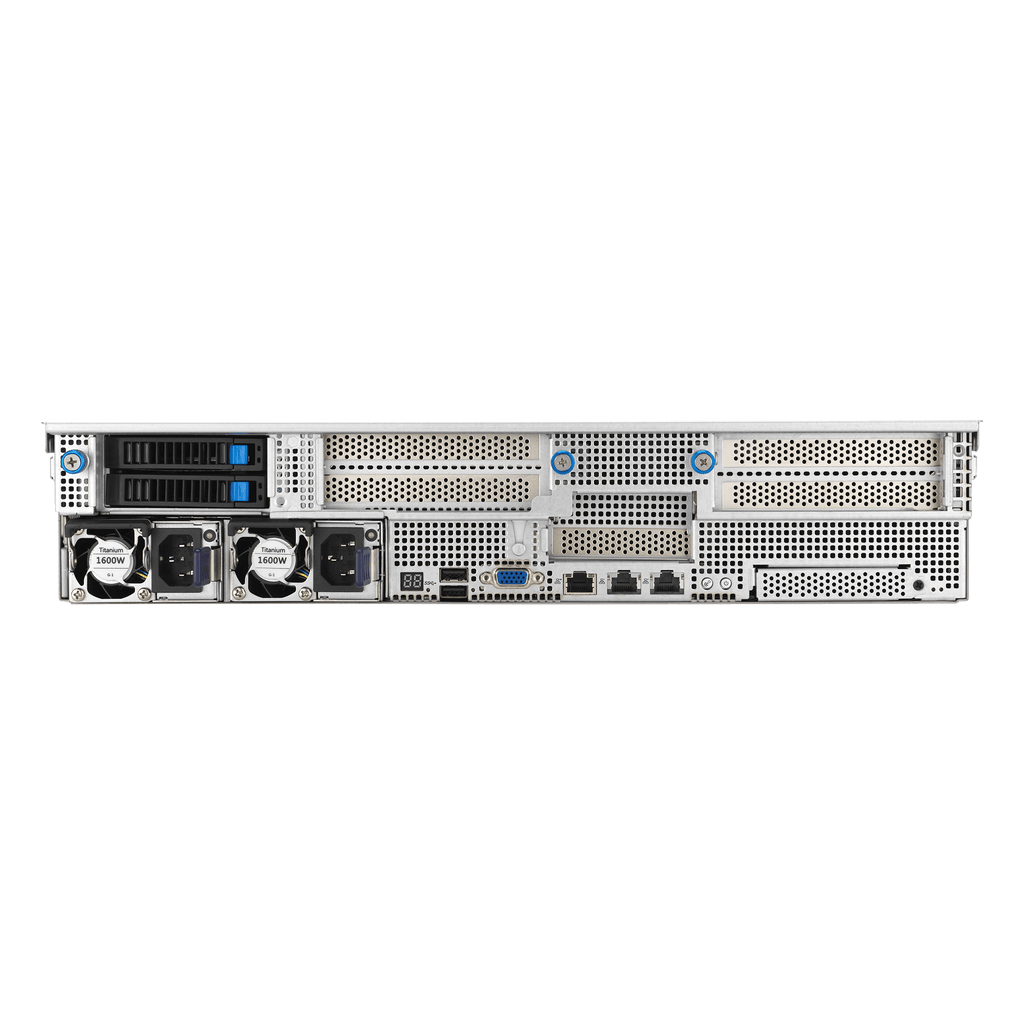

| Rear I/O | 2 × USB 3.2 Gen 1, 1 × VGA, 2 × RJ-45 GbE, 1 × Management LAN |
| Management | ASUS Control Center (Classic) / ASMB11-iKVM (KVM-over-IP) |
| Power Supply | 1 + 1 Redundant 1200 W / 1600 W Platinum or 1600 W Titanium PSUs |
| Cooling | Optional 4 × Redundant Fans |
| Dimensions | 840 × 449 × 88.1 mm (2U) / 33.07″ × 17.68″ × 3.47″ |
| Weight | Net: 17.95 kg / Gross: 25.14 kg |
| Operating Temperature | 10 °C – 35 °C |
| Non-Operating Temperature | −40 °C – 70 °C (20 % – 90 % non-condensing humidity) |
| Target Applications | Data Centers, Enterprise Storage, Virtualization, AI Compute |
