Description

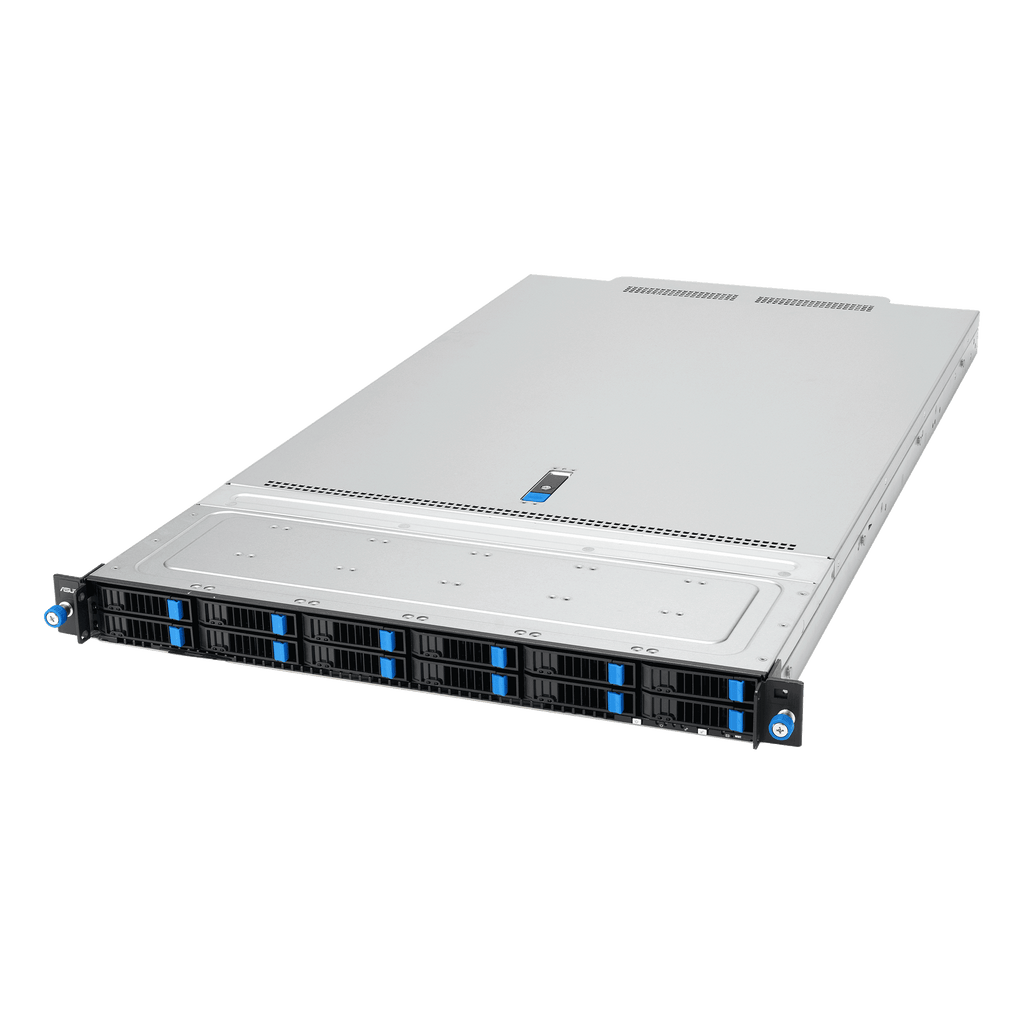

The ASUS RS700-E12-RS12U-2KW10G is a high-density 1U rackmount server engineered for next-generation data centers, HPC, and enterprise workloads. Powered by dual Intel® Xeon® 6 Scalable processors (Sierra Forest and Granite Rapids), it supports up to 32 DDR5 DIMM slots with speeds up to 8000 MHz for outstanding compute performance and memory bandwidth.
Built on the DC-MHS modular architecture, the RS700-E12 delivers exceptional scalability with 12 front-facing hot-swap bays supporting NVMe, SATA, or SAS drives. With PCIe 5.0 expansion, dual M.2 slots, and redundant 2000W Titanium/Platinum power supplies, it’s designed for flexibility, performance, and reliability in demanding enterprise environments.
Enhanced with ASMB12-iKVM remote management, TPM 2.0 security, and ASUS Control Center, this server offers total control and security across all operations.
| Category | Specification |
|---|---|
| Model | ASUS RS700-E12-RS12U-2KW10G |
| Form Factor | 1U Rackmount Server |
| Processor Support | Dual Intel® Xeon® 6 Scalable Processors (Sierra Forest / Granite Rapids) |
| CPU TDP | Up to 350W |
| Memory Slots | 32x DDR5 DIMM (16 per CPU, 8-channel per CPU) |
| Memory Capacity | Up to 4TB |
| Memory Type | DDR5 6400/5600 RDIMM or 8000 MHz MRDIMM (1DPC) |
| Storage Bays | 12 x 2.5” Hot-Swap Bays (NVMe/SATA/SAS) |
| M.2 Slots | 2 x M.2 (PCIe Gen2 x2 link) |
| Expansion Slots | Up to 4 PCIe Slots (2x PCIe Gen5 x16, 2x OCP 3.0) |
| Graphics | ASPEED AST2600 with 64MB VRAM |
| Networking | 1 x Dedicated Management Port |
| Front I/O Ports | 2 x USB 3.2 Gen1 |
| Rear I/O Ports | 2 x USB 3.2 Gen1, 1 x Mini DisplayPort, 1 x RJ45 Mgmt LAN, 1 x USB-C |
| Management | ASUS Control Center (Classic), ASMB12-iKVM (KVM-over-IP) |
| Security | TPM 2.0, PFR FPGA Root-of-Trust |
| Power Supply | 1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU |
| Dimensions (W x H x D) | 449 x 43.85 x 800 mm (17.68" x 1.73" x 31.5") |
| Net Weight | 13.7 kg |
| Gross Weight | 22.56 kg |
| Operating Temperature | 10°C – 35°C |
| Non-Operating Temperature | -40°C – 70°C |
| Humidity (Non-condensing) | 20% – 90% |
| Architecture | DC-MHS Modular & Scalable Design |
| Compliance | Trusted Platform Module 2.0, Firmware Resiliency |
