Description

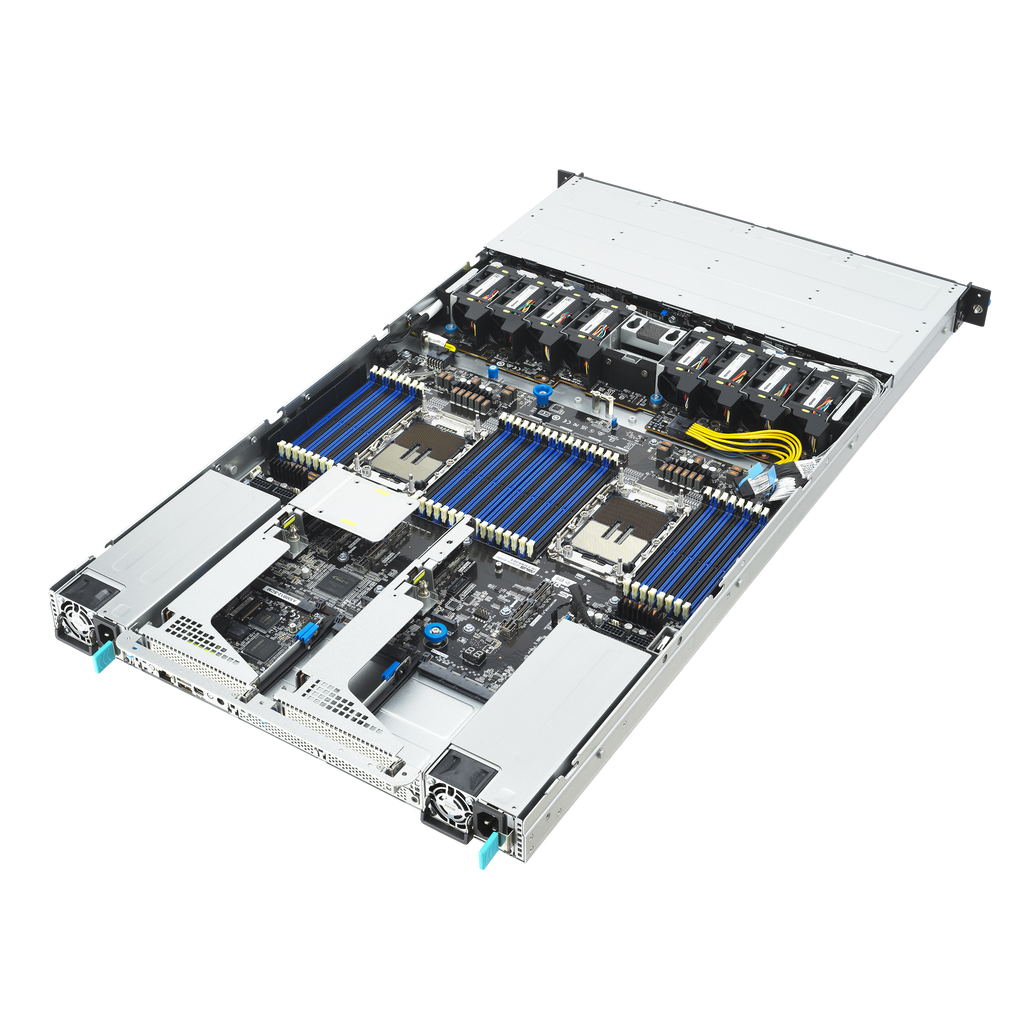

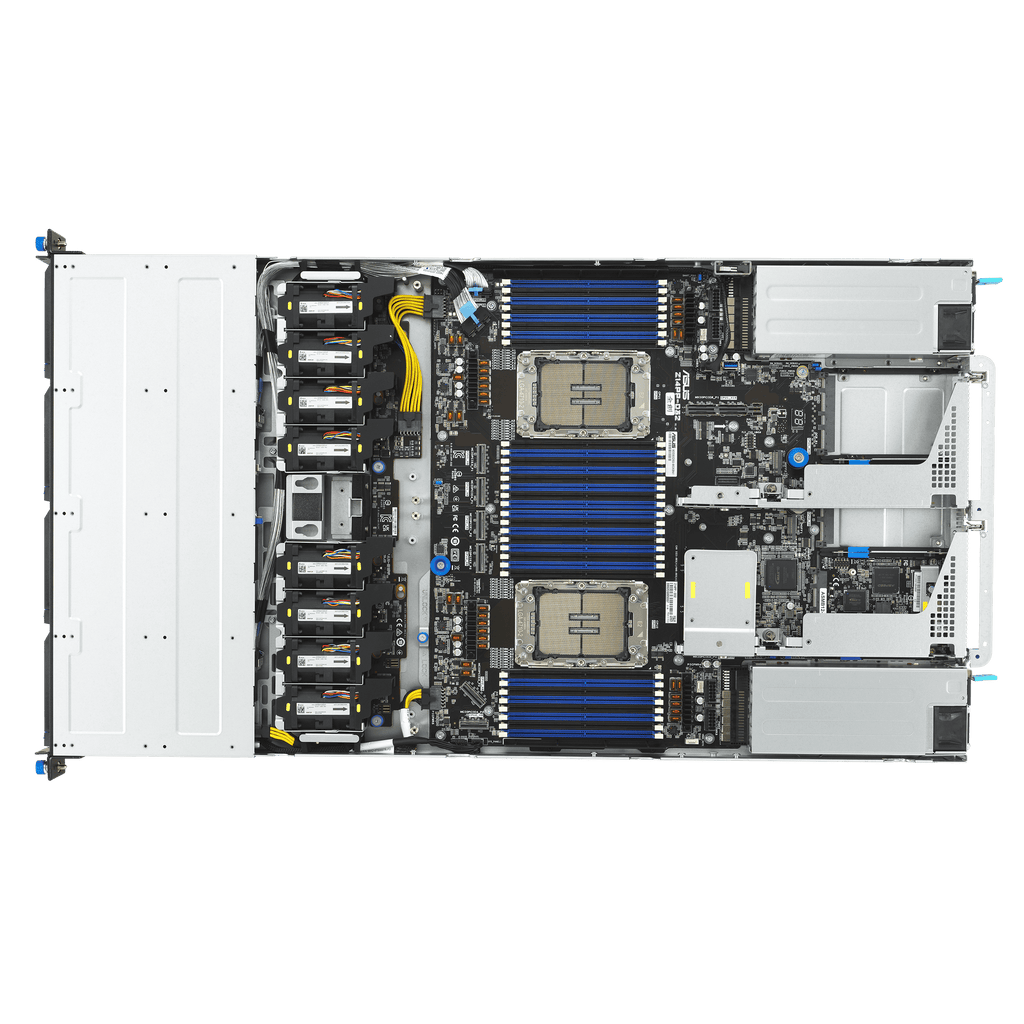

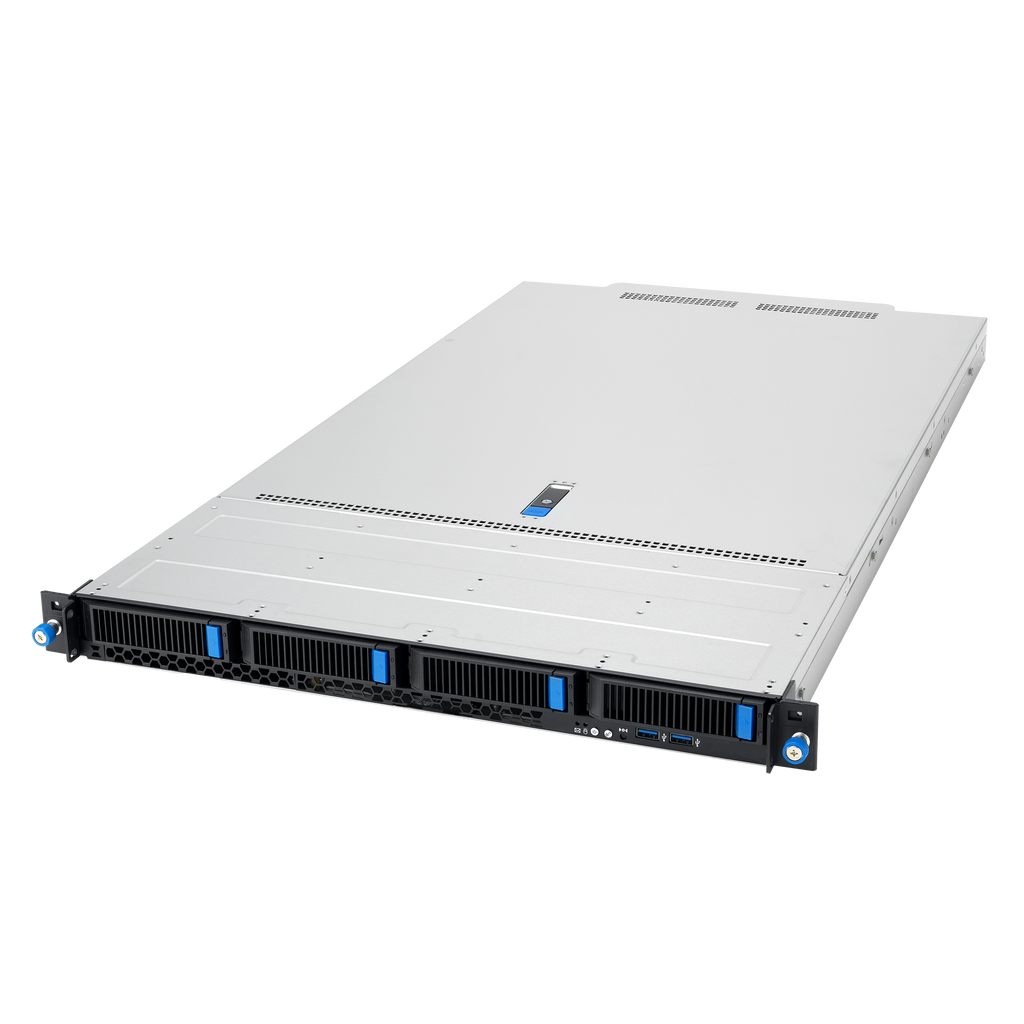

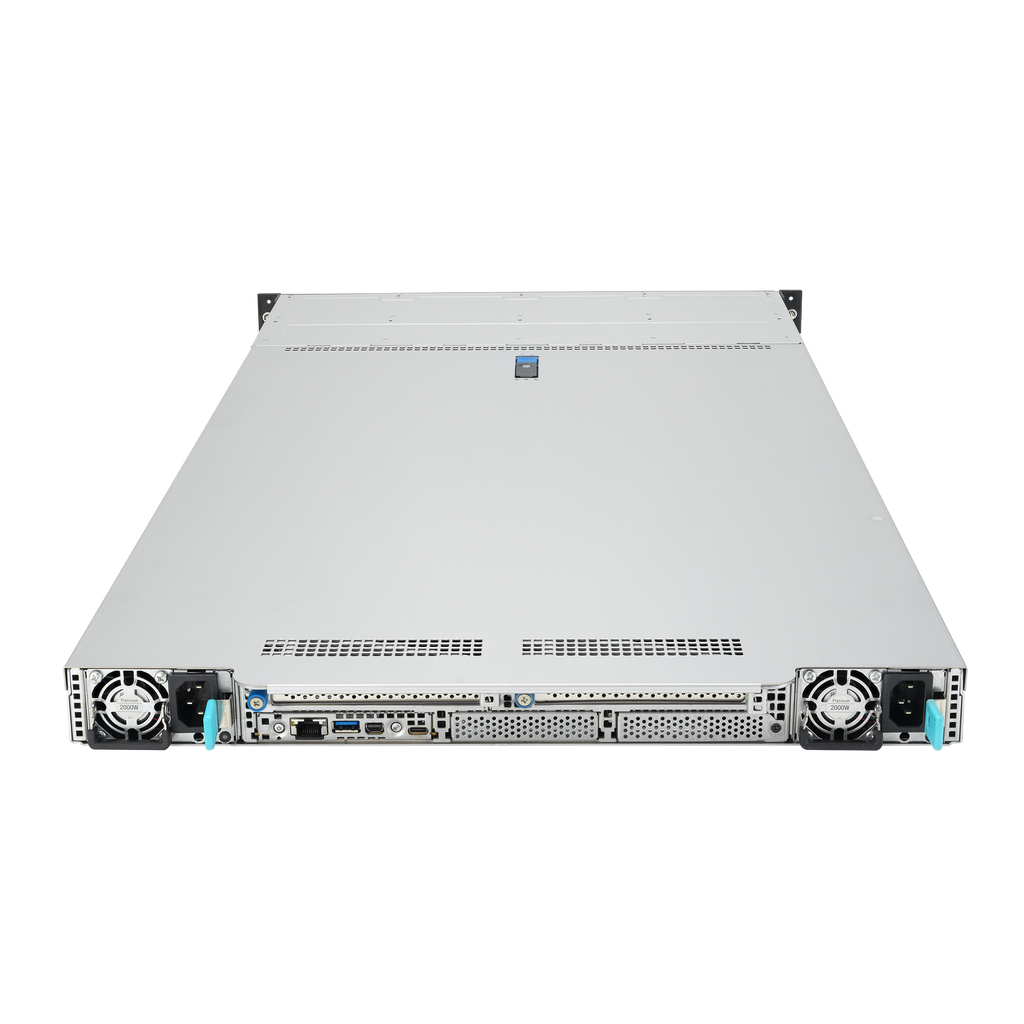

The ASUS RS700-E12-RS4U is a high-performance 1U rack server built on the Intel Xeon 6 Scalable Processor platform, engineered to deliver exceptional computing density and energy efficiency for modern data centers. Supporting up to 32 DDR5 DIMMs (up to 4TB) and powered by dual Intel Xeon 6700 or upcoming P-core processors, this server ensures ultra-fast bandwidth and reduced latency for compute-intensive workloads.
Designed under the DC-MHS modular architecture, it provides superior scalability with four PCIe 5.0 slots, dual OCP 3.0 expansion, and dual M.2 NVMe slots for flexible high-speed storage. The chassis supports 4× 3.5” hot-swap bays (SATA/SAS/NVMe) and optional RAID/HBA controllers for versatile storage configurations.
Integrated ASMB12-iKVM management with ASUS Control Center ensures seamless remote monitoring and control, while PFR FPGA Root-of-Trust and TPM 2.0 strengthen platform security. Its 1+1 redundant 2000W Titanium/Platinum PSU ensures uninterrupted uptime, making the RS700-E12-RS4U ideal for cloud infrastructure, virtualization, and enterprise computing environments.
| Category | Specification |
|---|---|
| Model | ASUS RS700-E12-RS4U |
| Form Factor | 1U Rackmount Server |
| Processor Support | Dual Intel® Xeon® 6 Scalable Processors (Sierra Forest / Granite Rapids) |
| CPU TDP | Up to 350W |
| Memory Slots | 32× DDR5 DIMMs (16 per CPU, 8-channel each) |
| Memory Capacity | Up to 4TB DDR5 6400/5600 RDIMM or 8000MHz MRDIMM (1DPC) |
| Expansion Slots | 4× PCIe 5.0 (2× x16 FHHL, 2× OCP 3.0) |
| Storage Bays | 4× 3.5” Hot-Swap Bays (NVMe/SATA/SAS*)*HBA/RAID card required for SATA/SAS support |
| M.2 Slots | 2× M.2 PCIe Gen2 x2 (22110) |
| Supported Controllers | ASUS PIKE II 3008-8i / 3108-8i, Broadcom MegaRAID / HBA 9500–9670 Series |
| Graphics | ASPEED AST2600 (64MB) |
| Networking | 1× RJ-45 Management Port |
| Front I/O | 2× USB 3.2 Gen1 Ports |
| Rear I/O | 2× USB 3.2 Gen1, 1× Mini-DP, 1× RJ-45 Mgmt LAN, 1× USB-C |
| Management | ASUS Control Center (Classic), ASMB12-iKVM (KVM-over-IP) |
| Security | PFR FPGA Root-of-Trust, TPM 2.0 |
| Power Supply | 1+1 Redundant 80 PLUS Titanium/Platinum 2000W PSU |
| Dimensions (W×H×D) | 449 × 43.85 × 800 mm (17.68" × 1.73" × 31.5") |
| Net Weight | 13.7 kg (without CPU, DRAM, HDD) |
| Gross Weight | 22.56 kg (with packaging) |
| Operating Temperature | 10°C to 35°C |
| Non-Operating Temperature | -40°C to 70°C |
| Humidity | 20% – 90% (Non-Condensing) |
