Description

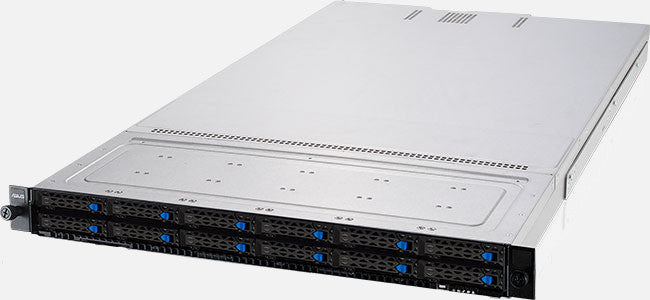

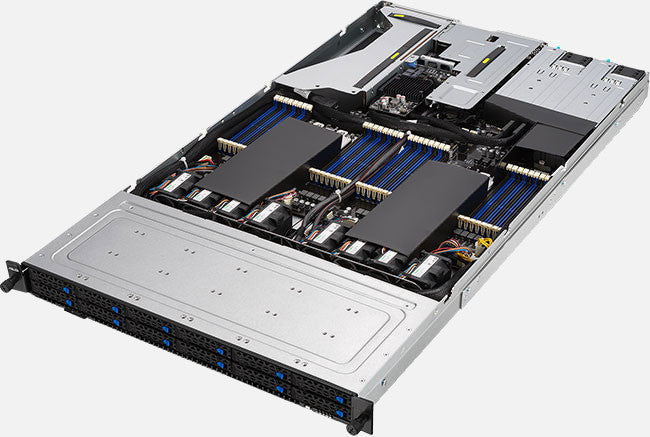

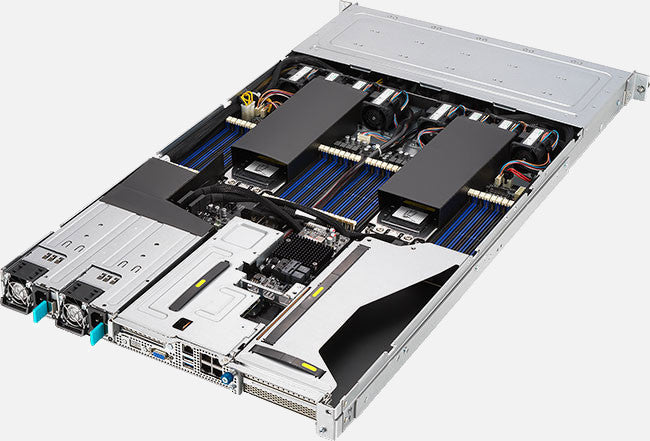

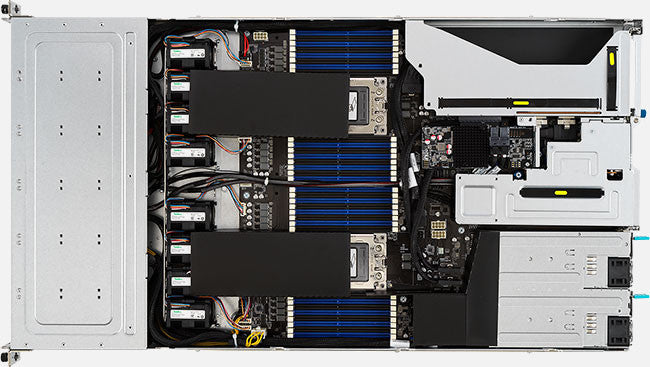

The ASUS RS700A-E11-RS12U is a high-performance 1U dual-socket rack server engineered for compute-intensive workloads and scalable data center operations. Powered by AMD EPYC™ 7003 Series processors with up to 64 cores and 128 threads per socket, it delivers exceptional compute density and energy efficiency. Designed for AI, virtualization, and cloud applications, it supports up to 32 DIMMs of DDR4 memory, 12 front NVMe drives, and three PCIe® 4.0 expansion slots for maximum bandwidth.
The server’s GPU-optimized design accommodates one dual-slot or two single-slot GPUs, making it ideal for AI inference and HPC environments. Its flexible LAN module offers both 1 Gb and 10 Gb options for versatile connectivity, while redundant 1600W 80 Plus Titanium/Platinum power supplies ensure optimal reliability. Integrated ASMB10-iKVM with ASPEED® AST2600 controller provides complete out-of-band server management.
Built for efficiency, scalability, and performance, the RS700A-E11-RS12U is the perfect foundation for demanding enterprise and data center applications.
| Category | Specification |
|---|---|
| Model | ASUS RS700A-E11-RS12U (SKU: RS700A-E11-RS12U-WOCPU009Z) |
| Form Factor | 1U Rackmount Server |
| Processor Support | Dual-socket AMD EPYC™ 7003 Series Processors |
| Processor Socket | Socket SP3 |
| Max Cores / Threads | Up to 64 cores / 128 threads per socket |
| Max TDP | Up to 280W per socket |
| Chipset / Management | ASPEED® AST2600 with ASUS ASMB10-iKVM |
| GPU Support | 1× Dual-slot GPU or 2× Single-slot GPUs |
| Memory Capacity | Up to 4096 GB DDR4-SDRAM |
| Memory Slots | 32× DIMM |
| Memory Channels | Octa-channel per CPU |
| Supported Memory Types | DDR4 ECC RDIMM / LRDIMM (up to 3200 MHz) |
| Storage Support | Up to 12× NVMe drives (front) |
| Expansion Slots | 3× PCIe® 4.0 slots, 1× OCP 3.0 |
| LAN Options | Modular LAN design (4× 1GbE or 2× 10GbE) |
| M.2 Support | 1× M.2 slot (for boot drive) |
| Power Supply | Dual 1600W redundant PSU (80 Plus Titanium/Platinum) |
| Cooling System | Hot-swappable fans, optimized airflow design |

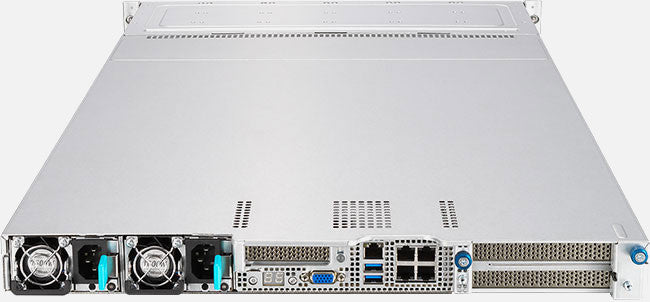

| I/O Ports | 2× USB 3.2 Gen 1, 1× VGA (D-Sub), 1× RJ-45 Mgmt Port |
| Operating Temperature | 10°C – 35°C |
| Storage Temperature | -40°C – 60°C |
| Relative Humidity | 20% – 90% (non-condensing) |
| Dimensions (W×D×H) | 842.5 × 449 × 43.9 mm |
| Weight | 18.9 kg |
| Compliance | 80 Plus Certified Power, RoHS Compliant |
| Ideal For | AI, HPC, Cloud, Virtualization, and Enterprise Workloads |
