Description

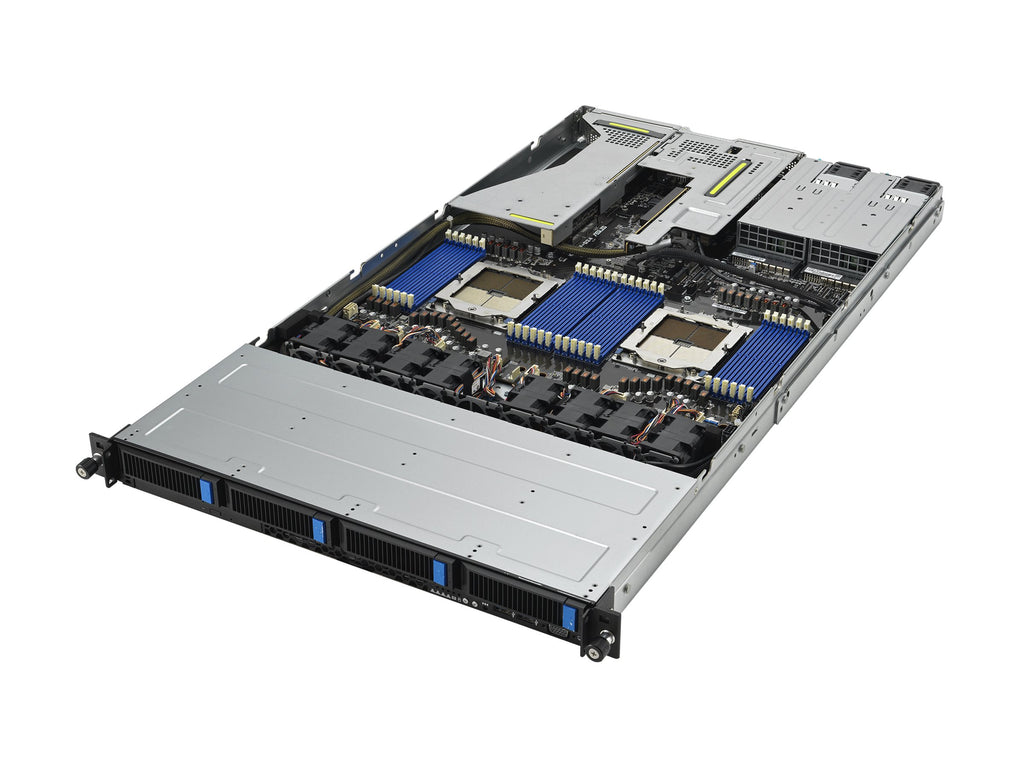

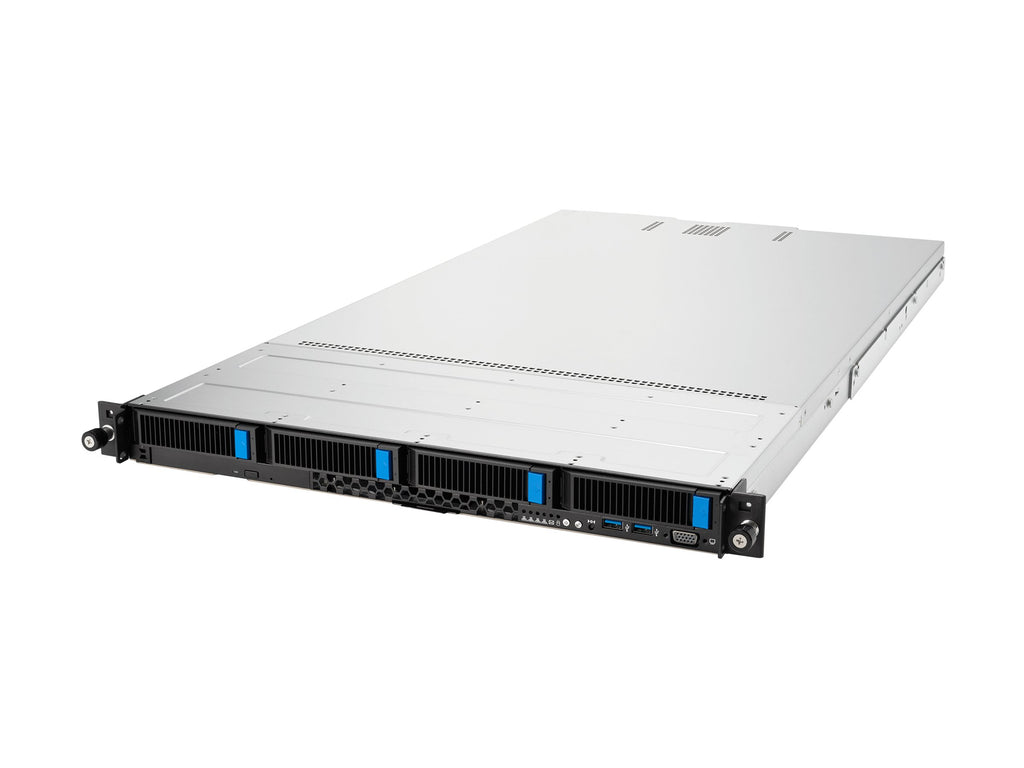

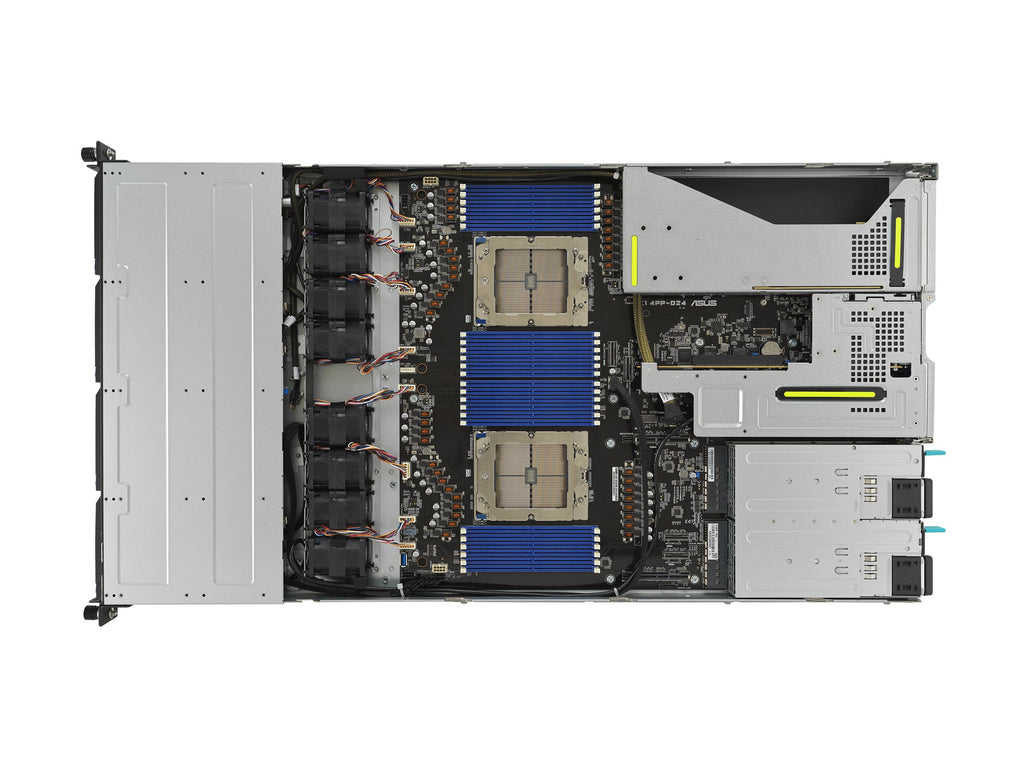

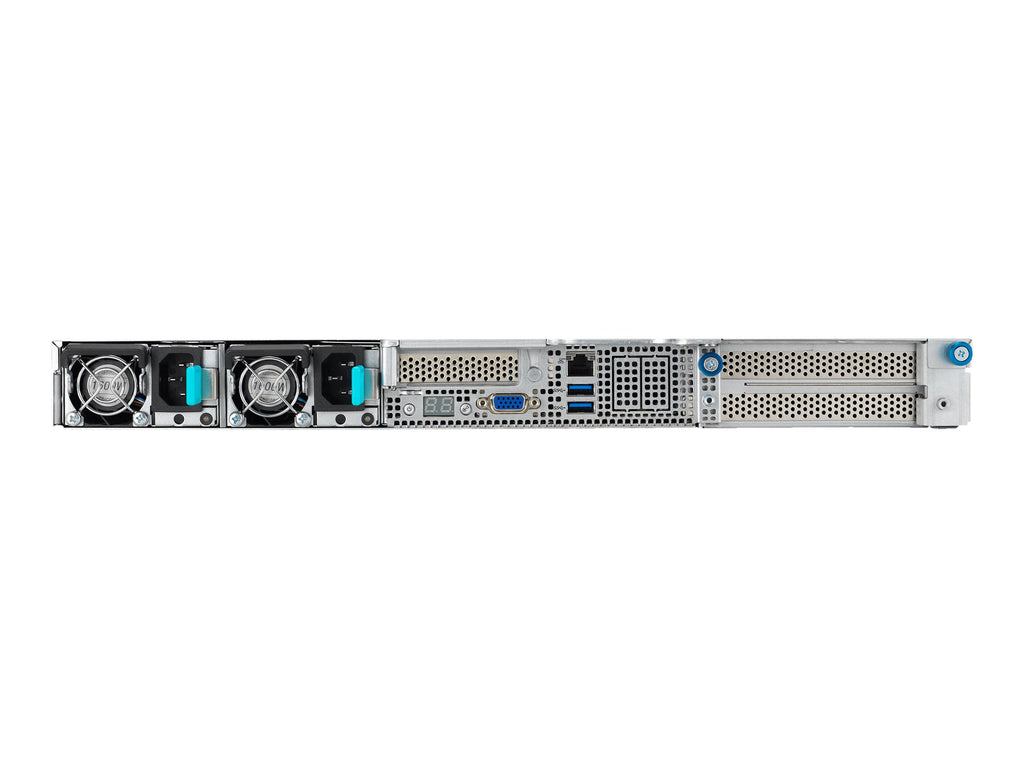

The ASUS RS700A-E12-RS4U-16W10G is a powerful 1U rackmount dual-socket server built for modern data centers and compute-intensive workloads. Powered by the AMD EPYC™ 9004 Series processors on the SP5 socket, it supports up to 24 DDR5 DIMM slots for maximum performance and efficiency. The system offers extensive expansion options with PCIe 5.0 and OCP 3.0 slots, and high-speed 10 Gigabit Ethernet connectivity through Intel® X710 controllers for fast data transfer. Designed for reliability and scalability, the RS700A-E12-RS4U-16W10G features four hot-swap 3.5” drive bays, redundant 1600W 80 PLUS Platinum power supplies, and comprehensive remote management with the ASMB10-iKVM module. Perfect for virtualization, HPC, and cloud deployments, this barebone system combines cutting-edge performance with enterprise-grade manageability.
| Category | Specification |
|---|---|
| Model | ASUS RS700A-E12-RS4U-16W10G |
| Form Factor | Rack-mountable 1U |
| Processor Support | Dual AMD EPYC™ 9004 Series (Socket SP5, up to 400W TDP) |
| Processor Max Quantity | 2 |
| Chipset / Controller | AMD SP5 platform |
| Memory Technology | DDR5 SDRAM |
| Memory Slots | 24 x DIMM (288-pin) |
| Max Memory Capacity | Up to 3072 GB RDIMM |
| Memory Architecture | 12-channel per CPU, 3DS registered support |
| Drive Bays | 4 x 3.5" hot-swap bays (SATA/SAS/PCIe) |
| Storage Controller | 1 x SATA 6Gb/s, 4 channels |
| Expansion Slots | 1 x PCIe 5.0 x16 (full-height), 1 x PCIe 5.0 x16 OCP 3.0 (full-height), 1 x PCIe 5.0 x16 (low-profile), 1 x PCIe 4.0 x8 (low-profile) |
| Graphics Controller | ASPEED AST2600 with 64 MB VRAM |
| Video Interfaces | VGA (front and rear) |
| Network Controller | Intel® X710-AT2 |
| Network Ports | 2 x 10 Gigabit Ethernet (RJ-45) |
| Management | ASMB10-iKVM (remote management with KVM over IP) |
| USB Ports | 4 x USB 3.2 Gen 1 (2 front, 2 rear) |
| Power Supply | 2 x 1600W 80 PLUS Platinum redundant PSU |
| Input Voltage | AC 100-127V / 200-240V, 50/60 Hz |
| Operating Temperature | 10°C – 35°C |
| Compliance Standards | FCC Class A, BSMI, CB, C-Tick certified |
| Dimensions (W x D x H) | 44.9 x 84.25 x 4.385 cm |
| Weight | 13.93 kg (shipping weight: 18.93 kg) |
| Color | Black / Silver |
| Operating System | None (barebone) |
| Included Accessories | ASMB10-iKVM remote management card |
