Description

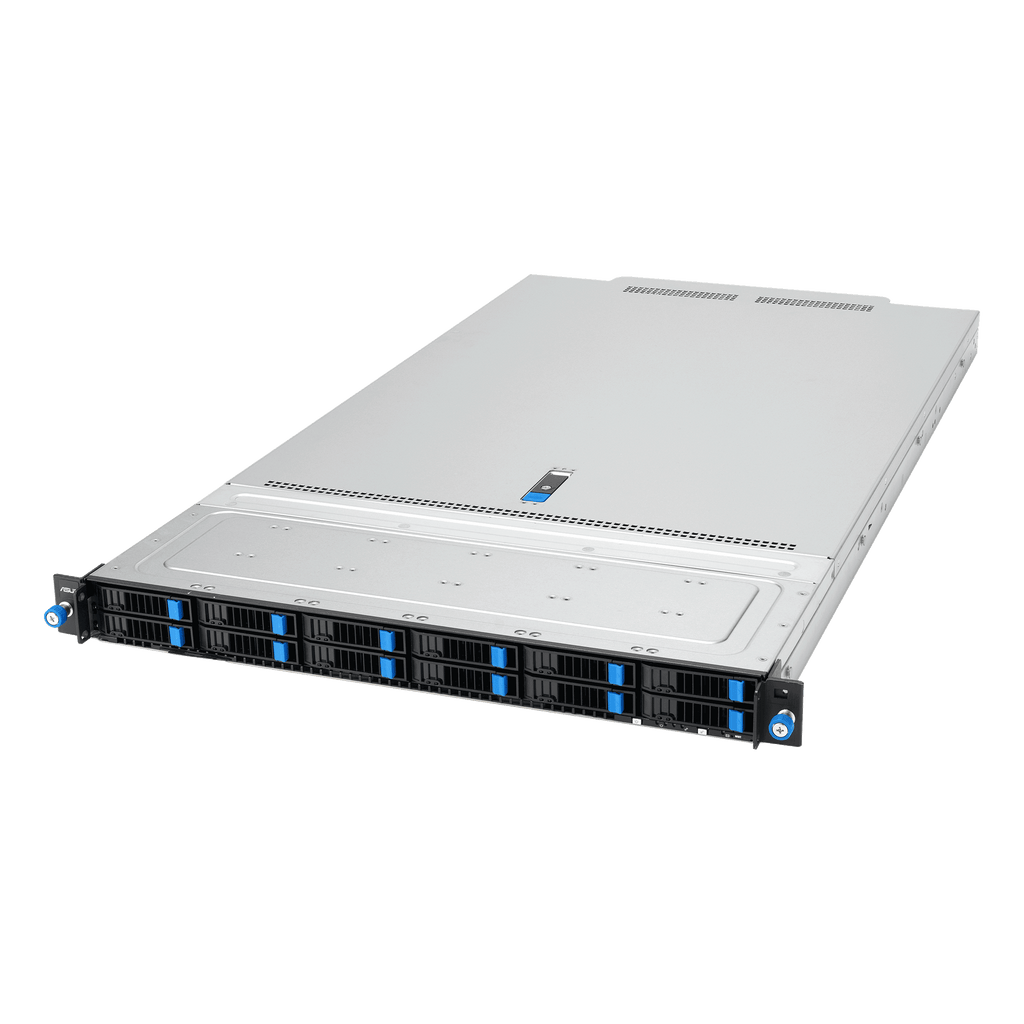

The ASUS RS700A-E13-RS12U-2KW10G is a high-performance 1U rackmount server powered by dual AMD EPYC™ 9005 series processors, delivering exceptional compute density and scalability for modern data centers. Designed with the latest DC-MHS modular architecture, it ensures seamless integration, flexibility, and optimized performance across diverse IT workloads — from cloud computing to AI-driven environments.
With support for up to 24 DDR5 RDIMM slots (up to 3TB, 6400/5600 MHz) and 12 hot-swappable 2.5” bays for NVMe/SATA/SAS drives, this system provides outstanding memory and storage expandability. The server includes 4 Gen5 expansion slots, dual M.2 22110 slots, and 1+1 redundant 2000W 80 PLUS Titanium/Platinum power supplies, ensuring both versatility and reliability.
Advanced management is enabled through ASMB12-iKVM and ASUS Control Center (Classic) for comprehensive remote monitoring. Built with PFR FPGA Root-of-Trust and TPM 2.0 for enhanced firmware and hardware security, the RS700A-E13-RS12U offers enterprise-grade protection and performance in a compact 1U chassis.
| Category | Specification |
|---|---|
| Model | ASUS RS700A-E13-RS12U-2KW10G |
| Form Factor | 1U Rackmount Server |
| Processor Support | 2 × AMD EPYC™ 9005 Series Processors (up to 400W TDP per CPU) |
| Chipset / Core Logic | Integrated I/O (No chipset) |
| Memory Support | 24 × DDR5 RDIMM slots (12 per CPU), up to 3TB total |
| Memory Speed | DDR5 6400 / 5600 MHz, 1DPC |
| Memory Type | DDR5 RDIMM 128GB / 96GB / 64GB / 32GB / 16GB |
| Storage Bays | 12 × 2.5" hot-swappable bays (support NVMe/SATA/SAS)* |
| Optional RAID / HBA Cards | Broadcom HBA 9500-16i; Broadcom MegaRAID 95XX/96XX Series |
| M.2 Slots | 2 × DIMM.2 (Gen3 x4, up to 22110) |
| Expansion Slots | 4 × Gen5 x16 total (2 × PCIe Gen5 x16 FHHL, 2 × OCP3.0 Gen5 x16) |
| Graphics | ASPEED AST2600 (64MB) |
| Networking | 1 × RJ-45 Management LAN Port |
| Front I/O Ports | 2 × USB 3.2 Gen1 ports |

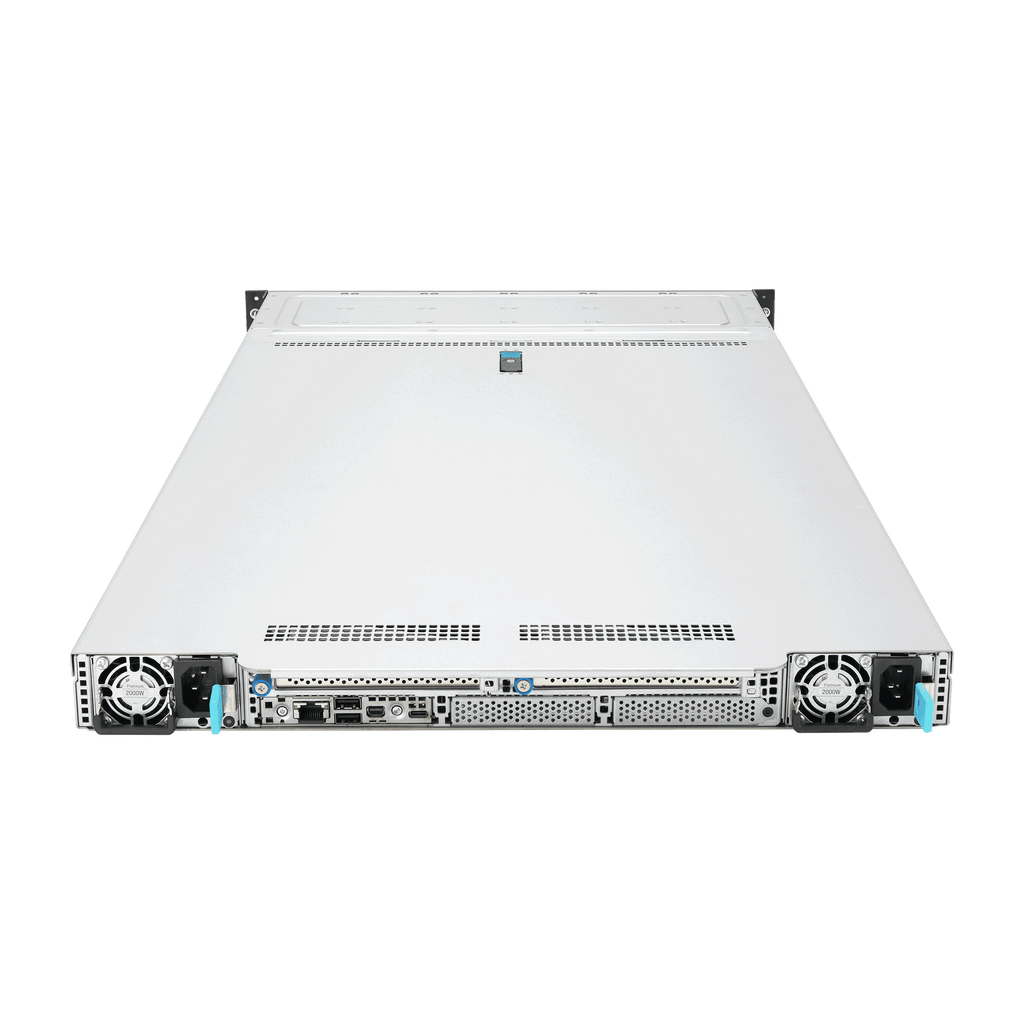

| Rear I/O Ports | 2 × USB 3.2 Gen1 ports, 1 × Mini-DP, 1 × RJ-45 Mgmt LAN, 1 × Debug Port |
| System Management | ASUS Control Center (Classic), ASMB12-iKVM (KVM-over-IP) |
| Security | PFR FPGA Root-of-Trust, TPM 2.0 |
| Power Supply | 1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU |
| Cooling | 8 × Hot-swap tool-less fan modules |
| Dimensions (W × H × D) | 449 × 43.85 × 800 mm (17.68 × 1.73 × 31.5 in) |
| Net Weight | 13.81 kg (CPU, DRAM & HDD not included) |
| Gross Weight | 16.71 kg (packing included) |
| Operating Temperature | 10°C – 35°C |
| Non-Operating Temperature | -40°C – 70°C |
| Humidity (Non-Condensing) | 20% – 90% |
| Compliance | 80 PLUS Titanium / Platinum Certified PSU |
| Architecture | DC-MHS modular design for flexible data center deployment |
