Description
The ASUS RS700A-E13-RS4U is a next-generation 1U rackmount server engineered for maximum scalability and efficiency in modern data centers. Powered by dual AMD EPYC™ 9005 series processors with support for up to 400W TDP per CPU, this system delivers outstanding multi-core performance across diverse workloads — from virtualization and AI to enterprise-level computing.
With 24 DIMM slots supporting up to 3TB of DDR5 memory at 6000 MHz (1DPC), the RS700A-E13-RS4U ensures ultra-fast throughput and memory bandwidth for high-performance applications. It includes four PCIe Gen5 expansion slots, dual M.2 (22110) support, and up to four hot-swap 3.5"/2.5" bays for NVMe/SATA/SAS drives, offering exceptional flexibility and expandability.
Designed under DC-MHS architecture, it provides modular scalability and energy efficiency optimized for next-gen deployments. The system integrates ASUS ASMB12-iKVM remote management, PFR FPGA root-of-trust security, and redundant 2000W 80 PLUS Titanium/Platinum power supplies for superior reliability and operational assurance.
Ideal for data center and enterprise workloads requiring high performance in a compact form factor.
| Category | Specification |
|---|---|
| Model | ASUS RS700A-E13-RS4U |
| Form Factor | 1U Rackmount |
| Processor Support | 2 × AMD EPYC 9005 Series Processors (Up to 400 W TDP) |
| Architecture | DC-MHS Modular Design |
| Memory | 24 × DDR5 DIMM Slots (up to 6000 MHz 1DPC) |
| Max Memory Capacity | Up to 3 TB |
| Memory Type | DDR5 RDIMM 6400/5600 |
| Expansion Slots | 4 × PCIe Gen5 x16 (FHHL and OCP 3.0 x16) |
| Storage Bays | 4 × 3.5" or 2.5" Hot-Swap Bays (Support NVMe/SATA/SAS*) |
| M.2 Support | 2 × DIMM.2 Gen3 x4 (22110/2280/2260) |
| SAS Controller (Optional) | Broadcom HBA 9500-16i / MegaRAID 95XX/96XX Series |
| Networking | 1 × RJ-45 Management Port |
| Graphics | Aspeed AST2600 (64 MB VRAM) |
| Front I/O Ports | 2 × USB 3.2 Gen1 Ports |

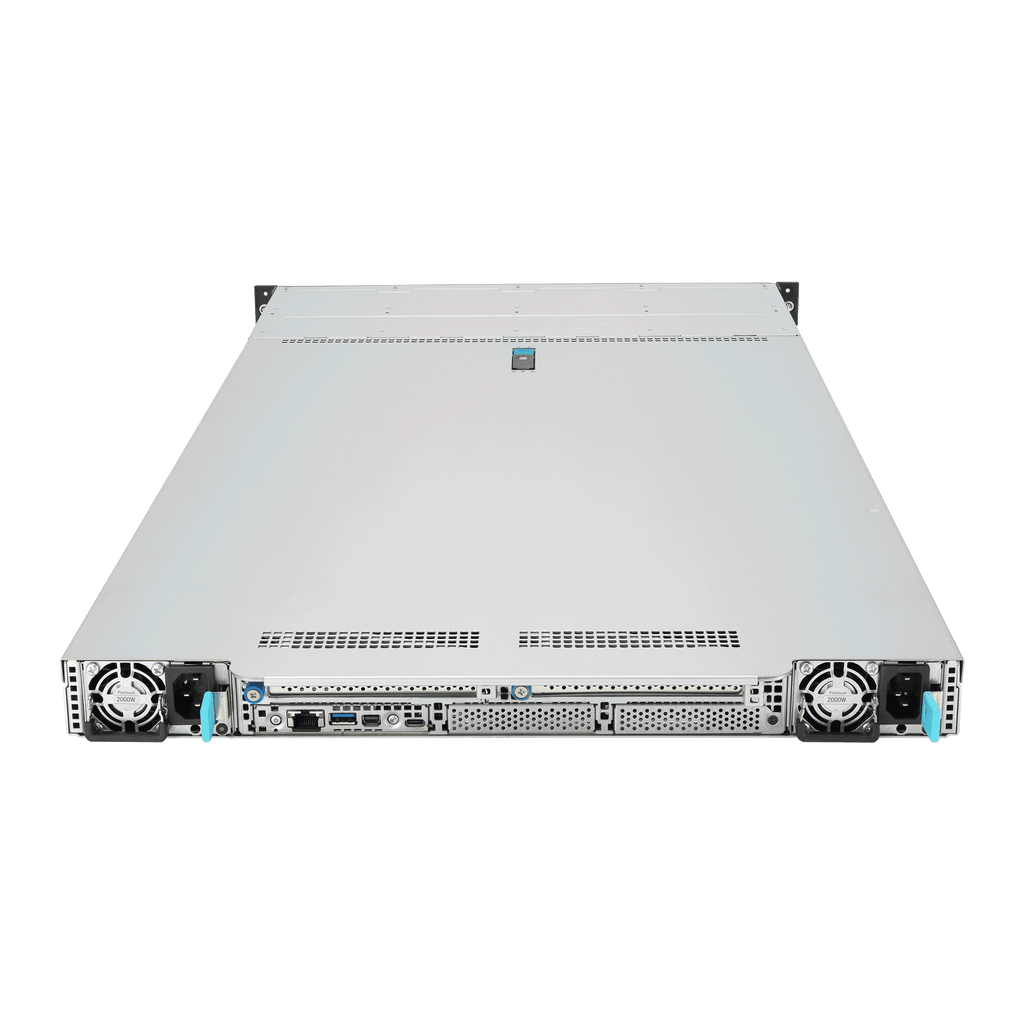

| Rear I/O Ports | 2 × USB 3.2 Gen1, 1 × Mini-DP, 1 × RJ-45 Mgmt LAN, 1 × Debug Port |
| Management | ASUS Control Center (Classic), ASMB12-iKVM (Remote KVM-over-IP) |
| Security | PFR FPGA Root of Trust, TPM 2.0 |
| Power Supply | 1+1 Redundant 2000 W 80 PLUS Titanium/Platinum PSU |
| Dimensions (W × H × D) | 449 × 43.85 × 800 mm (17.68 × 1.73 × 31.5 inches) |
| Net Weight | 13.81 kg (without CPU/DRAM/HDD) |
| Operating Temperature | 10 °C ~ 35 °C |
| Non-Operating Temperature | -40 °C ~ 70 °C |
| Non-Operating Humidity | 20 % ~ 90 % (non-condensing) |
