Description

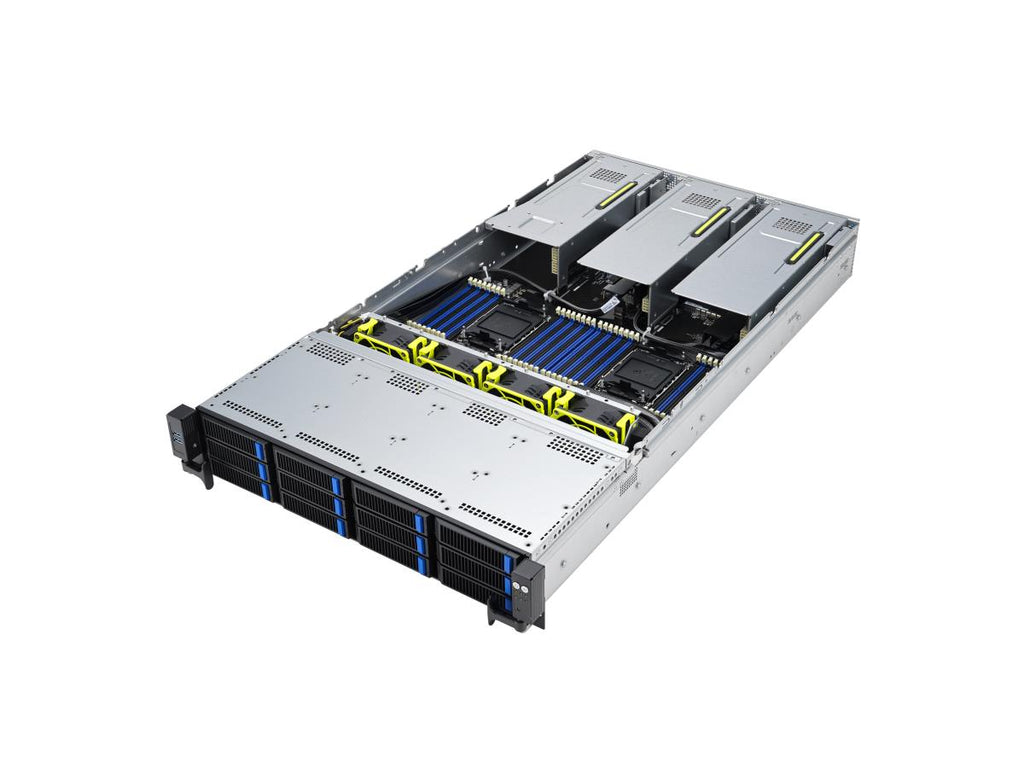

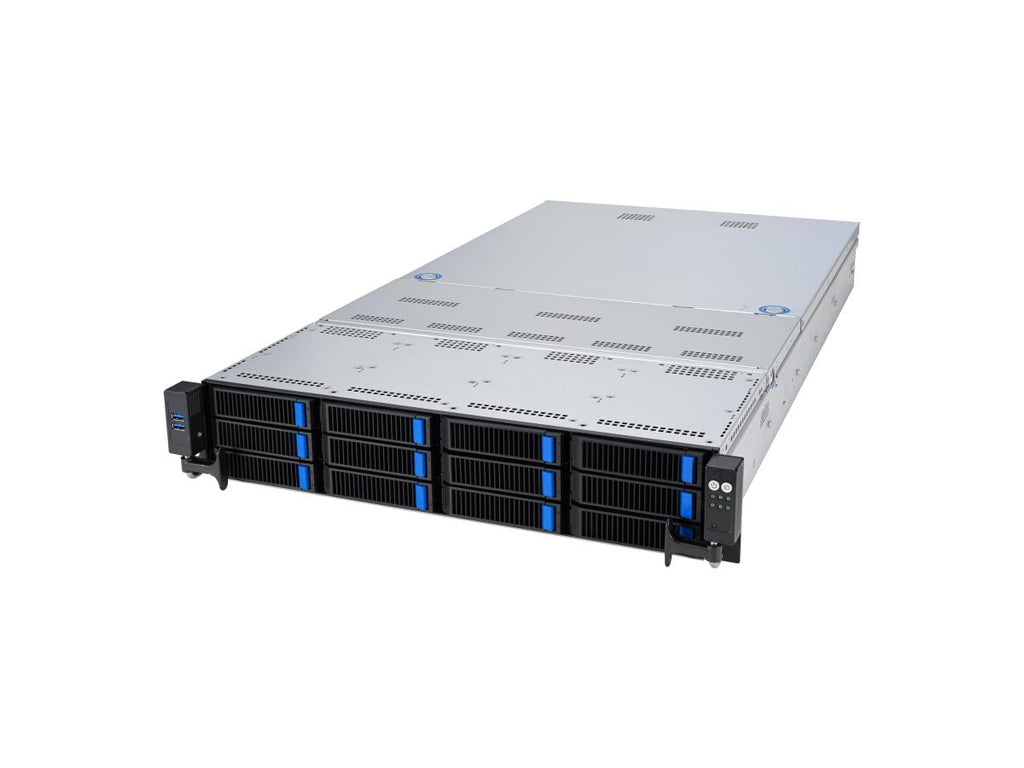

The ASUS RS720-E11-RS12U Server is a high-performance dual-socket 2U rack server engineered for modern data centers, AI inference, and HPC workloads. Powered by 4th Gen Intel® Xeon® Scalable processors and built on the Intel® C741 chipset, it delivers exceptional computing density and power efficiency for enterprise-grade scalability.
With support for up to 12 all-flash NVMe drives and 9 PCIe 5.0 slots, the RS720-E11-RS12U ensures fast data throughput and superior I/O flexibility. Its flexible networking module design enables two 10GbE or four 1GbE onboard LAN options, while an OCP 3.0 slot provides future-ready high-speed connectivity.
Advanced cooling innovations like the Enhanced Volume Air Cooling (EVAC) heatsink maintain optimal thermal performance for high-TDP CPUs and GPUs. Combined with ASUS ASMB11-iKVM management and ASUS Control Center, IT administrators gain comprehensive system monitoring, remote management, and a hardware-level Root-of-Trust solution for secure infrastructure deployment.
Ideal for AI, virtualization, and HPC environments, the RS720-E11-RS12U is built to power next-generation data workloads with efficiency, flexibility, and reliability.
| Category | Specification |
|---|---|
| System Type | Server |
| Model | RS720-E11-RS12U |
| Cabinet Form Factor | 2U Rackmount |
| Processor Type | 4th Gen Intel® Xeon® Scalable |
| Processor Manufacturer | Intel |
| Chipset | Intel® C741 |
| Memory Technology | DDR5 |
| Drive Bays | 12 x 2.5"/3.5" (NVMe / SAS / SATA) |
| Storage Controller | Serial ATA, NVMe, SAS |
| Expansion Slots | Up to 9 slots: 6 x PCIe 5.0 x8 or 3 x PCIe 5.0 x16 (FHFL/FHHL), 1 x PCIe 5.0 x16 (FHHL), 1 x OCP 3.0 PCIe 5.0 x16 (FHHL), 1 x PCIe 5.0 x16 LP |
| GPU Support | Up to 4 dual-slot GPUs (NVIDIA A100 / Intel Data Center GPU Flex) |
| Networking Options | Optional 2 x 10GbE or 4 x 1GbE onboard LAN + 1 x OCP 3.0 slot |
| Interfaces | 2 x USB 3.2 Gen1 (front), 2 x USB 3.2 Gen1 (rear), 1 x VGA, 1 x RJ-45 Management LAN |
| Management | ASUS ASMB11-iKVM (ASPEED AST2600), ASUS Control Center, Root-of-Trust security |
| Cooling Solution | Enhanced Volume Air Cooling (EVAC) heatsink |
| Power Supply | 2.6KW Redundant PSU |
| Dimensions (W x D x H) | 840 x 447 x 88 mm |
| TAA Compliance | No |
| Country of Origin | China |
| UNSPSC Code | 43211502 |
